Home
/
spareparts
Spare parts
120068M

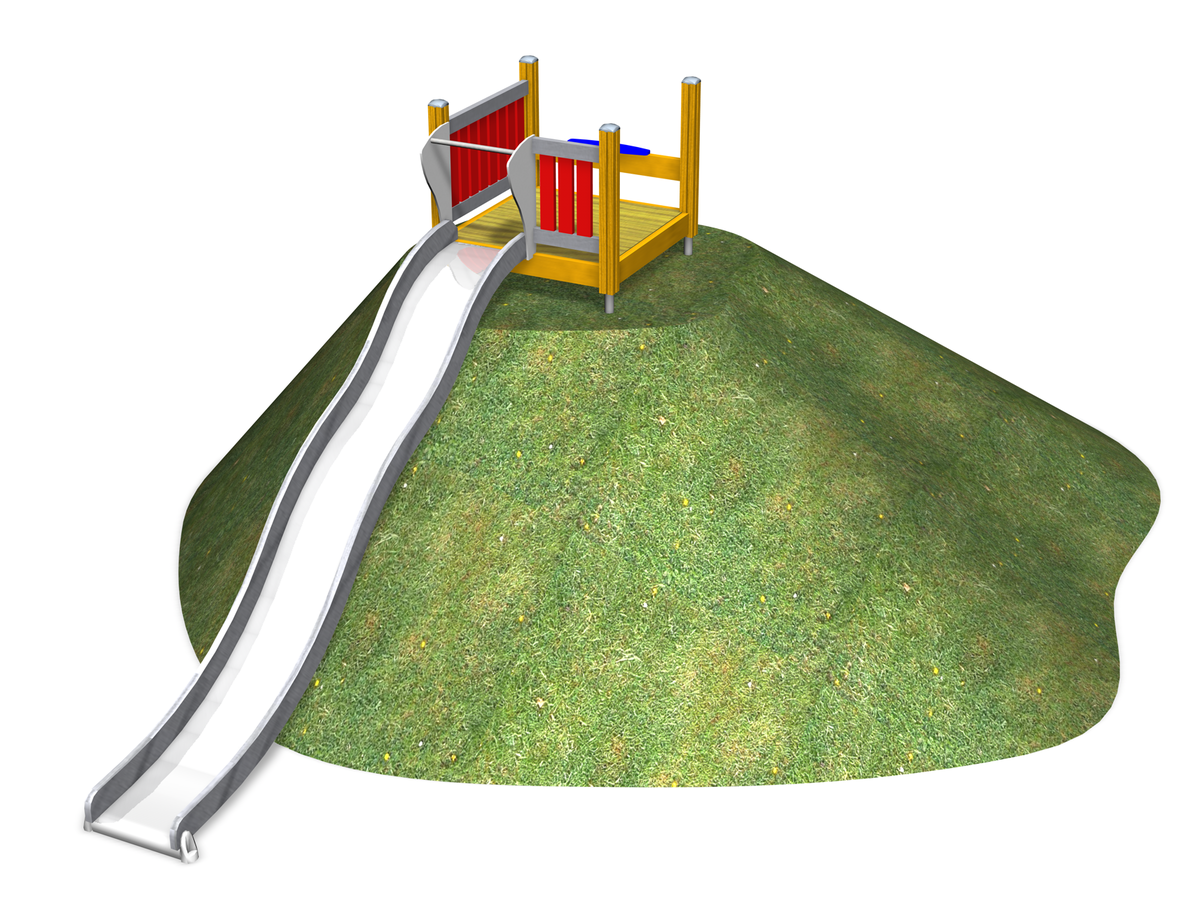

EMBANKMENT SLIDE +2070
Downloads
Spare parts
Downloads
Technical information
Spare part sets
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
701052
706453-701SP
STEP 15x145x600 BLUE
701413
POST, 95x95x1050 YELLOW
701413
POST, 95x95x1050 YELLOW
706466-603
POST 93x93x1025 BROWN
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701557
003880SP
FLOOR 120M
701672
701448-604SP
SLIDE ELEMENT +2070 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702572
702572SP
HANDRAIL 120M SLIDE GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003786
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
[EN817] (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SIDE VIEW 120068M (.dwg)
TOP VIEW 120068M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1000
Impact area, m²
34.4

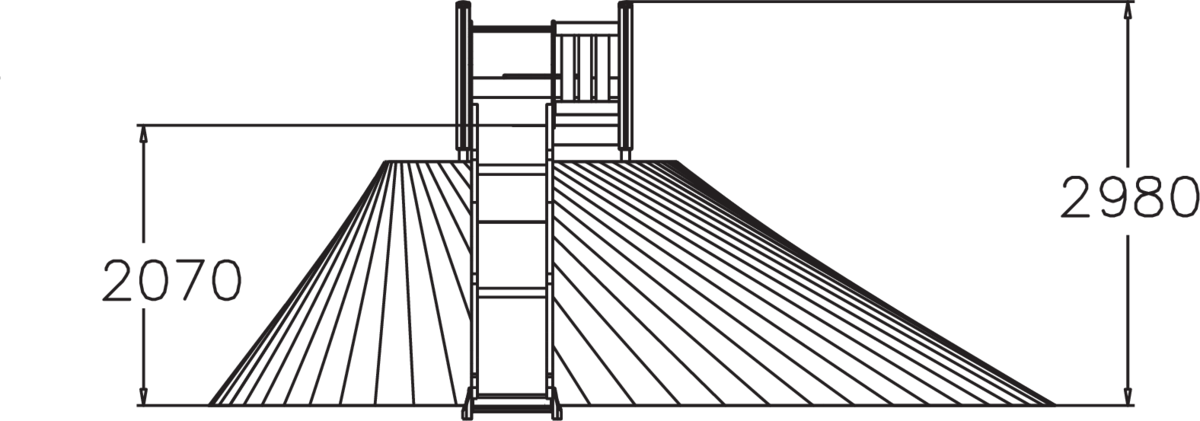

Product height, mm
2980
Product lenght, mm
5280
Product width, mm
1300
Height required, mm
3870

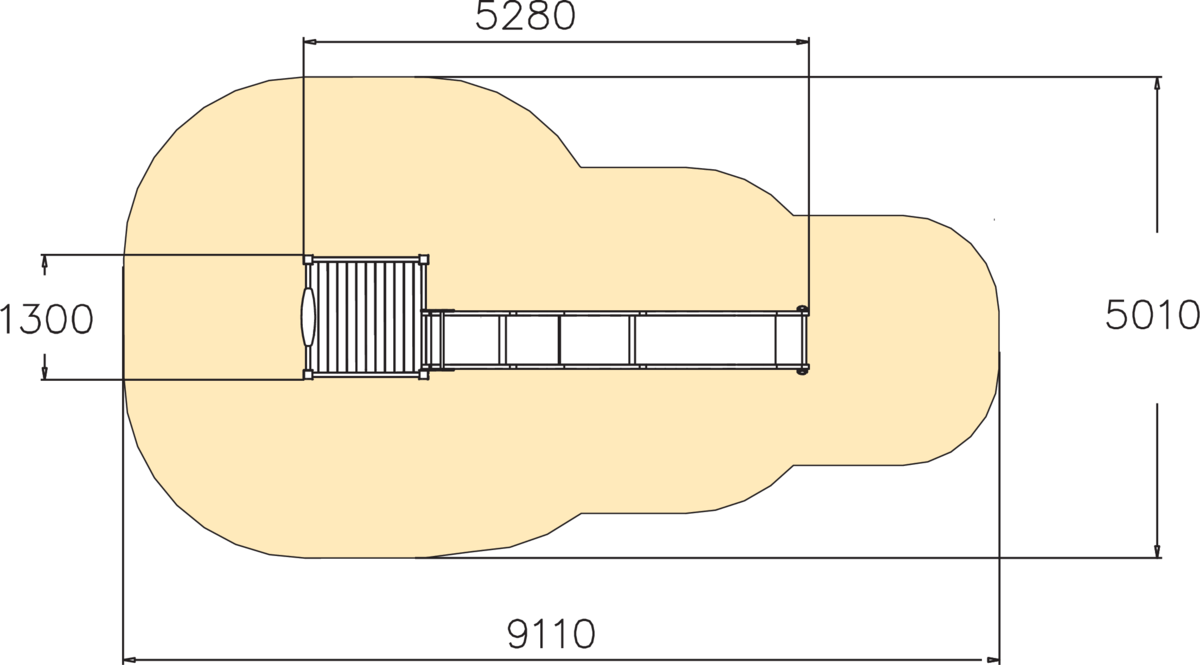

IMPACT AREA LENGTH, MM
9110
IMPACT AREA WIDTH, MM
5010
