Home
/
spareparts
Spare parts
120067M

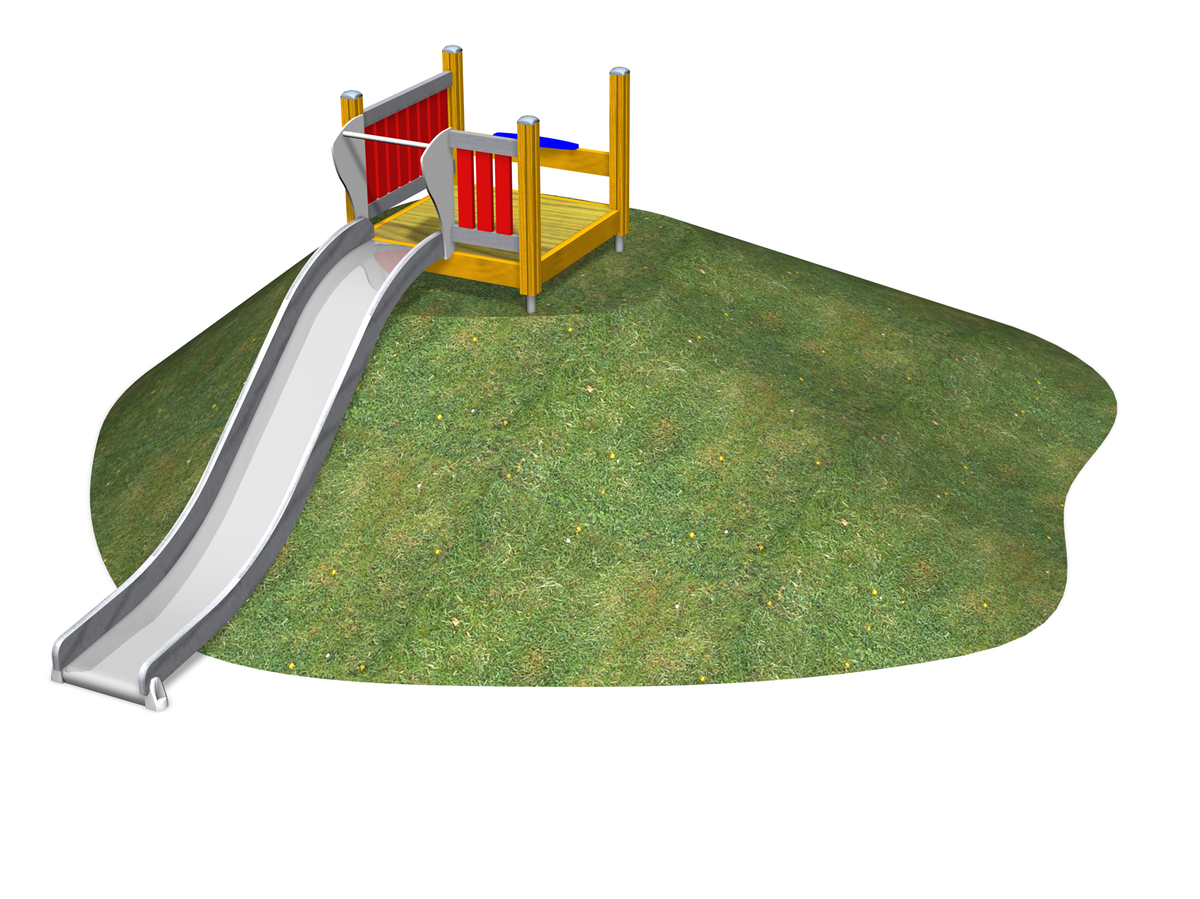

EMBANKMENT SLIDE +1470
Downloads
Spare parts
Downloads
Technical information
Spare part sets
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
701052
706453-701SP
STEP 15x145x600 BLUE
701413
POST, 95x95x1050 YELLOW
706466-603
POST 93x93x1025 BROWN
701413
POST, 95x95x1050 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701557
003880SP
FLOOR 120M
702572
702572SP
HANDRAIL 120M SLIDE GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
Downloads
[EN817] (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SIDE VIEW 120067M (.dwg)
TOP VIEW 120067M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1000

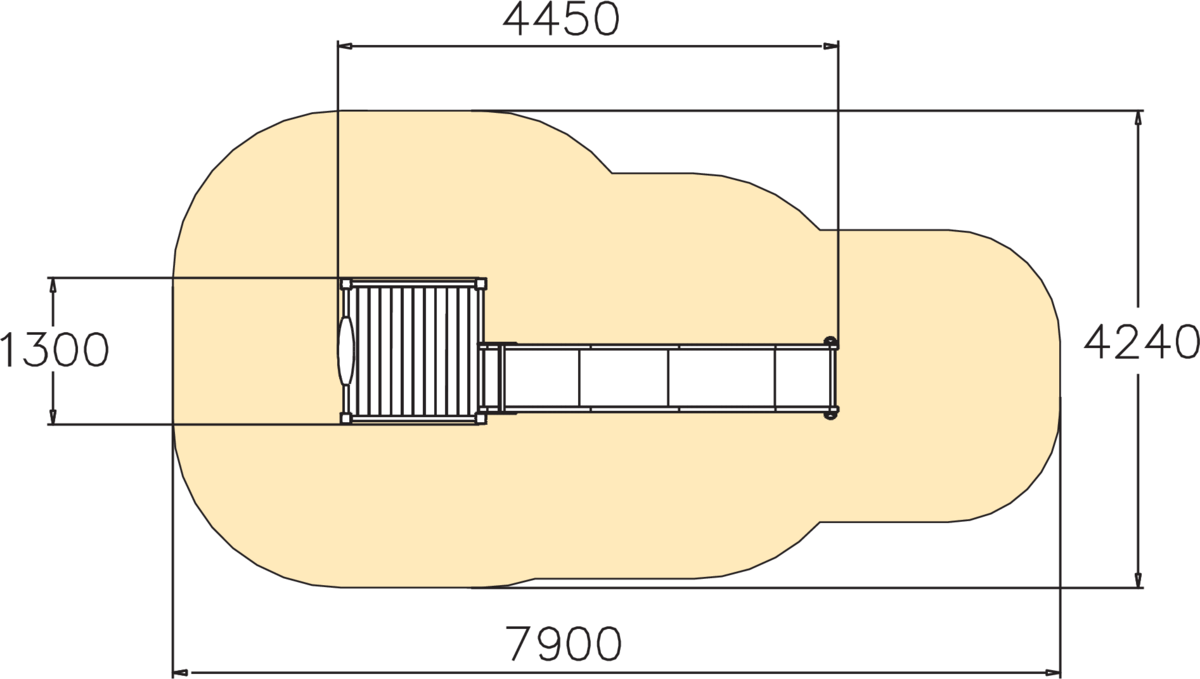

Impact area, m²
26.8
Product height, mm
2380
Product lenght, mm
4450
Product width, mm
1300
Height required, mm
3270
IMPACT AREA LENGTH, MM
7900
IMPACT AREA WIDTH, MM
4240
