Home
/
spareparts
Spare parts

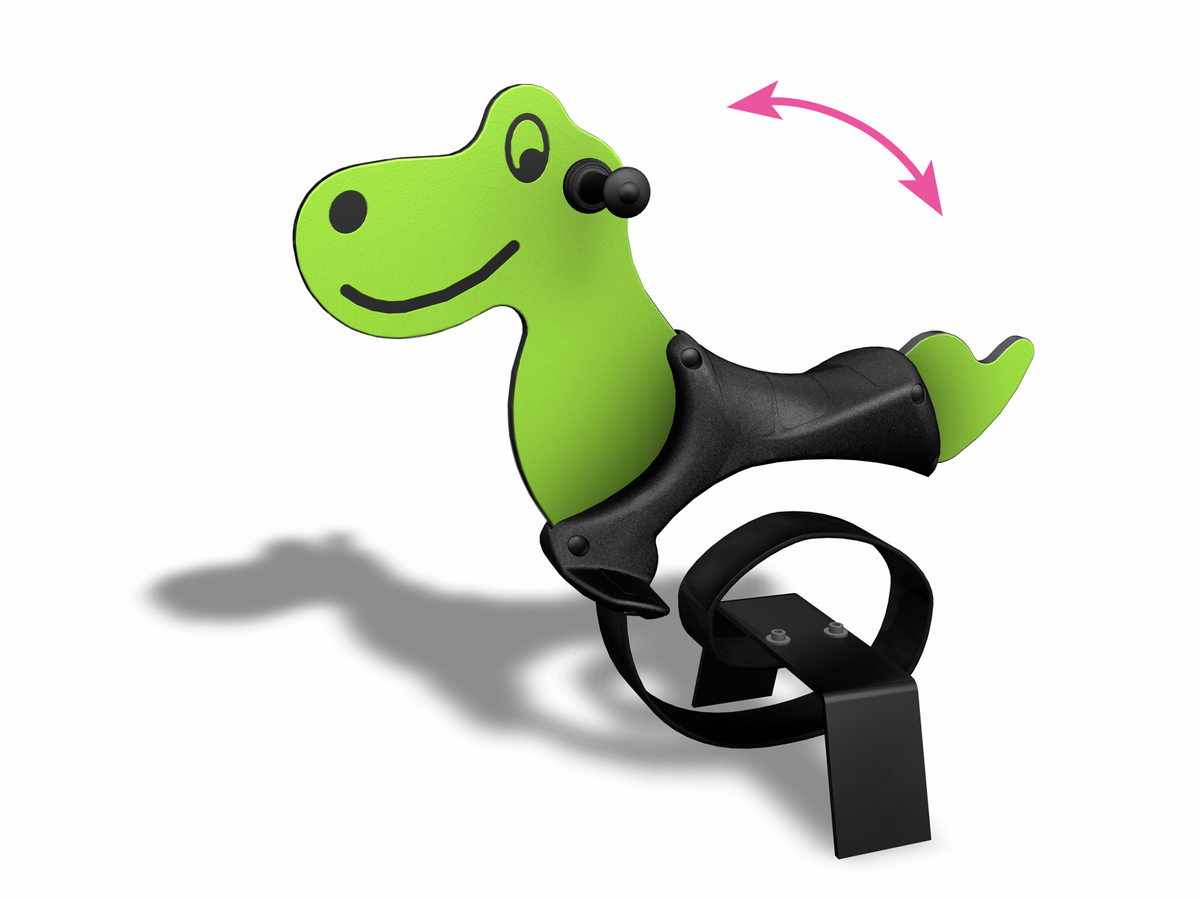

010503
DINO
Downloads
Spare parts
Downloads
Technical information
Spare part sets
003251
HANDLE PACKAGE JOMO
Original product structure
Spare parts
701991
DINO BODY
701991
DINO BODY
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
707014
JOMO PARTS INCL SPRING AND ATTACHEMENT IRON
Open substructure
902095
PLASTIC SEAT, RIGHT
902133
PLASTIC SEAT, LEFT
902211
SLEEVE
905023
010500SP
FRAME PACKAGE SPARE PART
010499SP
MOBILE SEAT SPAREPART JOMO
010499SP
MOBILE SEAT SPAREPART JOMO
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905023SP
HANDLE, WITHOUT HEXAGONAL SCREW
905032
905032SP
SPIRAL SPRING,8,5x90
905106
905106SP
ATTACHMENT IRON 590x190x120
Downloads
DETAIL PAGE PÄÄOHJEINEEN (.dwg)
InstallationInstructions (.pdf)

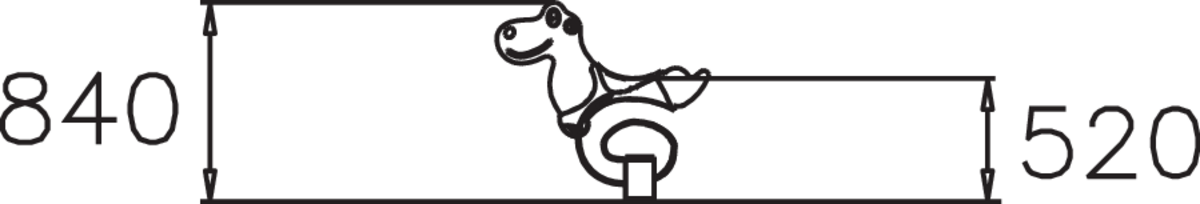

SIDE VIEW 010503 (.dwg)

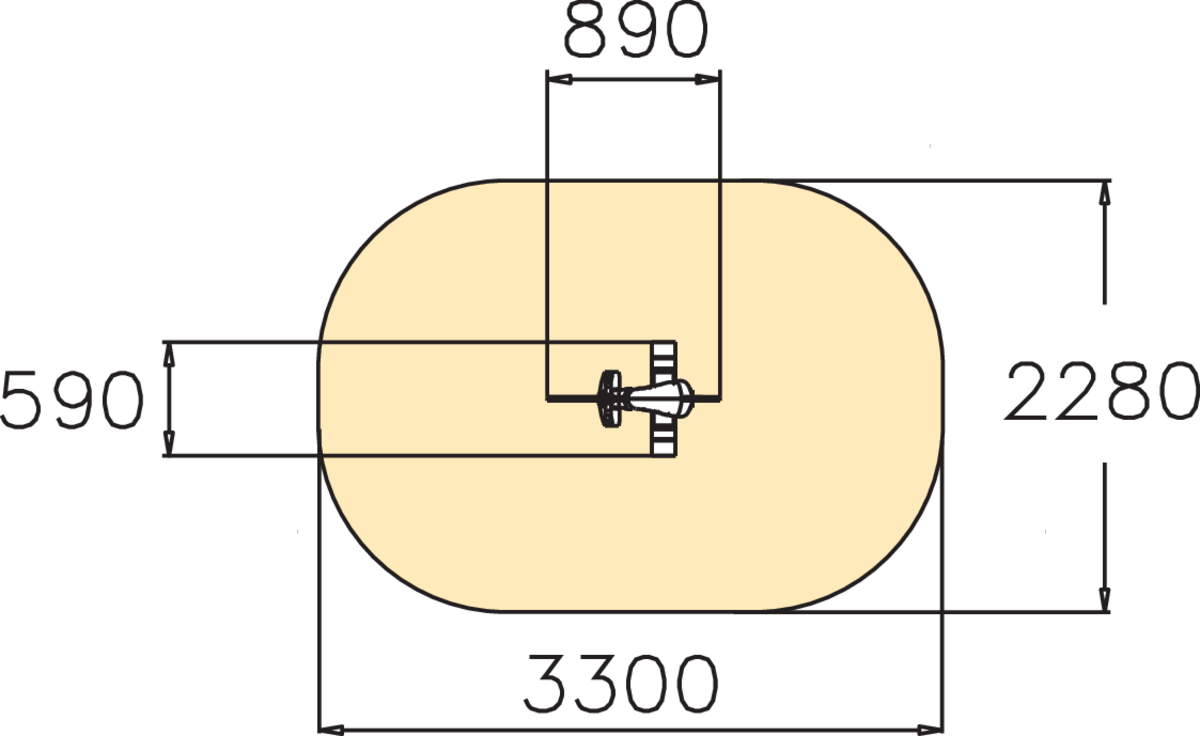

TOP VIEW 010503 (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
3300
FALLING SPACE WIDTH, MM
2280
Max. free fall height, mm
600
Impact area, m²
6.7
Product height, mm
840
Product lenght, mm
890
Product width, mm
590
Height required, mm
2020
IMPACT AREA LENGTH, MM
3300
IMPACT AREA WIDTH, MM
2280
