Home
/
spareparts
Spare parts
220140
COBALT
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701967
701967SP
CLIMBING ELEMENT METAL PRODUCT
701985
701985SP
FOUNDATION TUBE Ø60x500 METAL PRODUCTS
701997
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702000
FLOOR ELEMENT DARK GREY
702000
FLOOR ELEMENT DARK GREY
702046
702046SP
CLIMBING ELEMENT METAL PRODUCT DARK GREY
702151
702151SP
CLIMBING ELEMENT DEEP FOUNDATION
702285
702285SP
INSTALLATION MODULE DEEP FOUNDATION
702291
702291SP
CLIMBING NET YELLOW
702633
PRINTED LABEL 90x50 NO HELM VERT
702633
PRINTED LABEL 90x50 NO HELM VERT
708315
GRIP DOUPLE
708315
GRIP DOUPLE
902134
902134SP
BALL FASTENER
902141
SLIDE PIPE
902141
SLIDE PIPE
902157
PLUG FOR PLASTIC JOINT BLACK
902157
PLUG FOR PLASTIC JOINT BLACK
902177
SLIDEPIPE
902177
SLIDEPIPE
902253
902253SP
HANDLE METAL PRODUCT
Downloads
CLOXX (.dwg)
InstallationInstructions (.pdf)

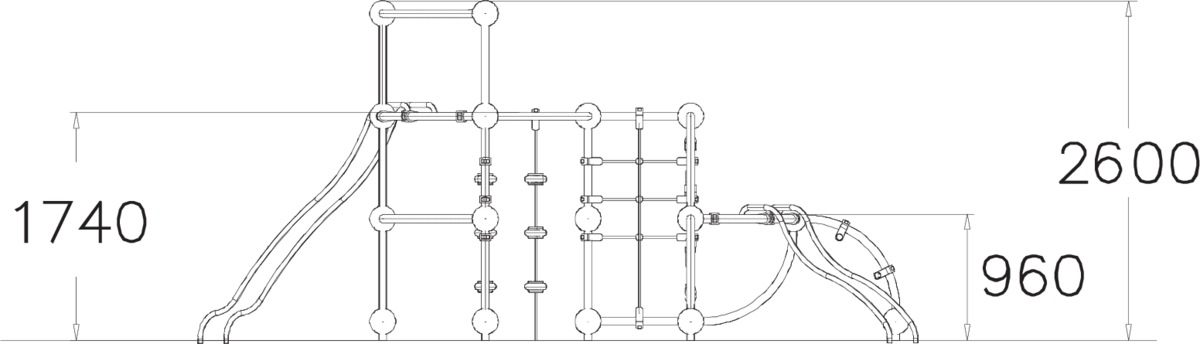

SIDE VIEW 220140 (.dwg)

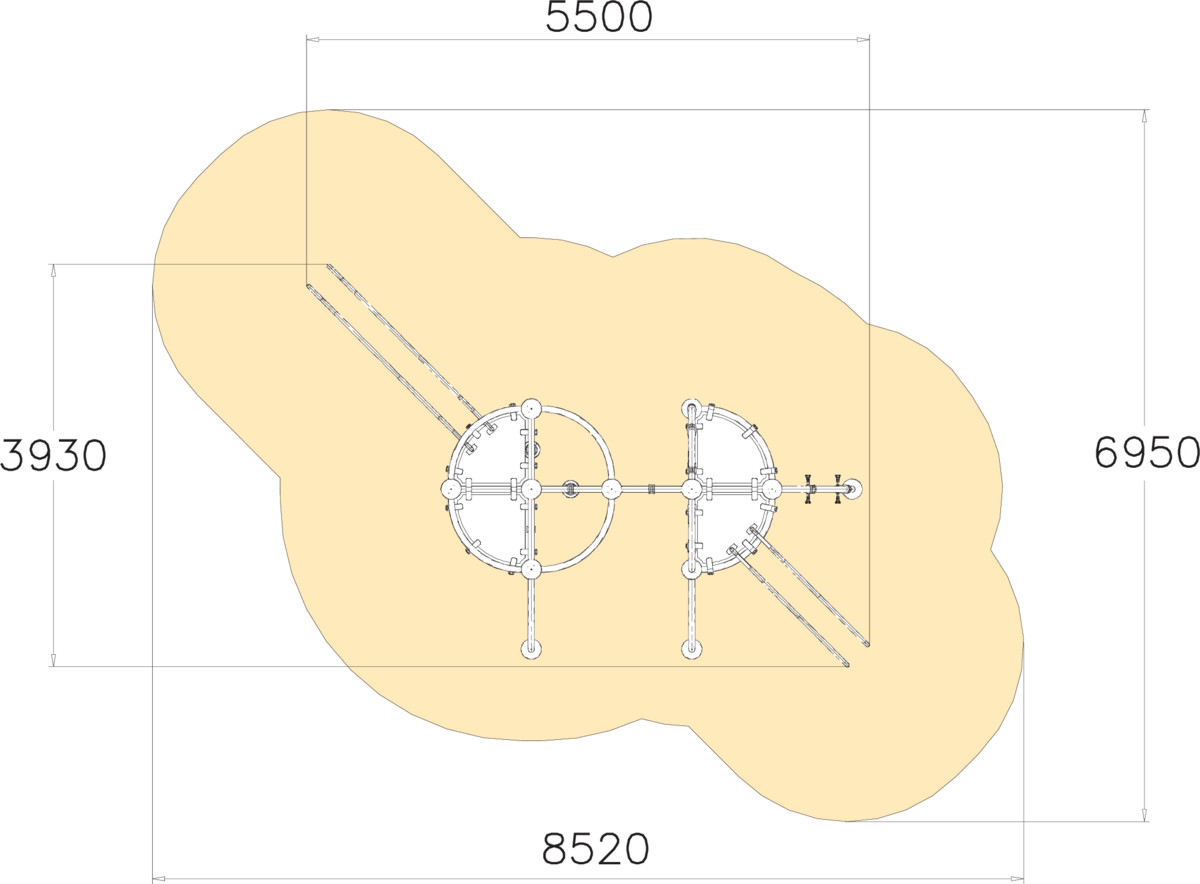

TOP VIEW 220140 (.dwg)
Technical information
User age
4+
FALLING SPACE LENGTH, MM
8520
FALLING SPACE WIDTH, MM
6950
Max. free fall height, mm
1740
Impact area, m²
37.8
Product height, mm
2600
Product lenght, mm
5500
Product width, mm
3930
Height required, mm
3540
IMPACT AREA LENGTH, MM
8520
IMPACT AREA WIDTH, MM
6950
