175006

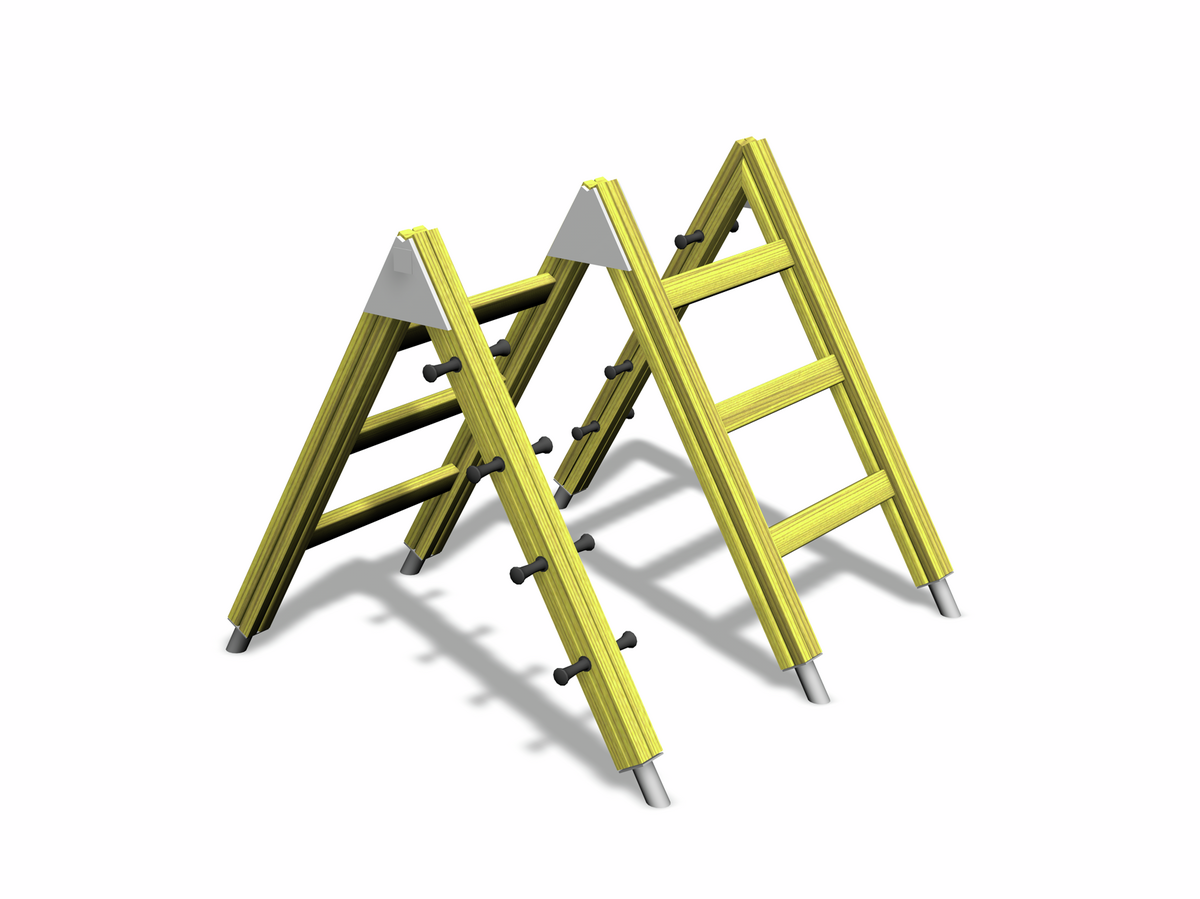

CLIMBING FRAME

Downloads

Spare part sets

003241SP HANDLES 003241SP HANDLES
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
703132 LADDERS IMPREGNATED 703132 LADDERS IMPREGNATED
703132 LADDERS IMPREGNATED 703132 LADDERS IMPREGNATED
703182 PLATE 15x312x230 GREY 703182 PLATE 15x312x230 GREY
703182 PLATE 15x312x230 GREY 703182 PLATE 15x312x230 GREY
703325 POST 93x93x1530 IMPREGNATED 703325 POST 93x93x1530 IMPREGNATED
703325 POST 93x93x1530 IMPREGNATED 703325 POST 93x93x1530 IMPREGNATED
706439 BOOM 45x120x704 IMPREGNATED 706439 BOOM 45x120x704 IMPREGNATED
706439SP BOOM 45x120x704 IMPREGNATED 706439SP BOOM 45x120x704 IMPREGNATED
909521 BASE FOOT, L=700 909521 BASE FOOT, L=700
909521SP BASE FOOT, L=700 909521SP BASE FOOT, L=700

Technical information

  • User age
    3+

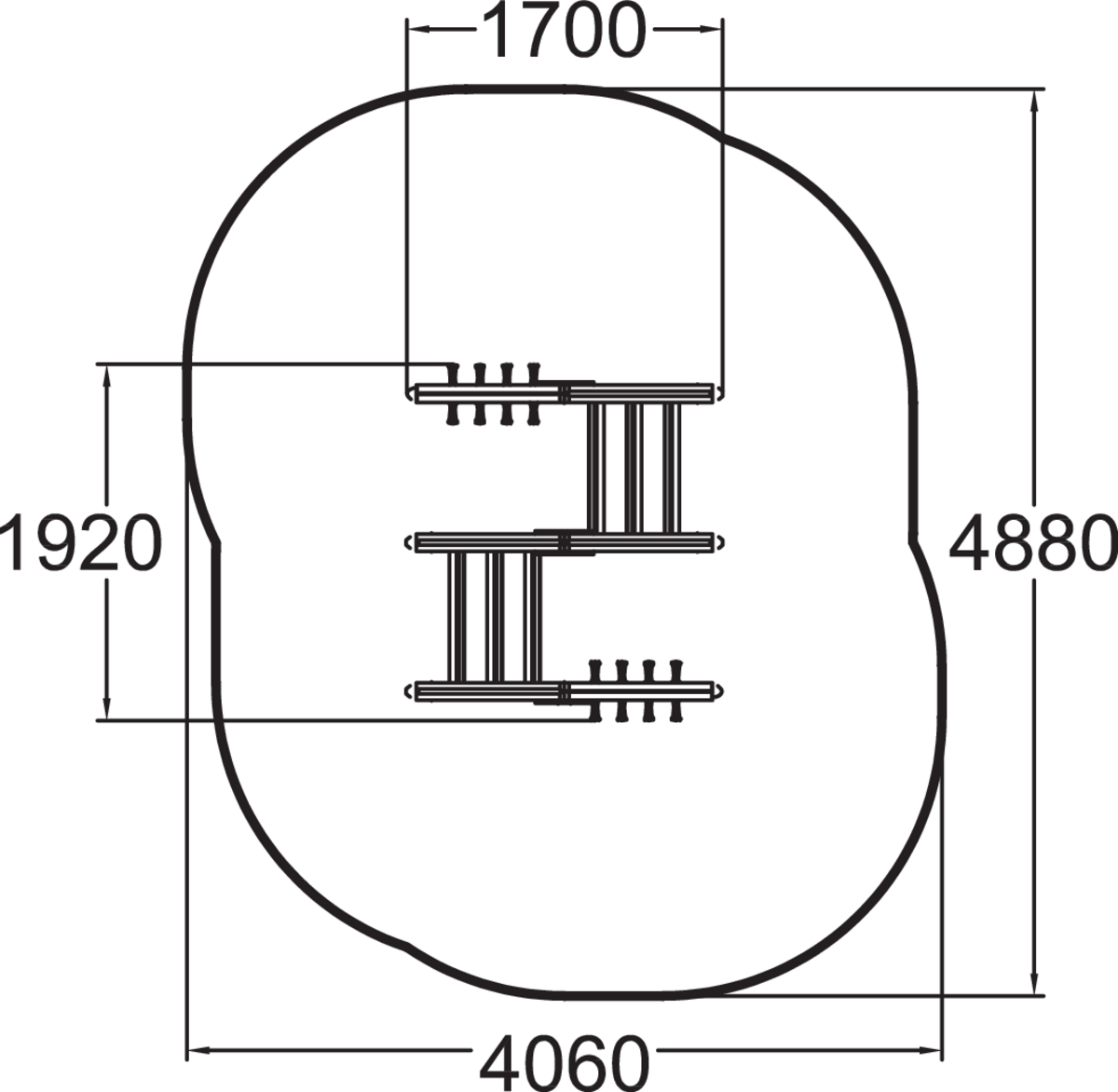

  • FALLING SPACE LENGTH, MM
    4880
  • FALLING SPACE WIDTH, MM
    4060
  • Max. free fall height, mm
    1160
  • Impact area, m²
    16.5

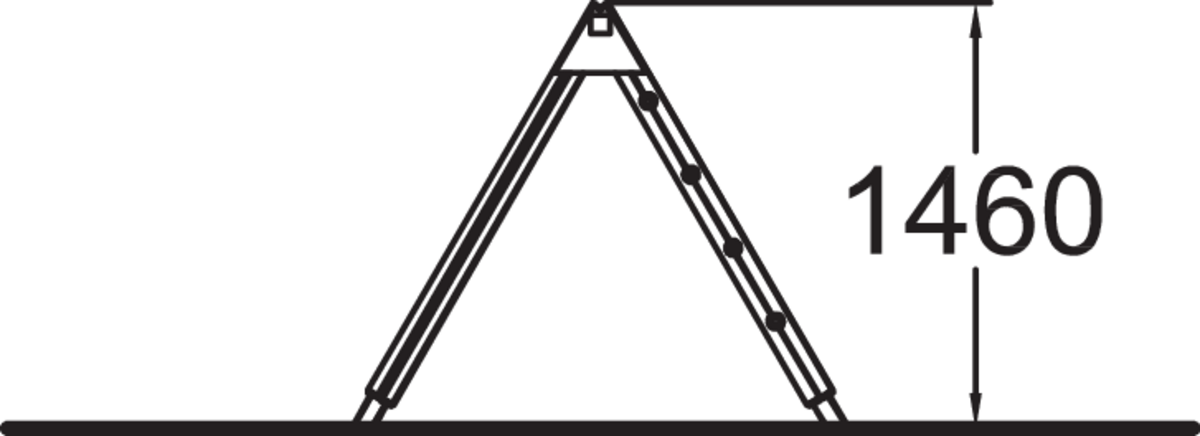

  • Product height, mm
    1460
  • Product lenght, mm
    1700
  • Product width, mm
    1920
  • Height required, mm
    2950
  • IMPACT AREA LENGTH, MM
    4060
  • IMPACT AREA WIDTH, MM
    4880
