Home
/
spareparts
Spare parts
175005

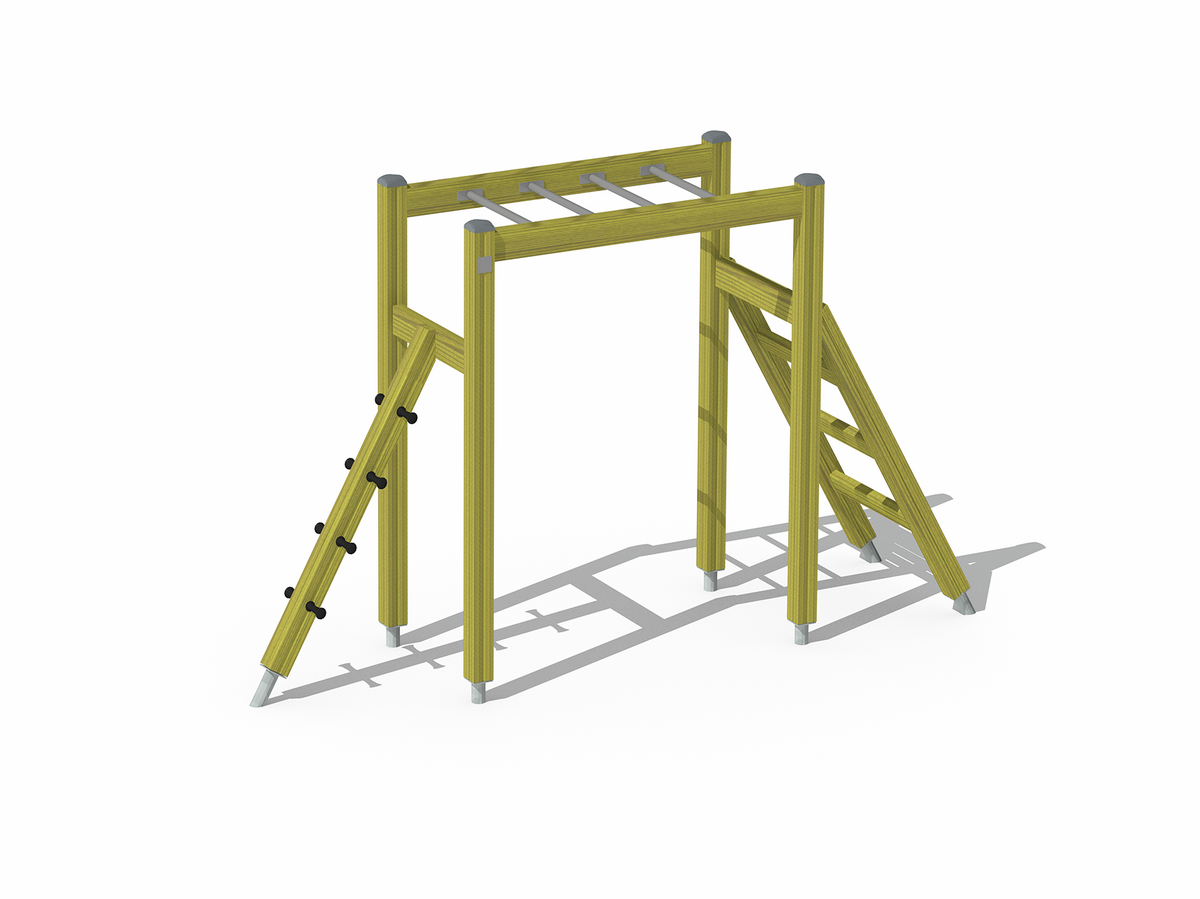

CLIMBING FRAME
Downloads
Spare parts
Downloads
Technical information
Spare part sets
003241SP
HANDLES
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703130
LADDER
703130
LADDER
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706511
POST 93x93x1870 IMPREGNATED
706511
POST 93x93x1870 IMPREGNATED
706514
BOOM 70x120x1504 IMPREGNATED
706514
BOOM 70x120x1504 IMPREGNATED
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175005 (.dwg)
SIDE VIEW 175005 (.dwg)
TOP VIEW 175005 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
6000
FALLING SPACE WIDTH, MM
4250
Max. free fall height, mm
1950
Impact area, m²
19.4

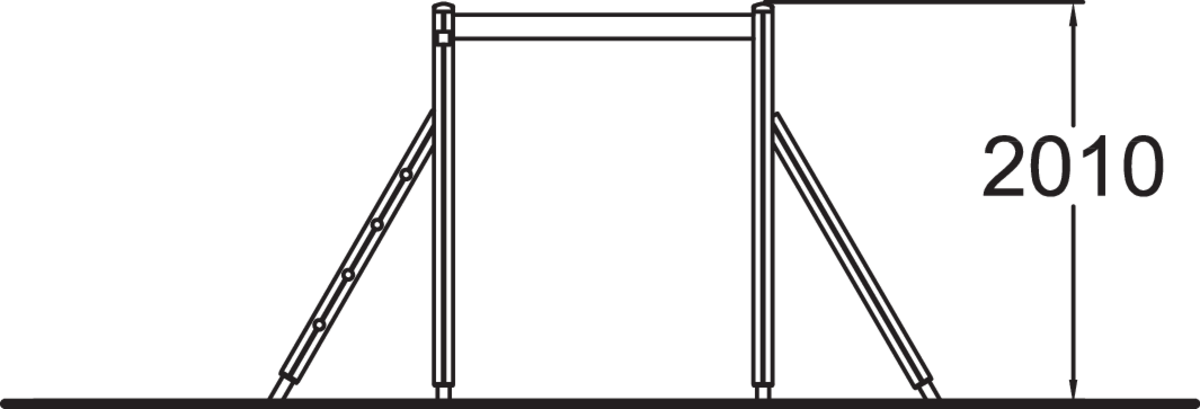

Product height, mm
2010

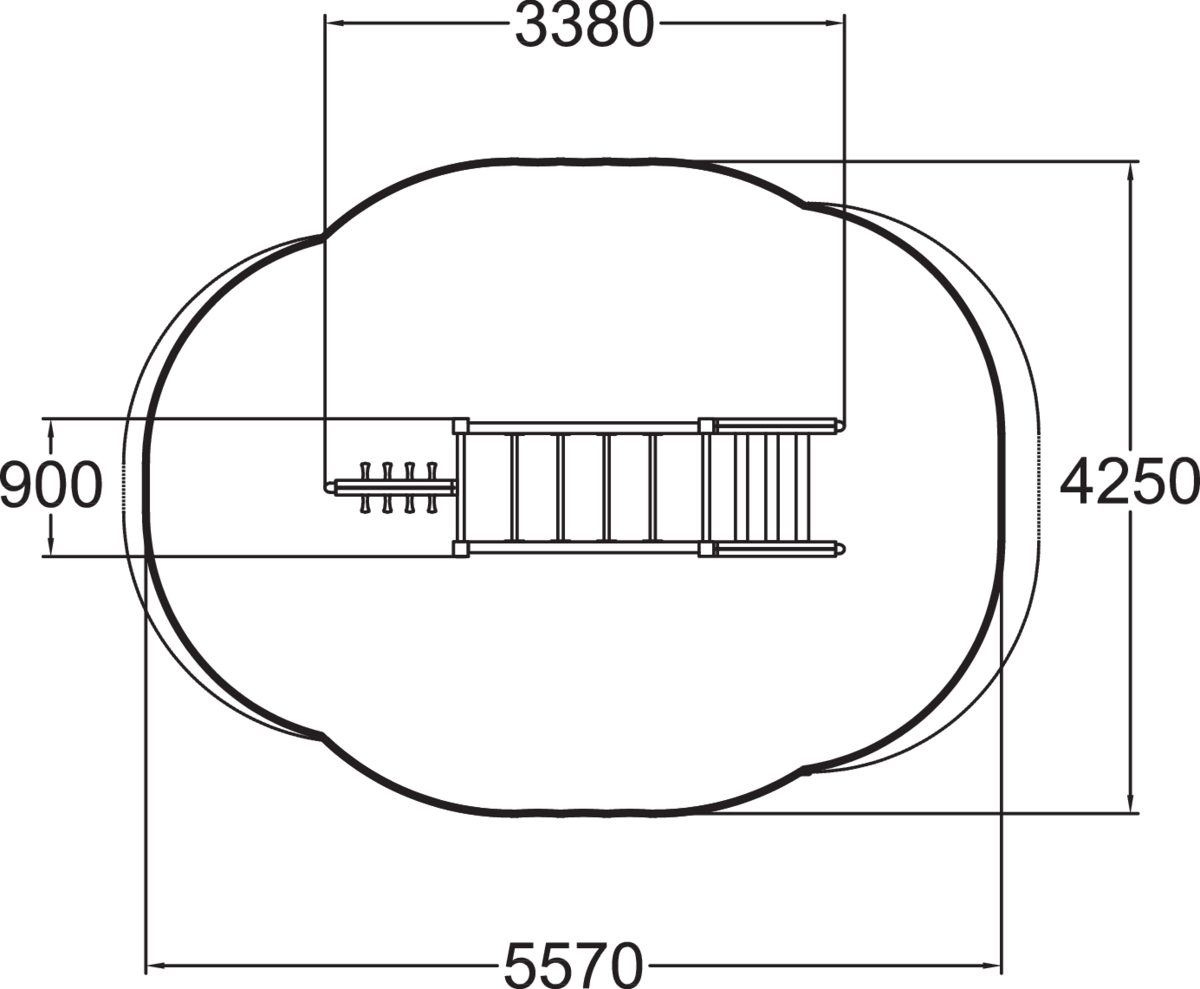

Product lenght, mm
3380
Product width, mm
900
Height required, mm
4030
IMPACT AREA LENGTH, MM
5570
IMPACT AREA WIDTH, MM
4250
