Home
/
spareparts
Spare parts
137072M

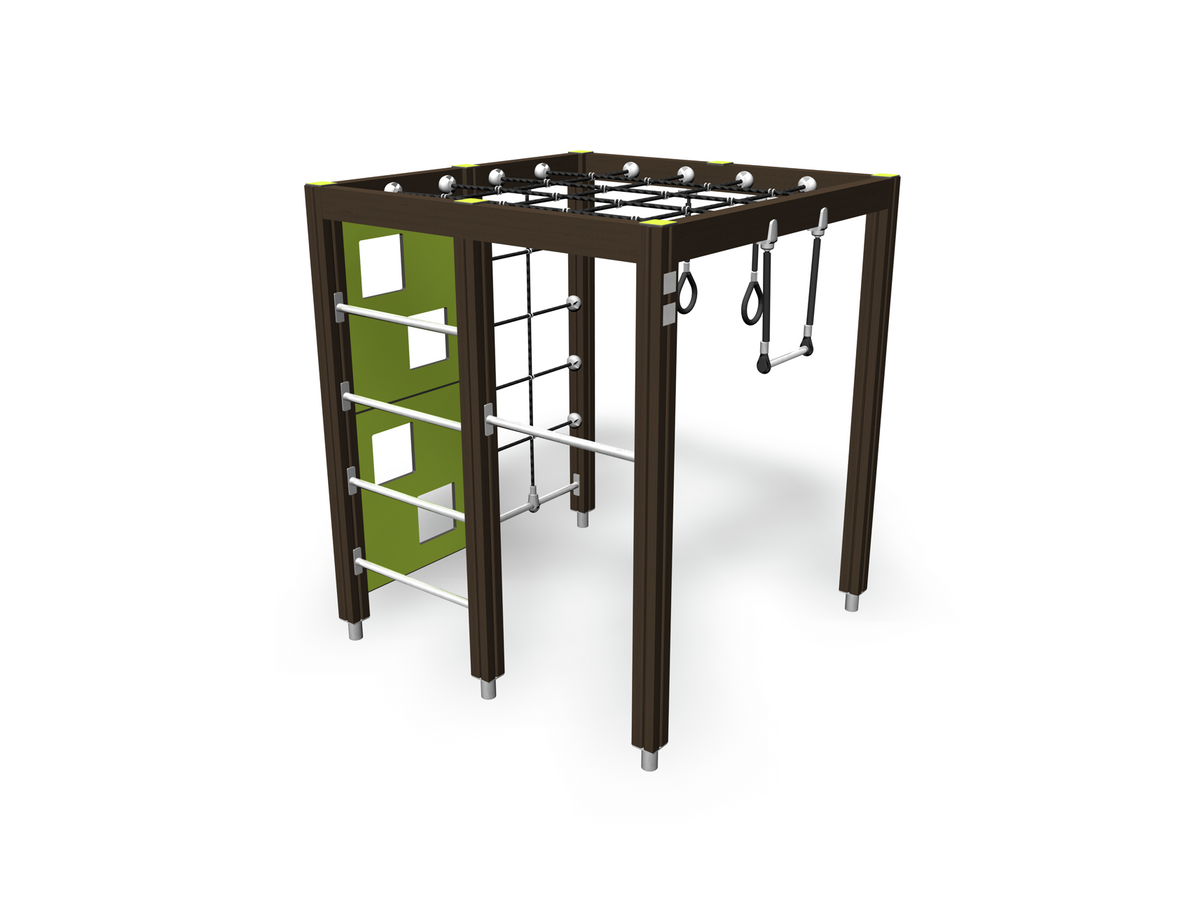

CLIMBING FRAME
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
907694
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706735-305
706735-305SP
RINGS PAIR FINNO Ø16x562mm BLACK ROPE
706485-305
706485-305SP
NET ELEMENT Ø1555x1555 BLACK
706540-703
706540-703SP
CLIMBING WALL 20x702x415 LIME
706600-305
706600-305SP
TRAPEZE BLACK ROPE
706905-602
POST 93x93x1870 DARK BROWN
706905-602
POST 93x93x1870 DARK BROWN
706480-305
NET ASSEMBLY 1580x705 BLACK
706480-305
NET ASSEMBLY 1580x705 BLACK
706480-305SP
NET ELEMENT 1580x705 BLACK
706514-602
BOOM 70x120x1504 DARK BROWN
706514-602
BOOM 70x120x1504 DARK BROWN
706511-602
POST 93x93x1870 DARK BROWN
706511-602
POST 93x93x1870 DARK BROWN
706481-703
PLATE 93x93x10 TOP HAT FFL LIME
706481-703
PLATE 93x93x10 TOP HAT FFL LIME
706481-703SP
PLATE 93x93x10 TOP HAT FFL LIME
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137072M (.dwg)

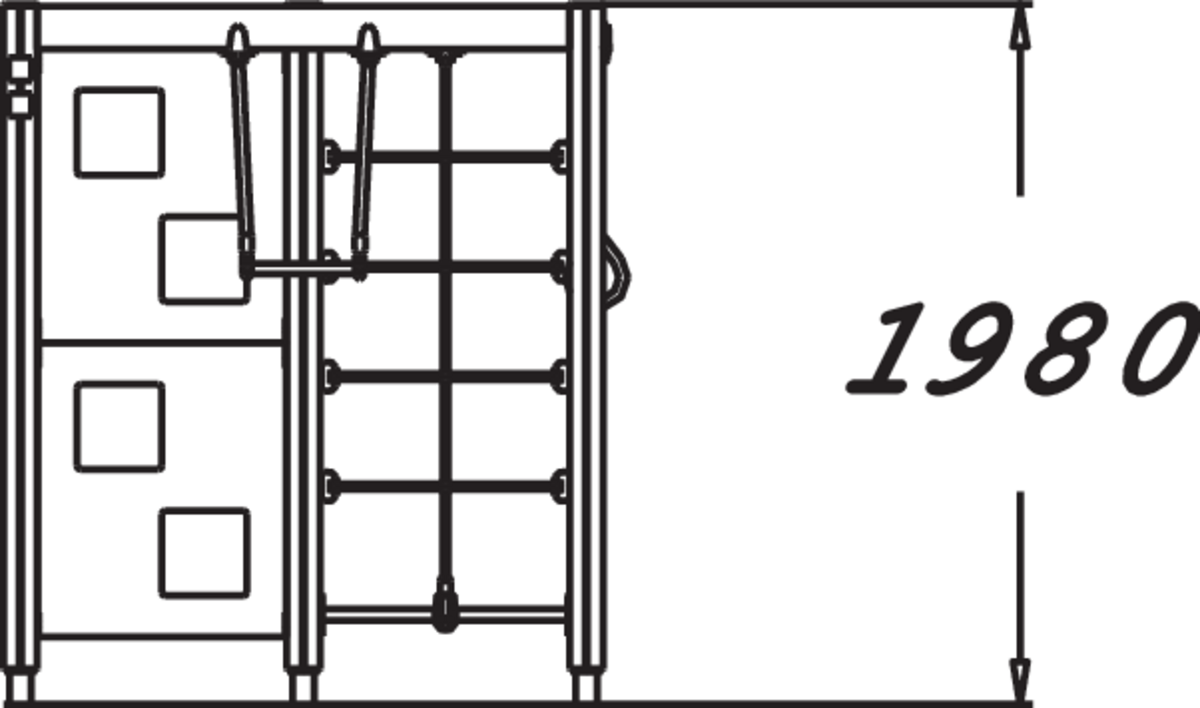

SIDE VIEW 137072M (.dwg)

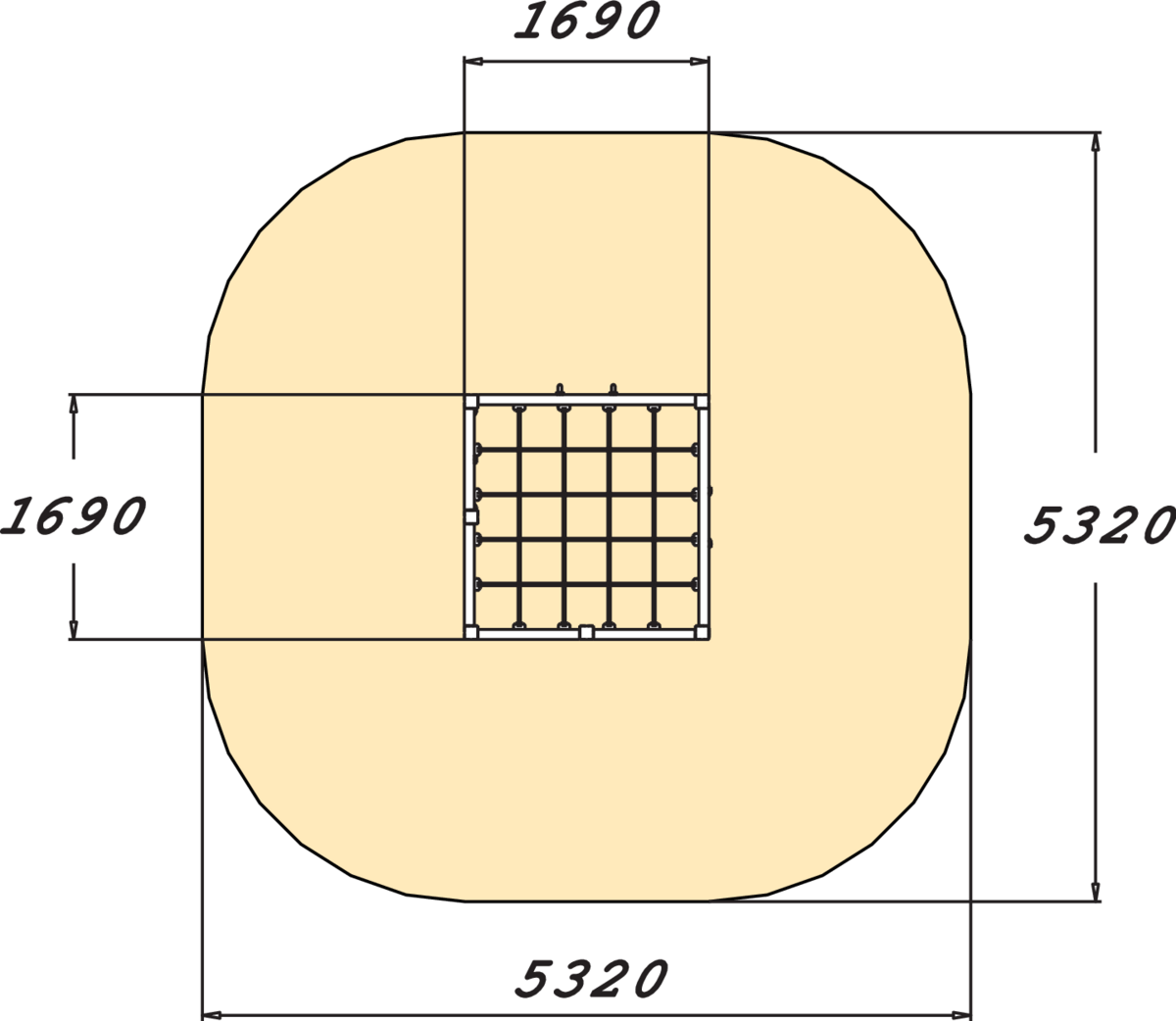

TOP VIEW 137072M (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
5320
FALLING SPACE WIDTH, MM
5320
Max. free fall height, mm
1970
Impact area, m²
28.5
Product height, mm
1980
Product lenght, mm
1690
Product width, mm
1690
Height required, mm
3470
IMPACT AREA LENGTH, MM
5320
IMPACT AREA WIDTH, MM
5320
