Spare parts
121100M

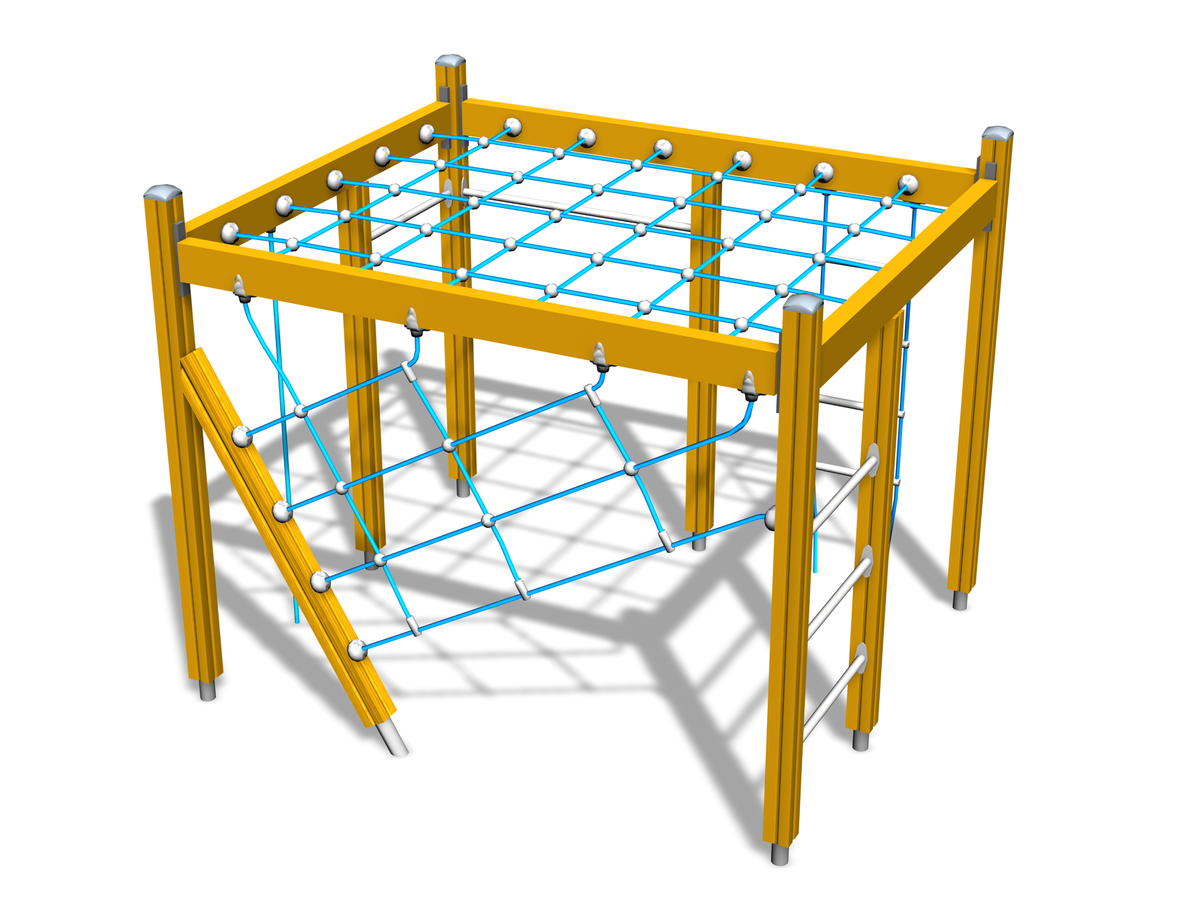

CLIMBING FRAME
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701300
006942SP
SIDE NET STEEL ( 701300 )
701304
006941SP
HORIZONTAL NET Ø16x2000x2400
701329
701329SP
ROPE LADDER 1755 (006961)
701350
KIIPEILYKÖYSI,
701350SP
CLIMBING ROPE L2305 (006964)
701422
703327SP
POST 93x93x1650 YELLOW
701425
POST, 95x95x1950 YELLOW
701425
POST, 95x95x1950 YELLOW
701474
701474SP
POST 95x95x1530 YELLOW (006800)
701515
BOOM, 70x145x1860 (006931) YELLOW
701515
BOOM, 70x145x1860 (006931) YELLOW
701520
BOOM, 70x145x2260 YELLOW
701520
BOOM, 70x145x2260 YELLOW
901785
901785SP
BAR ELEMENT 120M GREY
901787
907694-216SP
BAR ELEMENT40x120x704 80M GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909519
909521SP
BASE FOOT, L=700
909519SP
PLATE 50x380x380 FOOTING
909574
909574SP
JUNCTION PLATE, 6x40x200
909578
ATTACHMENT PIPE L270
909578
ATTACHMENT PIPE L270
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
KIIPEILYTELINE (.dwg)
SIDE VIEW 121100M (.dwg)
TOP VIEW 121100M (.dwg)
Technical information
User age
3
Max. free fall height, mm
1900
Impact area, m²
30.9

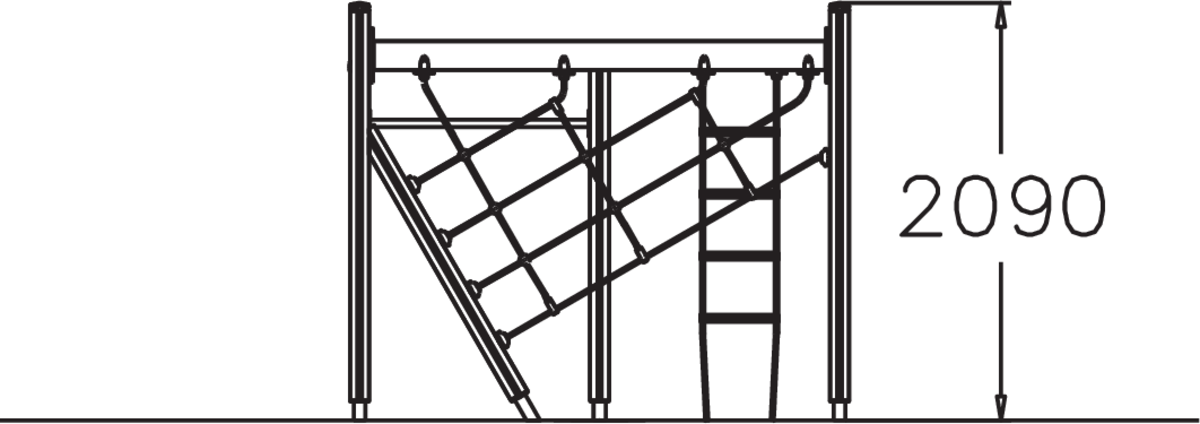

Product height, mm
2090
Product lenght, mm
2500
Product width, mm
2100
Height required, mm
3400

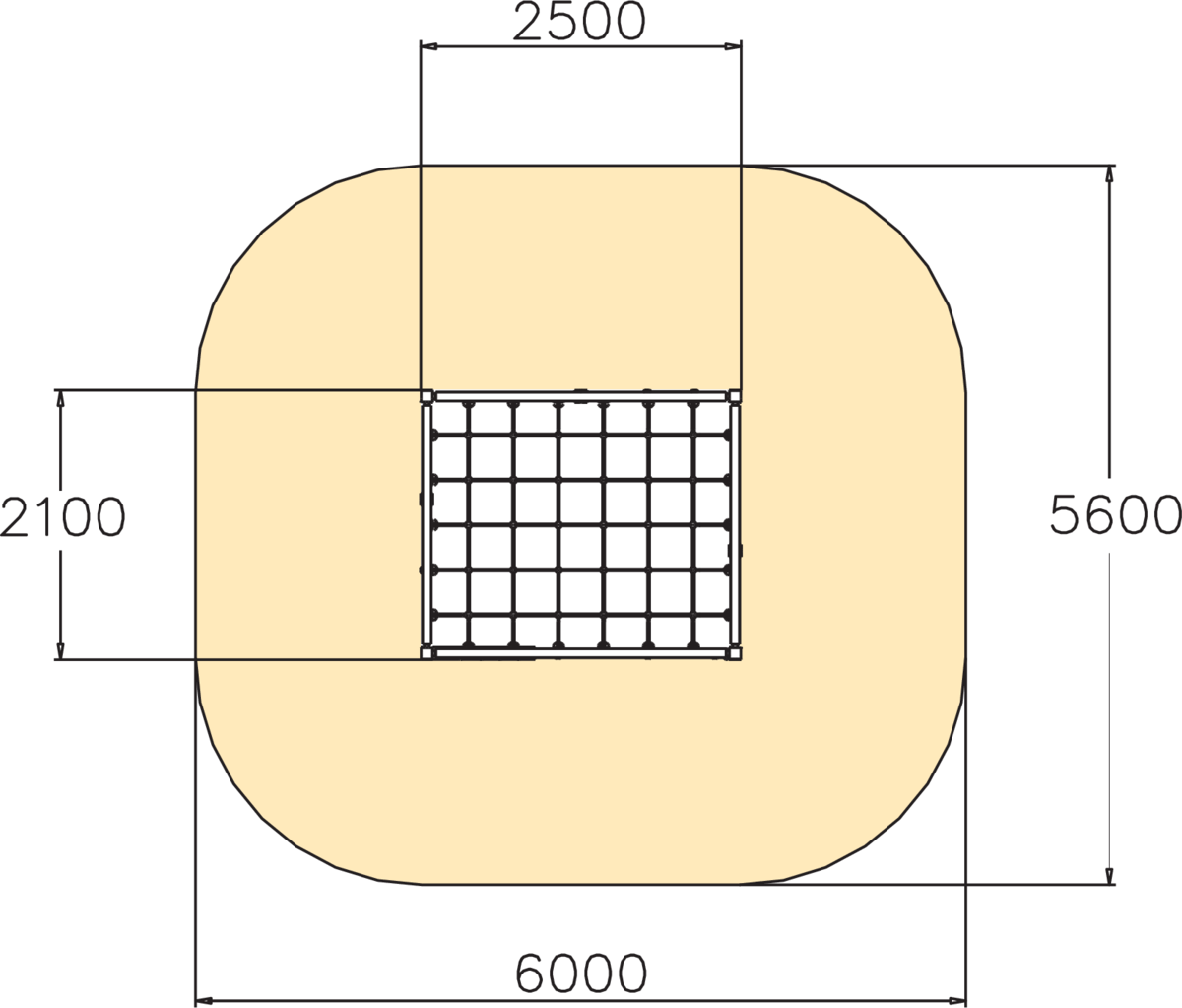

IMPACT AREA LENGTH, MM
6000
IMPACT AREA WIDTH, MM
5600
