Home
/
spareparts
Spare parts
120290M

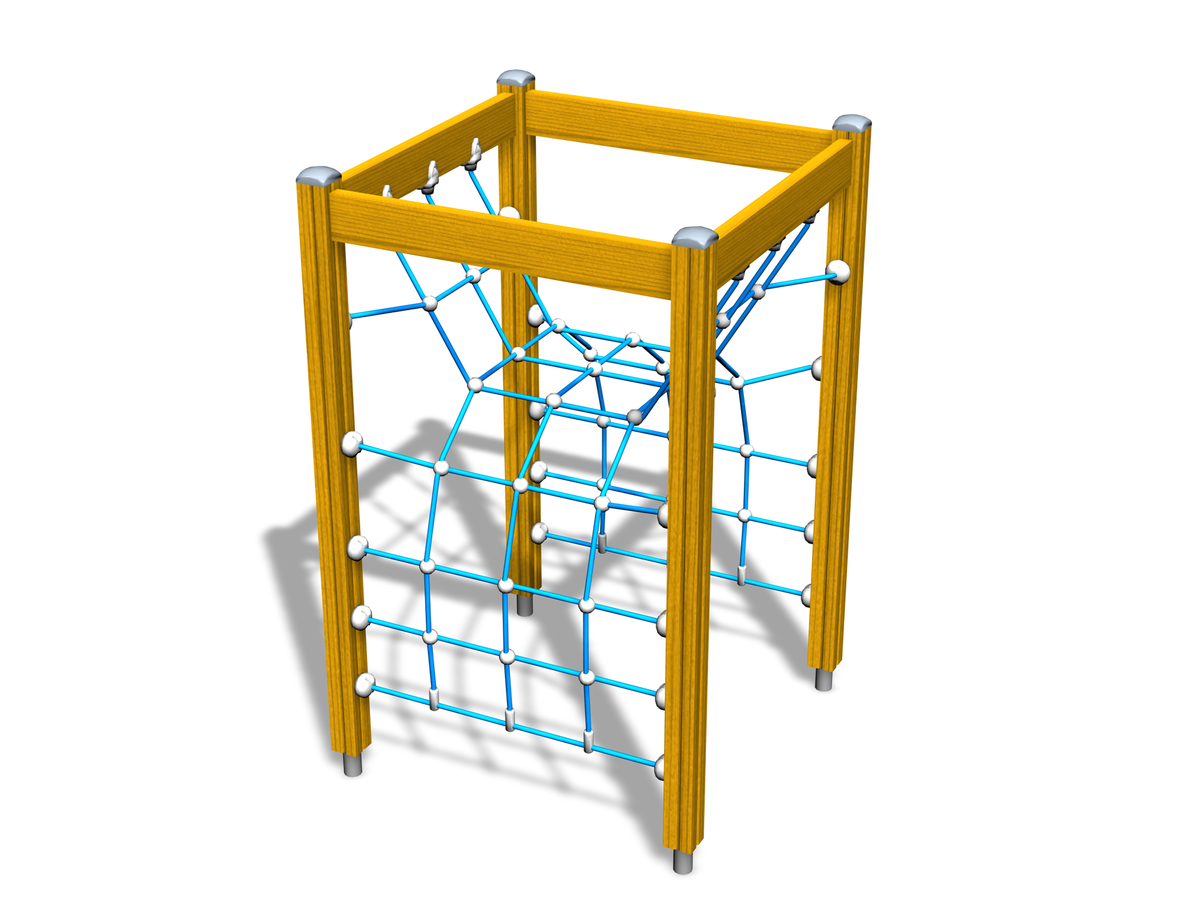

CLIMBING FRAME
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701425
POST, 95x95x1950 YELLOW
701425
POST, 95x95x1950 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701660
701660SP
NET 1520x1105 (003850)
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
KIIPEILYTELINE (.dwg)
SIDE VIEW 120290M (.dwg)
TOP VIEW 120290M (.dwg)
Technical information
User age
3
Max. free fall height, mm
2020
Impact area, m²
21.5
Product height, mm
2090
Product lenght, mm
1300
Product width, mm
1300
Height required, mm
3520

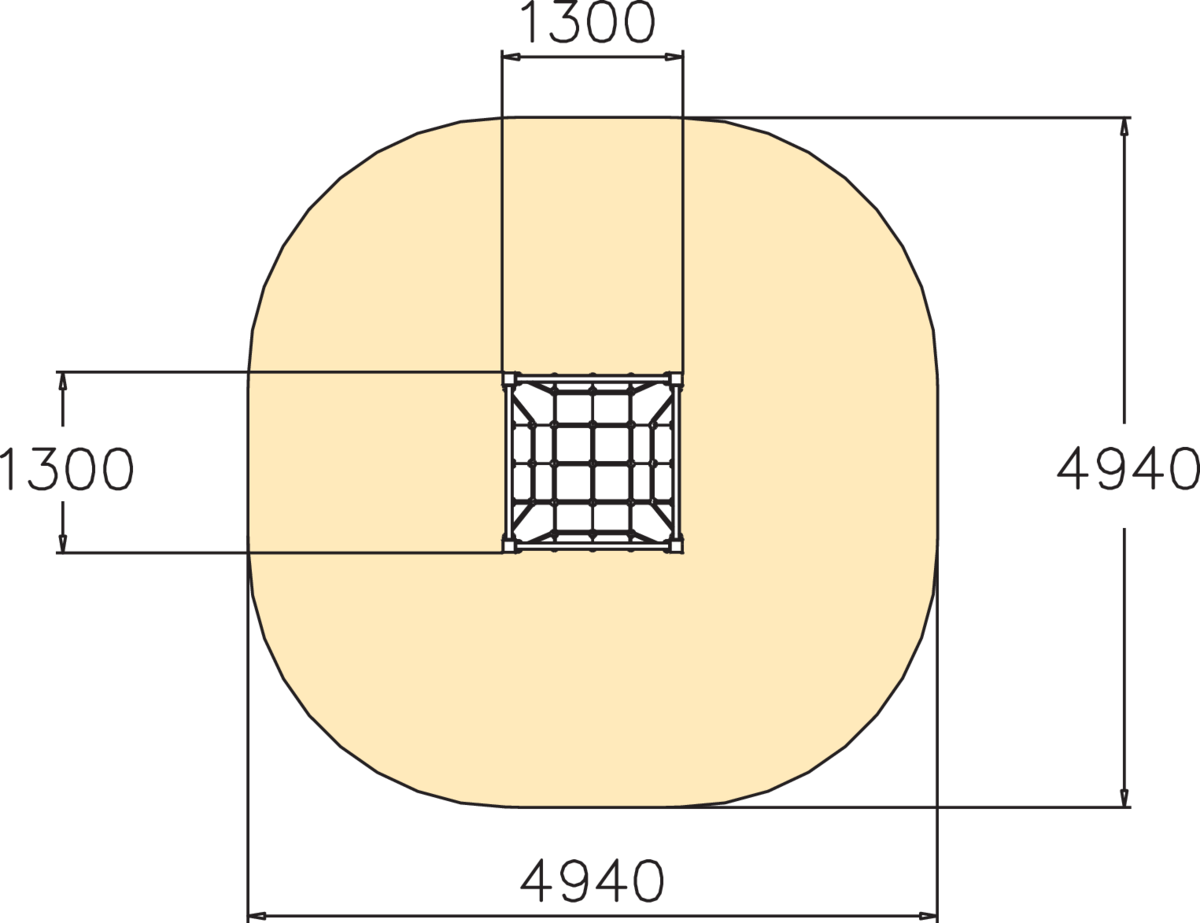

IMPACT AREA LENGTH, MM
4940
IMPACT AREA WIDTH, MM
4940
