Spare parts

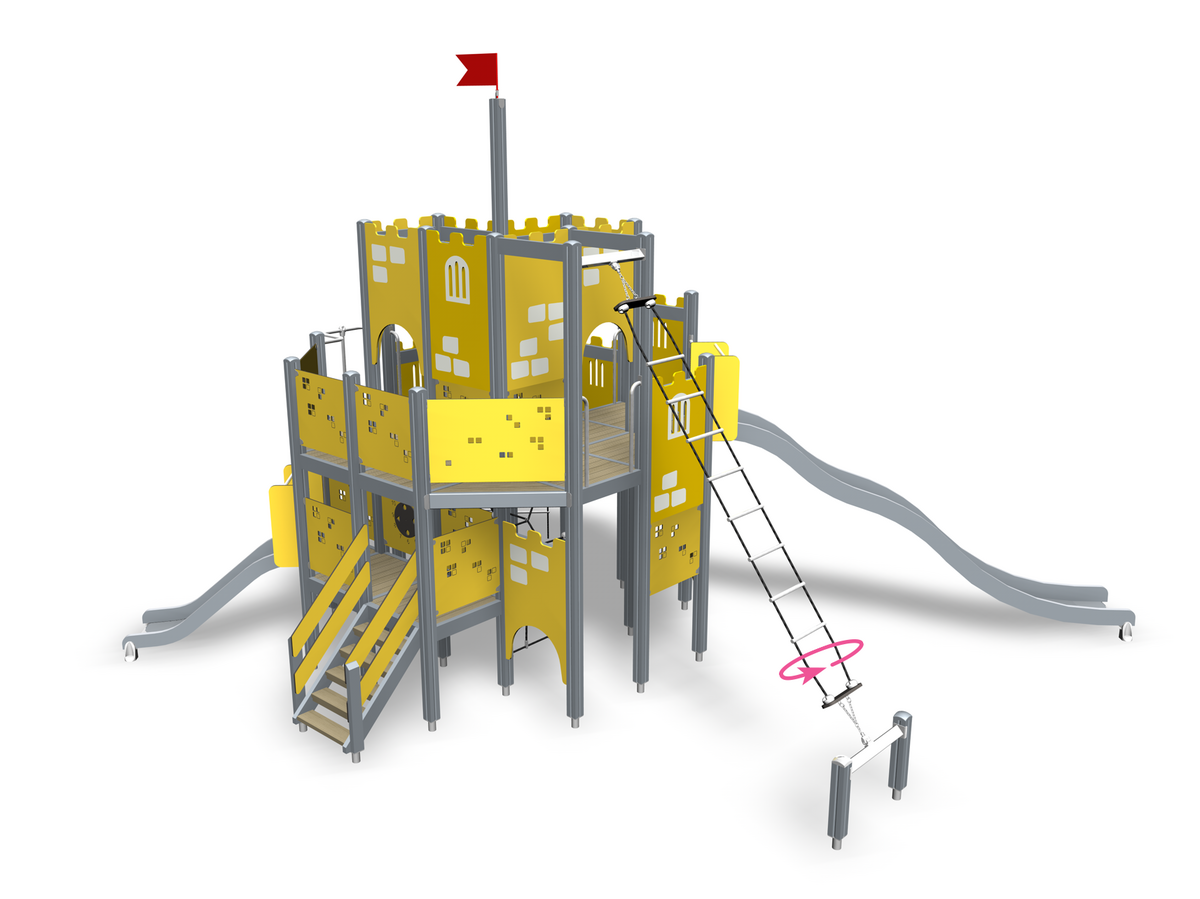

137730
CASTLE
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
707732
907688-216SP
HAND GRIP 40x765x114 GREY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909491
EXTENSION FOOT 90x90x150
909491
EXTENSION FOOT 90x90x150
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
707331-604
POST 93x93x470 GREY
707331-604
POST 93x93x470 GREY
707464-610
CASTLE WALL 15x1200x702 YELLOW
707464-610
CASTLE WALL 15x1200x702 YELLOW
907688-216
907688-216SP
HAND GRIP 40x765x114 GREY
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
706810-604
POST 93x93x2650 GREY
706810-604
POST 93x93x2650 GREY
706371-702
706371-702SP
SLIDE RAIL PLATE 15x747x343 YELLOW
706462-305
706462-305SP
CLIMBING ELEMENT +1470 80M/120M BLACK
706788-604
POST 93x93x3700 GREY
706788-604
POST 93x93x3700 GREY
707341-305
707341-305SP
NET 1520x705 BLACK
907692-216
907692-216SP
SLIDE ADAPTER ELEMENT 80MD PEARL LIGHT GREY
706452-604
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
706772-702
706772-702SP
ROULETTE PLAY PANEL 640x702 YELLOW
707463-610
CASTLE WALL 15x1200x702 YELLOW
707463-610
CASTLE WALL 15x1200x702 YELLOW
707191-604
STAIR ELEMENT +870 STAIR GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
707462-610
CASTLE WALL 15x1200x702 YELLOW
707462-610
CASTLE WALL 15x1200x702 YELLOW
900793-206
STREAMER RED
900793-206
STREAMER RED
907695-216
907695-216SP
BAR ELEMENT 80M 773x431x120 GREY
706510-604
706510-604SP
BOOM 80MD 45x120x1030 GREY
706441-604
POST 93x93x1550 GREY
706441-604
POST 93x93x1550 GREY
908044-216
TUBE Ø337x679
908044-216
TUBE Ø337x679
706439-604
BOOM 45x120x704 GREY
706439-604
BOOM 45x120x704 GREY
706568-604
POST 93x93x3000 GREY
706568-604
POST 93x93x3000 GREY
707146-702
707146-702SP
HANDRAIL STAIR 15x145x1153 YELLOW
706436-702
706436-702SP
WALL LAMINATE 80M 10x640x701 YELLOW
008986
008710SP
FLOOR 80M (008701)
707145-604
POST 43x93x717 GREY STAIRS 20
707145-604
POST 43x93x717 GREY STAIRS 20
701448-604
701448-604SP
SLIDE ELEMENT +2070 GREY DEEP
706664-604
POST 93x93x2540 GREY
706664-604
POST 93x93x2540 GREY
908226-216
BOOM 90x96,5x704
908226-216
BOOM 90x96,5x704
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137730 (.dwg)

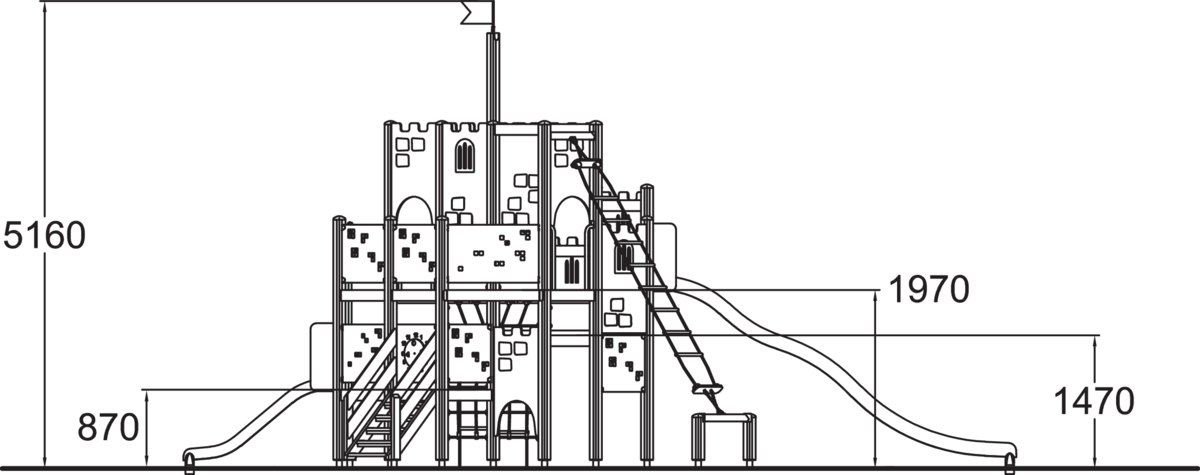

SIDE VIEW 1377730 (.dwg)

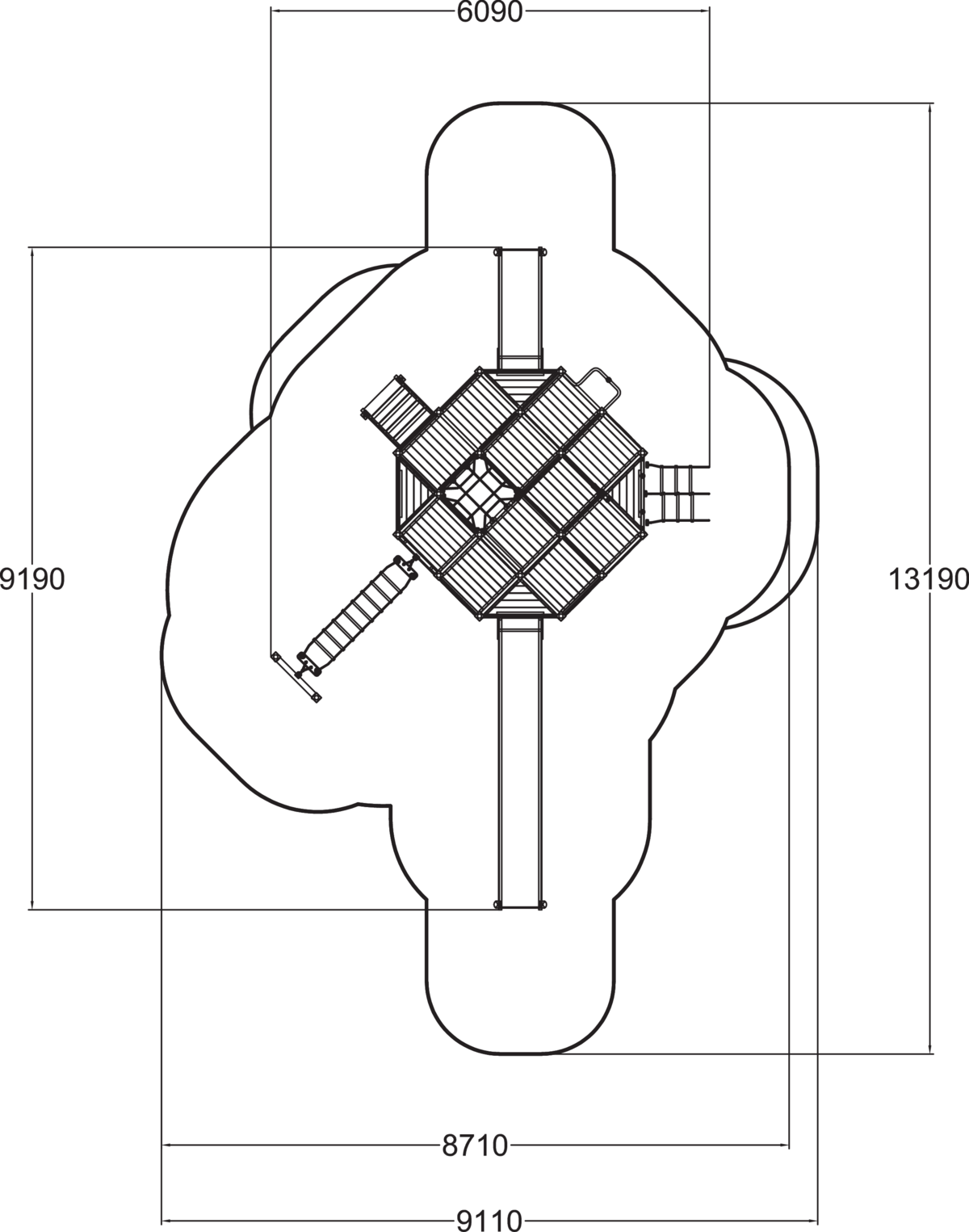

TOP VIEW 137730 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
9110
FALLING SPACE WIDTH, MM
13190
Max. free fall height, mm
2900
Impact area, m²
66.7
Product height, mm
5160
Product lenght, mm
6090
Product width, mm
9190
Height required, mm
5160
IMPACT AREA LENGTH, MM
8710
IMPACT AREA WIDTH, MM
13190
