137725

CASTLE

Downloads
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
706461 PLATE 15x400x703 DARK GREY 706461 PLATE 15x400x703 DARK GREY
706461 PLATE 15x400x703 DARK GREY 706461 PLATE 15x400x703 DARK GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706508 BATTEN 32x45x650 BRACKET 706508 BATTEN 32x45x650 BRACKET
706508 BATTEN 32x45x650 BRACKET 706508 BATTEN 32x45x650 BRACKET
706896 PLATE 15x150x703 DARK GREY 706896 PLATE 15x150x703 DARK GREY
706896 PLATE 15x150x703 DARK GREY 706896 PLATE 15x150x703 DARK GREY
706898 PLATE 15x150x1003 DARK GREY 706898 PLATE 15x150x1003 DARK GREY
706898 PLATE 15x150x1003 DARK GREY 706898 PLATE 15x150x1003 DARK GREY
707732 707732
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY 907701-216SP HAND GRIP 40x545x114 GRAY 907701-216SP HAND GRIP 40x545x114 GRAY
901868 901868
901868SP HANDRAIL BAR Ø34x598 GREY 901868SP HANDRAIL BAR Ø34x598 GREY
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909511 909511
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650
909519 909519
909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
008985 008985
008714SP TRIANGLE FLOOR 80M ( 008705 ) 008714SP TRIANGLE FLOOR 80M ( 008705 )
706511-604 POST 93x93x1870 GREY 706511-604 POST 93x93x1870 GREY
706511-604 POST 93x93x1870 GREY 706511-604 POST 93x93x1870 GREY
907694-216 907694-216
907694-216SP BAR ELEMENT40x120x704 80M GREY 907694-216SP BAR ELEMENT40x120x704 80M GREY
907698-216 907698-216
907698-216SP BAR ELEMENT +1470, Ø337x2054 GREY 907698-216SP BAR ELEMENT +1470, Ø337x2054 GREY
008986 008986
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)
706484-604 POST 93x93x2150 GREY 706484-604 POST 93x93x2150 GREY
706484-604 POST 93x93x2150 GREY 706484-604 POST 93x93x2150 GREY
707191-604 STAIR ELEMENT +870 STAIR GREY 707191-604 STAIR ELEMENT +870 STAIR GREY
707191-604 STAIR ELEMENT +870 STAIR GREY 707191-604 STAIR ELEMENT +870 STAIR GREY
706371-702 706371-702
706371-702SP SLIDE RAIL PLATE 15x747x343 YELLOW 706371-702SP SLIDE RAIL PLATE 15x747x343 YELLOW
707453-702 707453-702
707453-702SP WINDOW PLAY PANEL 640x702 YELLOW 707453-702SP WINDOW PLAY PANEL 640x702 YELLOW
706452-604 706452-604
706452-604SP SLIDE ELEMENT +870 GREY DEEP 706452-604SP SLIDE ELEMENT +870 GREY DEEP
907695-216 907695-216
907695-216SP BAR ELEMENT 80M 773x431x120 GREY 907695-216SP BAR ELEMENT 80M 773x431x120 GREY
706439-604 BOOM 45x120x704 GREY 706439-604 BOOM 45x120x704 GREY
706439-604 BOOM 45x120x704 GREY 706439-604 BOOM 45x120x704 GREY
707145-604 POST 43x93x717 GREY STAIRS 20 707145-604 POST 43x93x717 GREY STAIRS 20
707145-604 POST 43x93x717 GREY STAIRS 20 707145-604 POST 43x93x717 GREY STAIRS 20
707463-610 CASTLE WALL 15x1200x702 YELLOW 707463-610 CASTLE WALL 15x1200x702 YELLOW
707463-610 CASTLE WALL 15x1200x702 YELLOW 707463-610 CASTLE WALL 15x1200x702 YELLOW
907688-216 907688-216
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY
706441-604 POST 93x93x1550 GREY 706441-604 POST 93x93x1550 GREY
706441-604 POST 93x93x1550 GREY 706441-604 POST 93x93x1550 GREY
706436-702 706436-702
706436-702SP WALL LAMINATE 80M 10x640x701 YELLOW 706436-702SP WALL LAMINATE 80M 10x640x701 YELLOW
706510-604 706510-604
706510-604SP BOOM 80MD 45x120x1030 GREY 706510-604SP BOOM 80MD 45x120x1030 GREY
707146-702 707146-702
707146-702SP HANDRAIL STAIR 15x145x1153 YELLOW 707146-702SP HANDRAIL STAIR 15x145x1153 YELLOW
707418-702 707418-702
707418-702SP CLIMBING RAMP 80M + 870 YELLOW 707418-702SP CLIMBING RAMP 80M + 870 YELLOW

Technical information

  • User age
    2+

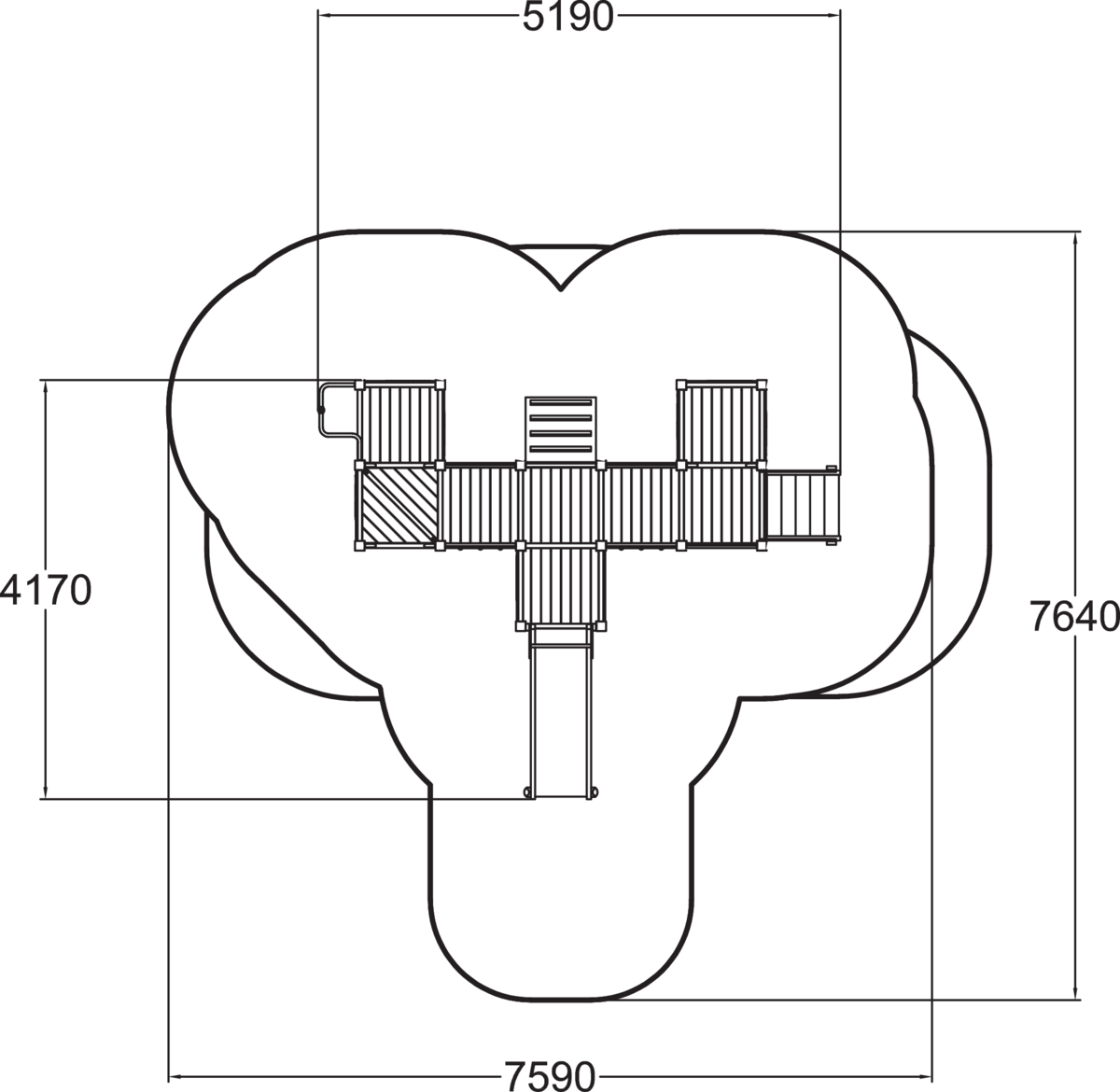

  • FALLING SPACE LENGTH, MM
    8190
  • FALLING SPACE WIDTH, MM
    7670
  • Max. free fall height, mm
    1470
  • Impact area, m²
    38.3

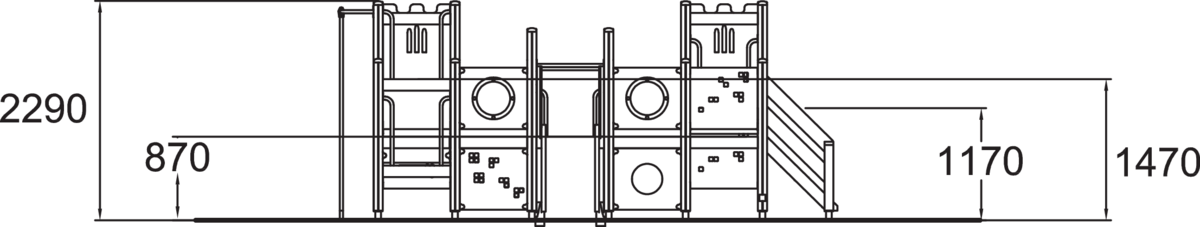

  • Product height, mm
    2290
  • Product lenght, mm
    5190
  • Product width, mm
    4170
  • Height required, mm
    3270
  • IMPACT AREA LENGTH, MM
    7590
  • IMPACT AREA WIDTH, MM
    7640
