Home
/
spareparts
Spare parts
160050M
CABLEWAY
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
903113
FOOT PIPE 900, L=1050
903113
FOOT PIPE 900, L=1050
903696
903696SP
SPRING ASSEMBLY 3 m (end part)
905081
BRAKE SPRING
905081
BRAKE SPRING
909664
SUPPORT PIPE 60x80x4730
909664
SUPPORT PIPE 60x80x4730
005051
CABLE CONNECTOR
005051
CABLE CONNECTOR
003104
003104SP
CABLEWAY SEAT
701876-602
POST 140x140x3600 DARK BROWN
701876-602
POST 140x140x3600 DARK BROWN
003100
FRAME (120238)
003100
FRAME (120238)
701875-602
POST 140x140x3200 DARK BROWN
701875-602
POST 140x140x3200 DARK BROWN
005050
005050SP
CABLE 35 M
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 160050M (.dwg)

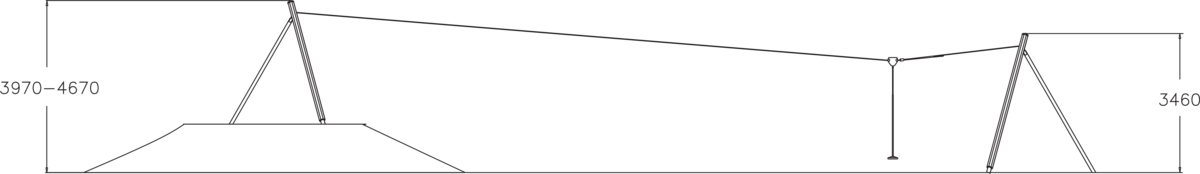

SIDE VIEW 160050M (.dwg)

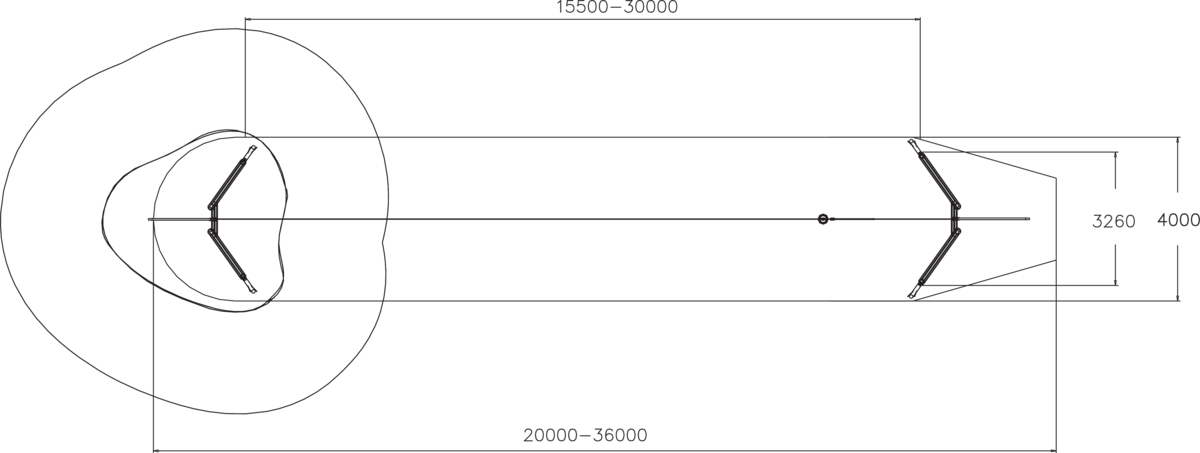

TOP VIEW 160050M (.dwg)
Technical information
User age
6+
FALLING SPACE LENGTH, MM
36000
FALLING SPACE WIDTH, MM
4000
Max. free fall height, mm
1000
Impact area, m²
130
Product height, mm
3460
Product lenght, mm
35000
Product width, mm
3260
Height required, mm
5100
IMPACT AREA LENGTH, MM
36000
IMPACT AREA WIDTH, MM
4000
