Home
/
spareparts
Spare parts
137815
BOAT
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
707333
FASTENER KIT FUNCTION ELEMENT
707333
FASTENER KIT FUNCTION ELEMENT
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905879
RUDDER ATTACHMENT PIECE
905879
RUDDER ATTACHMENT PIECE
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706894-603
POST 93x93x950 BROWN
706894-603
POST 93x93x950 BROWN
008986
008710SP
FLOOR 80M (008701)
707320-702
002031SP
RUDDER PLATE ELEMENT YELLOW
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
706439-603
BOOM 45x120x704 BROWN
706439-603
BOOM 45x120x704 BROWN
706746-608
706746-608SP
WALL WOOD 80M 45x640x701 BLUE
706511-603
POST 93x93x1870 BROWN
706511-603
POST 93x93x1870 BROWN
706510-603
706510-603SP
BOOM 80MD 45x120x1030 BROWN
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137815 (.dwg)

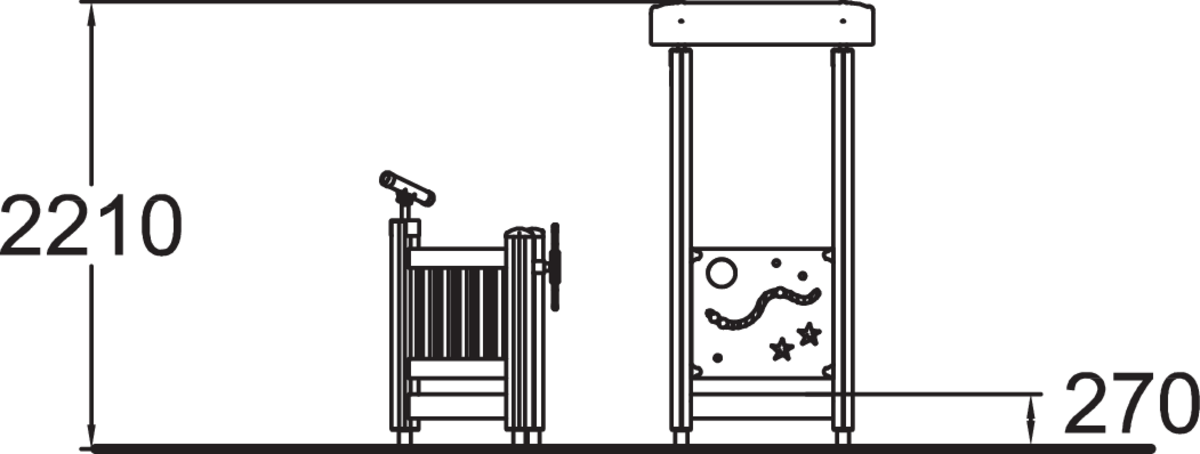

SIDE VIEW 137815 (.dwg)

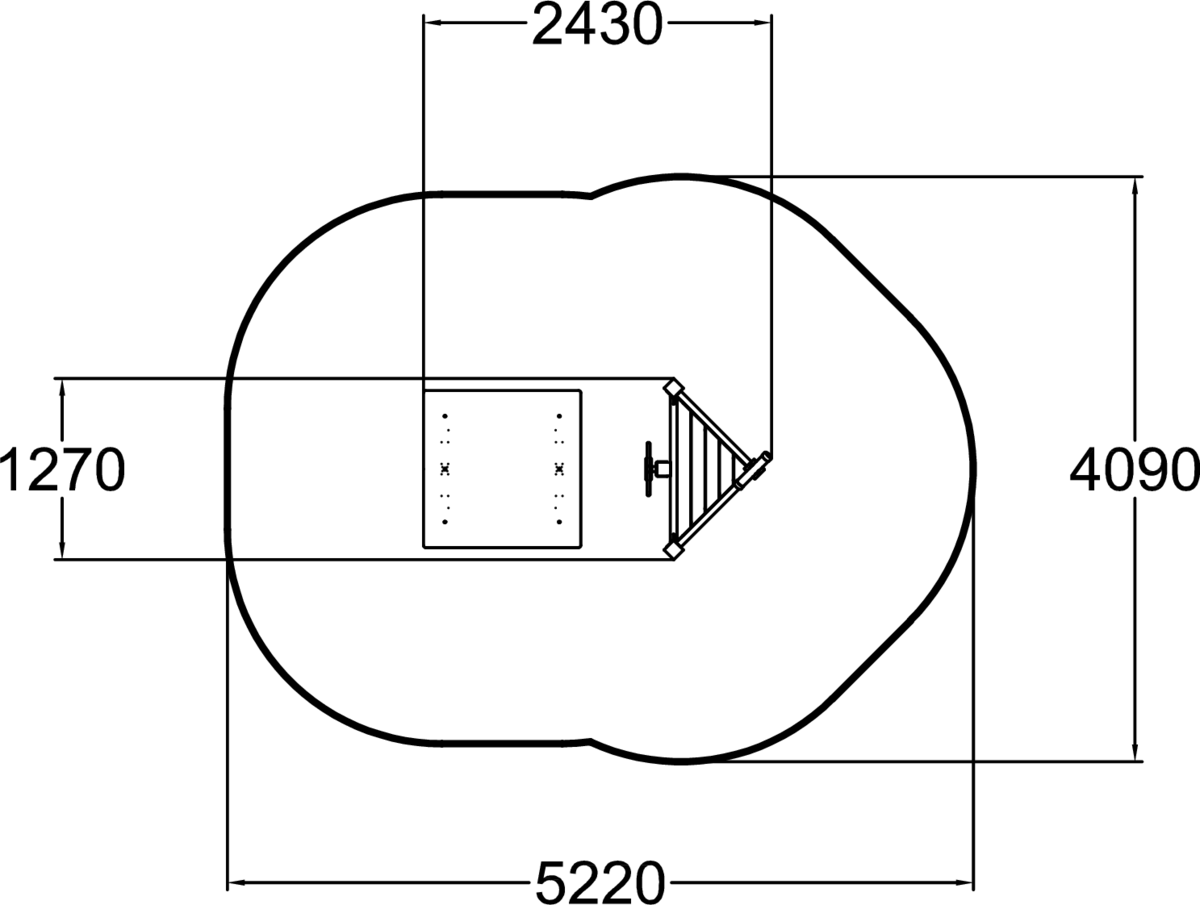

TOP VIEW 137815 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
5220
FALLING SPACE WIDTH, MM
4090
Max. free fall height, mm
270
Impact area, m²
0
Product height, mm
2210
Product lenght, mm
2430
Product width, mm
1270
Height required, mm
2210
