Home
/
spareparts
Spare parts
175035

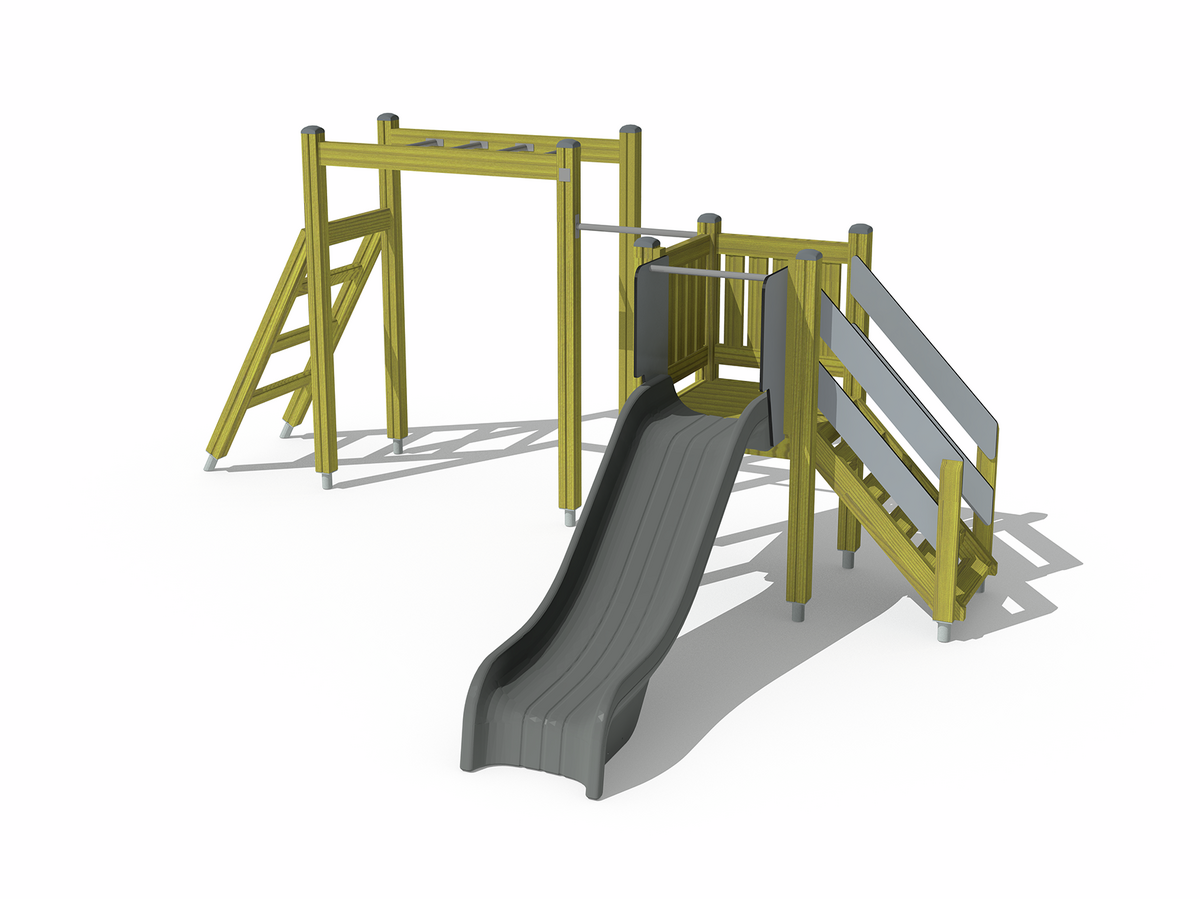

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Spare part sets
905833SP
PLASTIC SLIDE +870 DEEP GREY
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703130
LADDER
703130
LADDER
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706511
POST 93x93x1870 IMPREGNATED
706511
POST 93x93x1870 IMPREGNATED
706514
BOOM 70x120x1504 IMPREGNATED
706514
BOOM 70x120x1504 IMPREGNATED
706746
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175035 (.dwg)

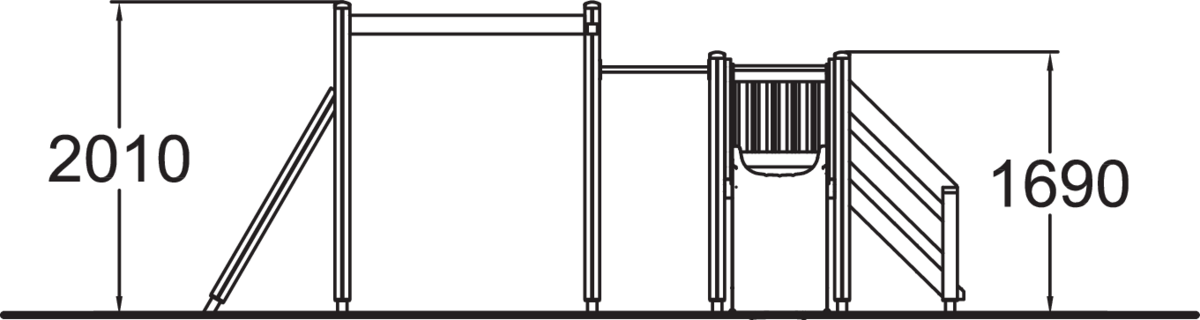

SIDE VIEW 175035 (.dwg)

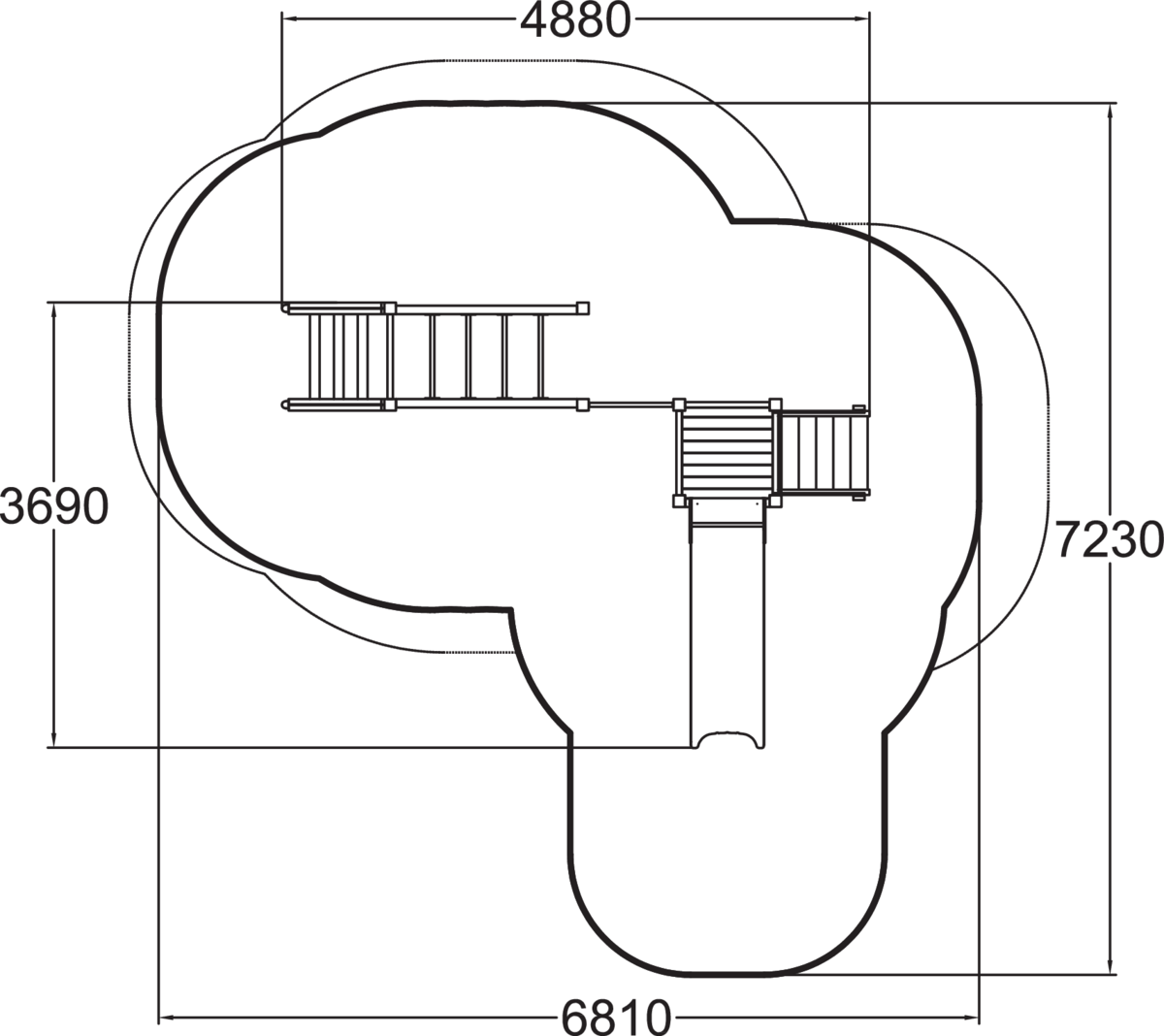

TOP VIEW 175035 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
7500
FALLING SPACE WIDTH, MM
7500
Max. free fall height, mm
1920
Impact area, m²
32
Product height, mm
2010
Product lenght, mm
4880
Product width, mm
3690
Height required, mm
3270
IMPACT AREA LENGTH, MM
6810
IMPACT AREA WIDTH, MM
7230
