139105M

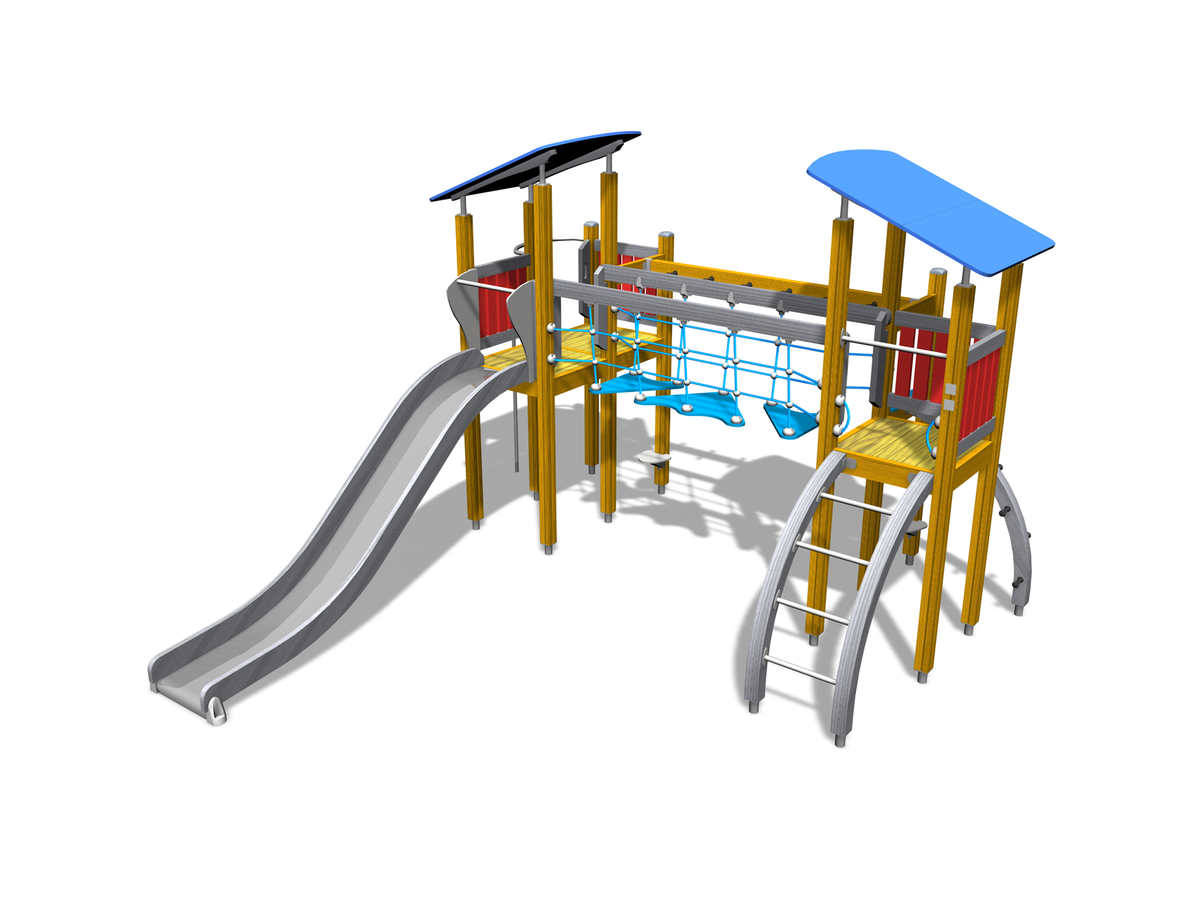

ACTIVITY TOWER

Downloads

Spare part sets

003251 HANDLE PACKAGE JOMO 003251 HANDLE PACKAGE JOMO
701052 701052
Not available
Inquire spare parts for the product using a form Open form for spare part questions
701155 701155
701155SP BRIDGE 2400 TRIANGLE STEP 80M (rail grey, net blue) 701155SP BRIDGE 2400 TRIANGLE STEP 80M (rail grey, net blue)
701428 701428
701428SP POST 93x93x2250 YELLOW 701428SP POST 93x93x2250 YELLOW
701431 701431
701431SP POST 95x95x2550 YELLOW 701431SP POST 95x95x2550 YELLOW
701434 701434
701434SP POST 93x93x2850 YELLOW 701434SP POST 93x93x2850 YELLOW
701478 701478
701478SP BOOM 45x145x724 YELLOW 701478SP BOOM 45x145x724 YELLOW
701553 701553
Not available
Inquire spare parts for the product using a form Open form for spare part questions
701555 LIUKUMÄKI,1470 701555 LIUKUMÄKI,1470
701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
706450-604SP SLIDE ELEMENT +1470 GREY DEEP 706450-604SP SLIDE ELEMENT +1470 GREY DEEP 701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
701591 701591
706746-607SP WALL WOOD 80M 45x640x701 RED 706746-607SP WALL WOOD 80M 45x640x701 RED
701600 701600
705955-701SP ROOF PLATES BLUE 705955-701SP ROOF PLATES BLUE
701605 701605
Not available
Inquire spare parts for the product using a form Open form for spare part questions
701606 DEEP FOUNDATION FOOT 701606 DEEP FOUNDATION FOOT
701606 DEEP FOUNDATION FOOT 701606 DEEP FOUNDATION FOOT
701626 701626
007441SP FIREMAN BAR +1470, 80M BAR NEW 007441SP FIREMAN BAR +1470, 80M BAR NEW
701627 CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE 701627 CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE
706475-604SP CLIMBING ELEMENT 1387x1020x325 GREY 706475-604SP CLIMBING ELEMENT 1387x1020x325 GREY
701666 701666
701666SP STEP 15x265x275 DARK GREY 701666SP STEP 15x265x275 DARK GREY
701667 701667
Not available
Inquire spare parts for the product using a form Open form for spare part questions
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
702750 702750
907701-216SP HAND GRIP 40x545x114 GRAY 907701-216SP HAND GRIP 40x545x114 GRAY
702792 702792
707315SP HAND GRIP Ø16 BLACK 707315SP HAND GRIP Ø16 BLACK
702899 702899
907701-216SP HAND GRIP 40x545x114 GRAY 907701-216SP HAND GRIP 40x545x114 GRAY
901596 SLIDE BAR 90x90x2090 901596 SLIDE BAR 90x90x2090
901596 SLIDE BAR 90x90x2090 901596 SLIDE BAR 90x90x2090
901787 901787
Not available
Inquire spare parts for the product using a form Open form for spare part questions
901790 HORIZONTAL BAR, 50x130x505 901790 HORIZONTAL BAR, 50x130x505
901790 HORIZONTAL BAR, 50x130x505 901790 HORIZONTAL BAR, 50x130x505
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909521 BASE FOOT, L=700 909521 BASE FOOT, L=700
909511 909511
909519 909519
909521SP BASE FOOT, L=700 909521SP BASE FOOT, L=700
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650 909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
008710 008710
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)

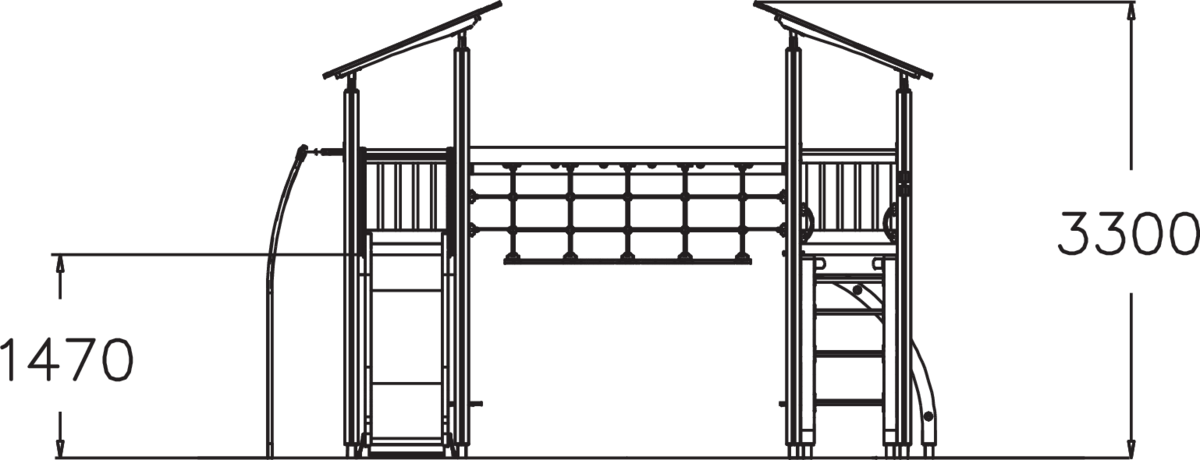

Technical information

  • User age
    4
  • Max. free fall height, mm
    1470

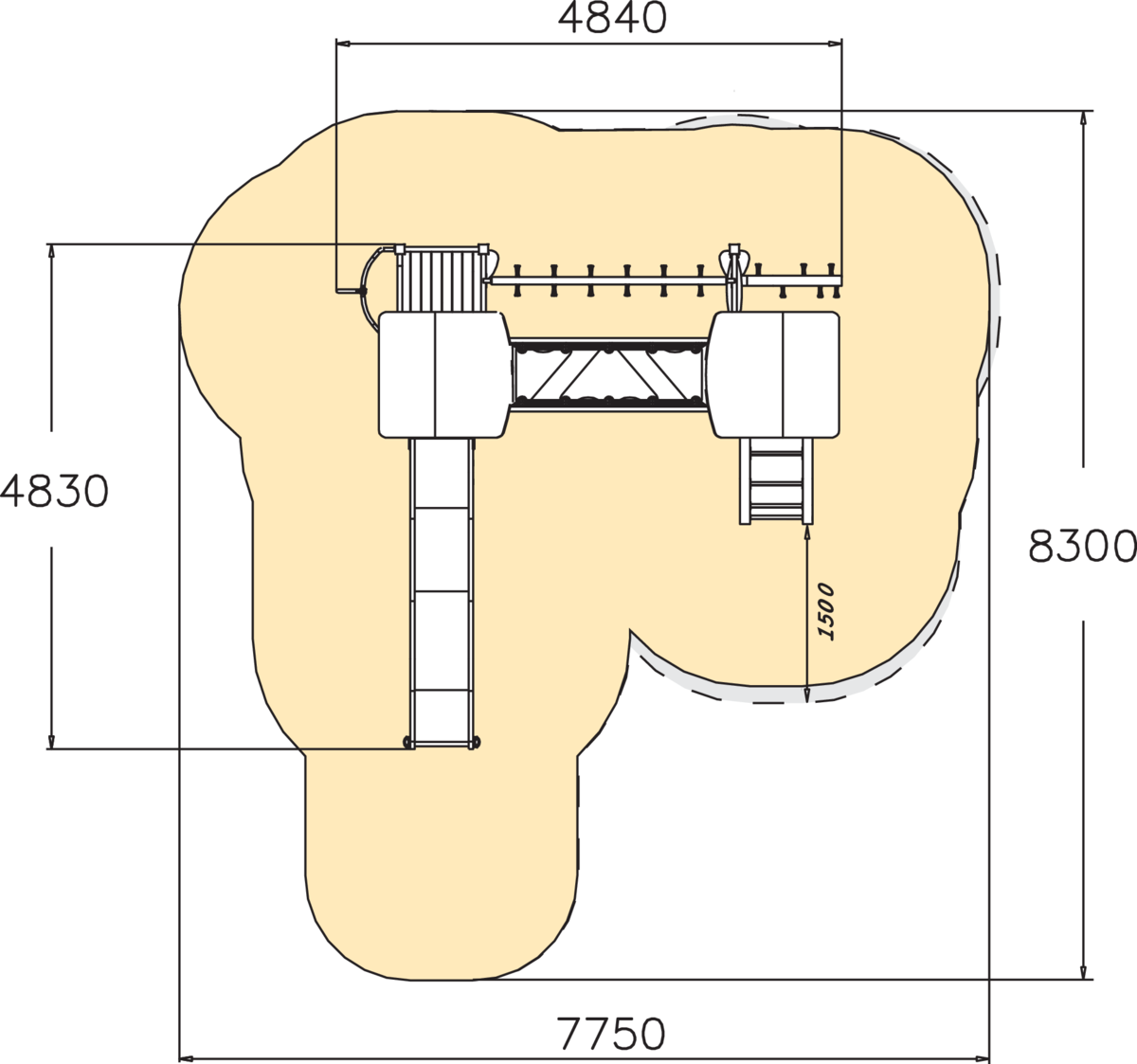

  • Impact area, m²
    44,3
  • Product height, mm
    3300
  • Product lenght, mm
    4840
  • Product width, mm
    4830
  • Height required, mm
    3300
  • IMPACT AREA LENGTH, MM
    7750
  • IMPACT AREA WIDTH, MM
    8300
