Home
/
spareparts
Spare parts
137603

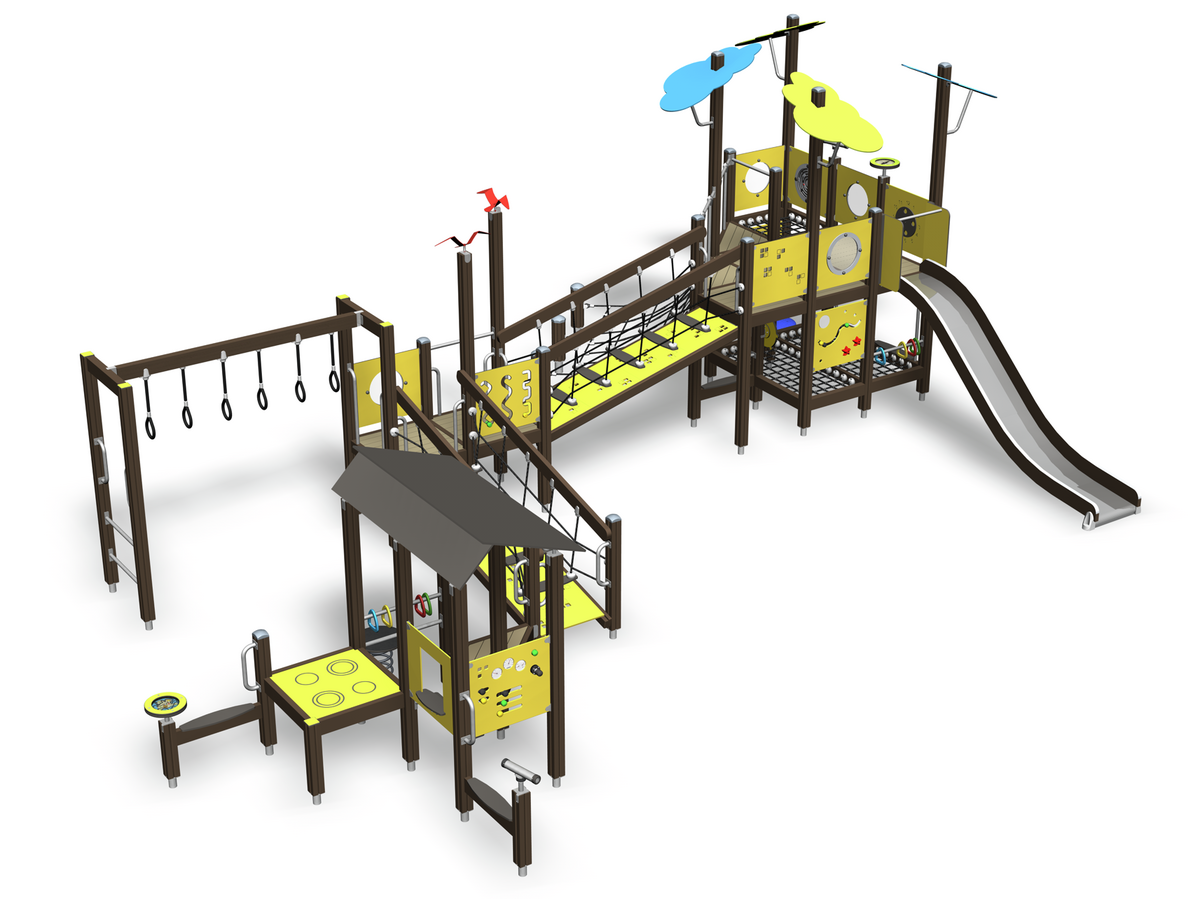

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706453
706453-704SP
STEP 15x145x600 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
706783
706783SP
DESK/ SEAT 15x170x700 DARK GREY
707333
FASTENER KIT FUNCTION ELEMENT
707333
FASTENER KIT FUNCTION ELEMENT
707436
FLOOR 750x770 IMPREGNATED
707436
FLOOR 750x770 IMPREGNATED
707441
FLOOR 750x770 IMPREGNATED
707441
FLOOR 750x770 IMPREGNATED
707732
907688-216SP
HAND GRIP 40x765x114 GREY
907701-216SP
HAND GRIP 40x545x114 GRAY
900733
900733SP
SEAT / STEP Ø450x85 BLUE
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905879
RUDDER ATTACHMENT PIECE
905879
RUDDER ATTACHMENT PIECE
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706735-305
706735-305SP
RINGS PAIR FINNO Ø16x562mm BLACK ROPE
706511-602
POST 93x93x1870 DARK BROWN
706511-602
POST 93x93x1870 DARK BROWN
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
705369-707
PLATE GREEN
705369-707
PLATE GREEN
706439-602
BOOM 45x120x704 DARK BROWN
706439-602
BOOM 45x120x704 DARK BROWN
706510-602
706510-602SP
BOOM 80MD 45x120x1030 DARK BROWN
707303-701
COMPASS BLUE
707303-701
COMPASS BLUE
707260-305
707260-305SP
NET ASSEMBLY 2375x600 BLACK
706441-602
POST 93x93x1550 DARK BROWN
706441-602
POST 93x93x1550 DARK BROWN
706371-702
706371-702SP
SLIDE RAIL PLATE 15x747x343 YELLOW
707271-602
BOOM 70x95x2480 SAFETY PLATE DARK BROWN
707271-602
BOOM 70x95x2480 SAFETY PLATE DARK BROWN
707597-602
POST 140x140x450 WITH 8 GROOVES DARK BROWN
707597-602
POST 140x140x450 WITH 8 GROOVES DARK BROWN
908044-216
TUBE Ø337x679
908044-216
TUBE Ø337x679
705369-706
PLATE RED
705369-706
PLATE RED
707320-702
002031SP
RUDDER PLATE ELEMENT YELLOW
907667-216
SUPPORT PEARL LIGHT GREY
907667-216
SUPPORT PEARL LIGHT GREY
907783-216
SUPPORT 120x40x180 PEARL LIGHT GREY
907783-216
SUPPORT 120x40x180 PEARL LIGHT GREY
707600-305
707600-305SP
NET 2000x1850 BLACK
707272-702
PLATE 15x630x590 YELLOW
707272-702
PLATE 15x630x590 YELLOW
706512-602
BOOM 70x120x704 DARK BROWN
706512-602
BOOM 70x120x704 DARK BROWN
707418-702
707418-702SP
CLIMBING RAMP 80M + 870 YELLOW
707590-305
707590-305SP
NET 755x755 BLACK
008986
008710SP
FLOOR 80M (008701)
707255-602
RAIL 45x120x2480 DARK BROWN
707255-602
RAIL 45x120x2480 DARK BROWN
706481-702
PLATE 93x93x10 TOP HAT FFL YELLOW
706481-702SP
PLATE 93x93x10 TOP HAT FFL YELLOW
707305-703
707305-703SP
TREASURE MAP LIME
707375-702
PLATE 15x375x750 YELLOW
707375-702
PLATE 15x375x750 YELLOW
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
707420-602
POST 93x93x1370 DARK BROWN
707420-602
POST 93x93x1370 DARK BROWN
706450-602
706450-602SP
SLIDE ELEMENT +1470 DARK BROWN DEEP
706894-602
POST 93x93x950 DARK BROWN
706894-602
POST 93x93x950 DARK BROWN
707453-702
707453-702SP
WINDOW PLAY PANEL 640x702 YELLOW
707670-602
POST 93x93x600 DARK BROWN
707670-602
POST 93x93x600 DARK BROWN
707593-602
BOOM 45x120x1030 DARK BROWN
707593-602
BOOM 45x120x1030 DARK BROWN
707595-305
707595-305SP
NET ASSEMBLY 755x1555 BLACK
706484-602
POST 93x93x2150 DARK BROWN
706484-602
POST 93x93x2150 DARK BROWN
907688-216
907688-216SP
HAND GRIP 40x765x114 GREY
705369-702
PLATE YELLOW
705369-702
PLATE YELLOW
706790-602
POST 93x93x3500 DARK BROWN
706790-602
POST 93x93x3500 DARK BROWN
706436-702
706436-702SP
WALL LAMINATE 80M 10x640x701 YELLOW
707331-602
POST 93x93x470 DARK BROWN
707331-602
POST 93x93x470 DARK BROWN
706772-702
706772-702SP
ROULETTE PLAY PANEL 640x702 YELLOW
706810-602
POST 93x93x2650 DARK BROWN
706810-602
POST 93x93x2650 DARK BROWN
706466-602
POST 93x93x1025 DARK BROWN
706466-602
POST 93x93x1025 DARK BROWN
705369-701
PLATE BLUE
705369-701
PLATE BLUE
707374-602
BOOM 45x120x1504 DARK BROWN
707374-602
BOOM 45x120x1504 DARK BROWN
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137603 (.dwg)

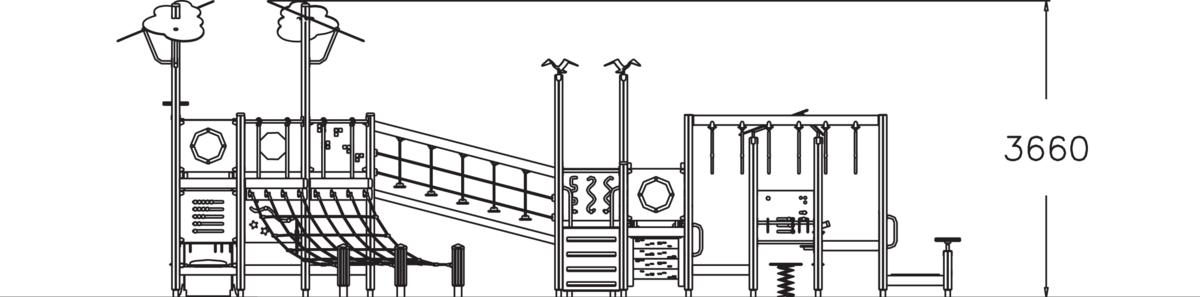

SIDE VIEW 137603sl (.dwg)

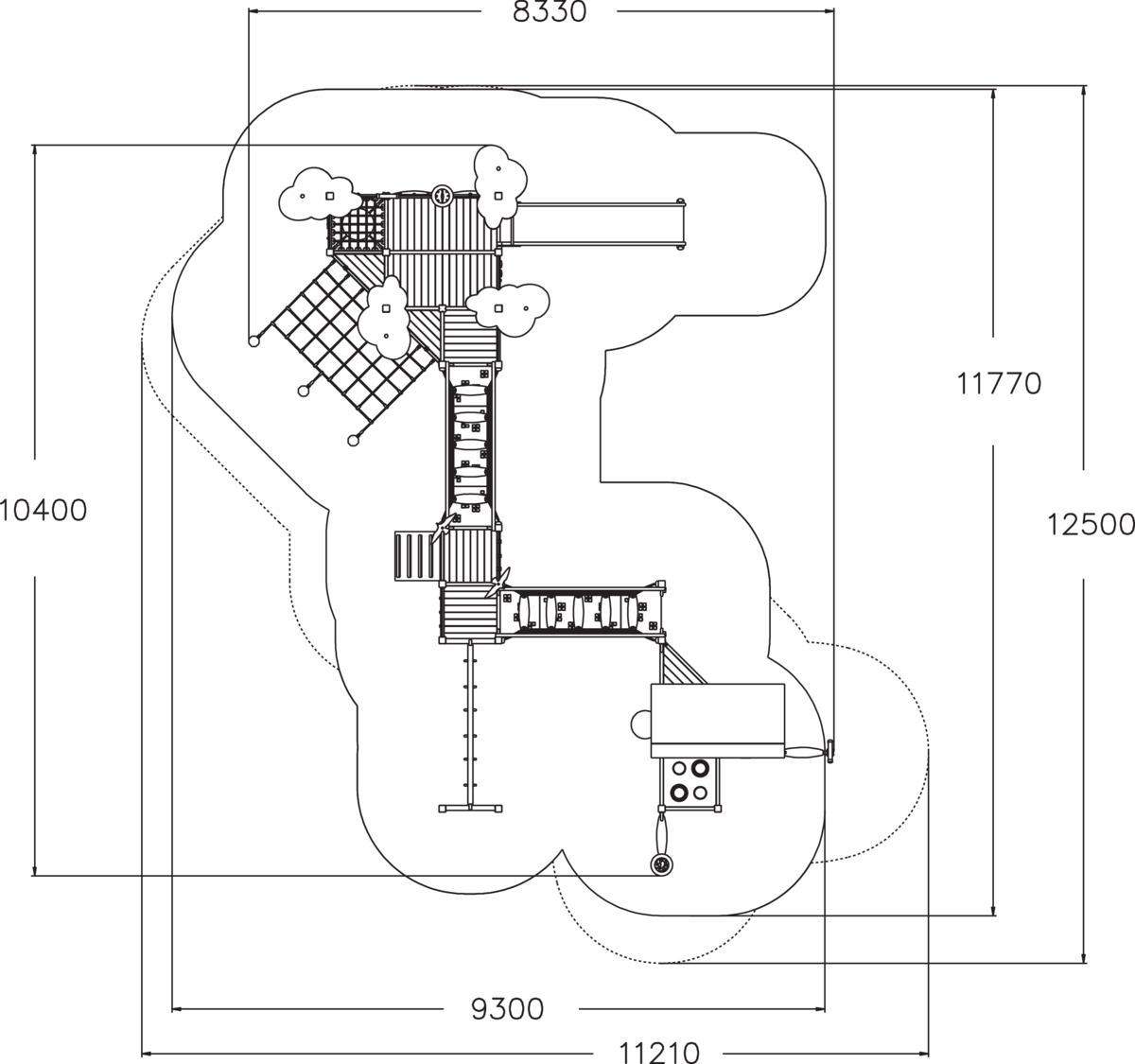

TOP VIEW 137603 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
11210
FALLING SPACE WIDTH, MM
12500
Max. free fall height, mm
1470
Impact area, m²
76
Product height, mm
3660
Product lenght, mm
8330
Product width, mm
10400
Height required, mm
3660
IMPACT AREA LENGTH, MM
9300
IMPACT AREA WIDTH, MM
11770
