Home
/
spareparts
Spare parts
137602

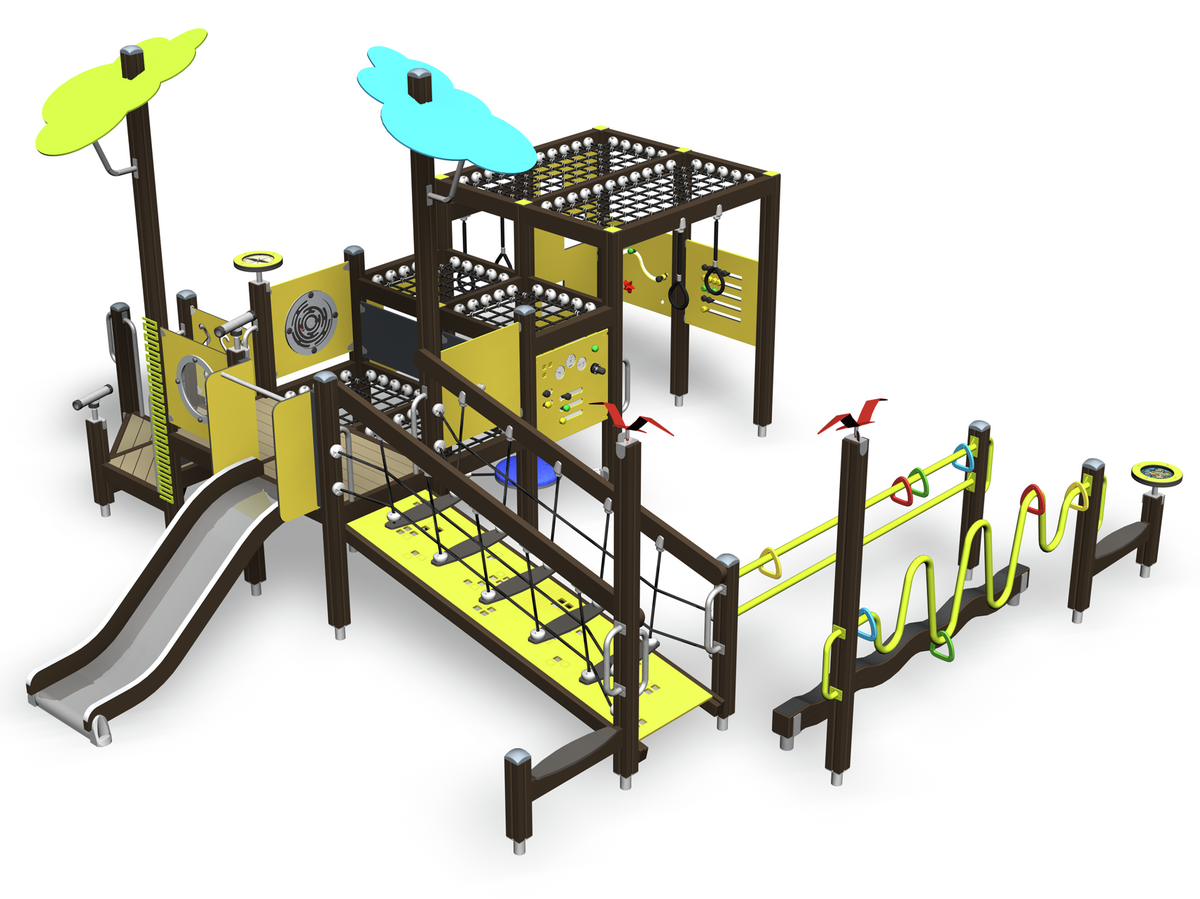

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706453
706453-704SP
STEP 15x145x600 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
706896
PLATE 15x150x703 DARK GREY
706896
PLATE 15x150x703 DARK GREY
707732
907688-216SP
HAND GRIP 40x765x114 GREY
907701-216SP
HAND GRIP 40x545x114 GRAY
900733
900733SP
SEAT / STEP Ø450x85 BLUE
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
707255-602
RAIL 45x120x2480 DARK BROWN
707255-602
RAIL 45x120x2480 DARK BROWN
706439-602
BOOM 45x120x704 DARK BROWN
706439-602
BOOM 45x120x704 DARK BROWN
705369-706
PLATE RED
705369-706
PLATE RED
701401-602
701401-602SP
POST 93X93X1250 DARK BROWN
705369-701
PLATE BLUE
705369-701
PLATE BLUE
908253-217
BAR 2298x130x60 STRAIGHT LIME GREEN
908253-217
BAR 2298x130x60 STRAIGHT LIME GREEN
706540-702
706540-702SP
CLIMBING WALL 20x702x415 YELLOW
705369-707
PLATE GREEN
705369-707
PLATE GREEN
707271-602
BOOM 70x95x2480 SAFETY PLATE DARK BROWN
707271-602
BOOM 70x95x2480 SAFETY PLATE DARK BROWN
706441-602
POST 93x93x1550 DARK BROWN
706441-602
POST 93x93x1550 DARK BROWN
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
706772-702
706772-702SP
ROULETTE PLAY PANEL 640x702 YELLOW
008986
008710SP
FLOOR 80M (008701)
707305-703
707305-703SP
TREASURE MAP LIME
707374-602
BOOM 45x120x1504 DARK BROWN
707374-602
BOOM 45x120x1504 DARK BROWN
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
707303-701
COMPASS BLUE
707303-701
COMPASS BLUE
706510-602
706510-602SP
BOOM 80MD 45x120x1030 DARK BROWN
706511-602
POST 93x93x1870 DARK BROWN
706511-602
POST 93x93x1870 DARK BROWN
706481-702
PLATE 93x93x10 TOP HAT FFL YELLOW
706481-702SP
PLATE 93x93x10 TOP HAT FFL YELLOW
706894-602
POST 93x93x950 DARK BROWN
706894-602
POST 93x93x950 DARK BROWN
706905-602
POST 93x93x1870 DARK BROWN
706905-602
POST 93x93x1870 DARK BROWN
706514-602
BOOM 70x120x1504 DARK BROWN
706514-602
BOOM 70x120x1504 DARK BROWN
707272-702
PLATE 15x630x590 YELLOW
707272-702
PLATE 15x630x590 YELLOW
707331-602
POST 93x93x470 DARK BROWN
707331-602
POST 93x93x470 DARK BROWN
706444-602
POST 93x93x3200 DARK BROWN
706444-602
POST 93x93x3200 DARK BROWN
707260-305
707260-305SP
NET ASSEMBLY 2375x600 BLACK
907688-216
907688-216SP
HAND GRIP 40x765x114 GREY
706452-602
706452-602SP
SLIDE ELEMENT +870 DARK BROWN DEEP
707422-602
POST 93x93x1370 DARK BROWN
707422-602
POST 93x93x1370 DARK BROWN
707595-305
707595-305SP
NET ASSEMBLY 755x1555 BLACK
707590-305
707590-305SP
NET 755x755 BLACK
705369-702
PLATE YELLOW
705369-702
PLATE YELLOW
706371-702
706371-702SP
SLIDE RAIL PLATE 15x747x343 YELLOW
707453-702
707453-702SP
WINDOW PLAY PANEL 640x702 YELLOW
707670-602
POST 93x93x600 DARK BROWN
707670-602
POST 93x93x600 DARK BROWN
706735-305
706735-305SP
RINGS PAIR FINNO Ø16x562mm BLACK ROPE
Downloads
ACTIVITY TOWER (.dwg)
InstallationInstructions (.pdf)

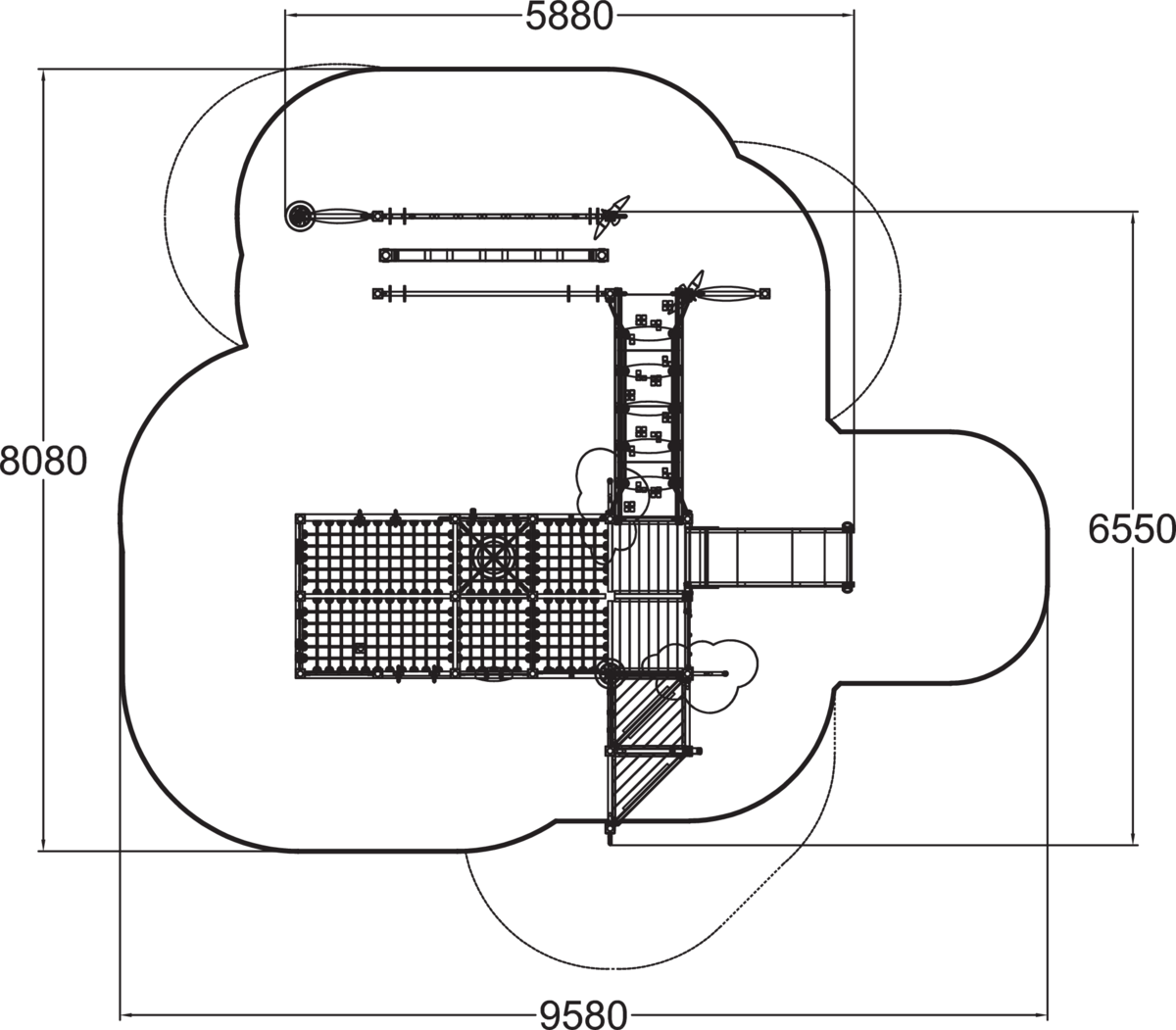

TOP VIEW 137602 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
9350
FALLING SPACE WIDTH, MM
9580
Max. free fall height, mm
1970
Impact area, m²
56

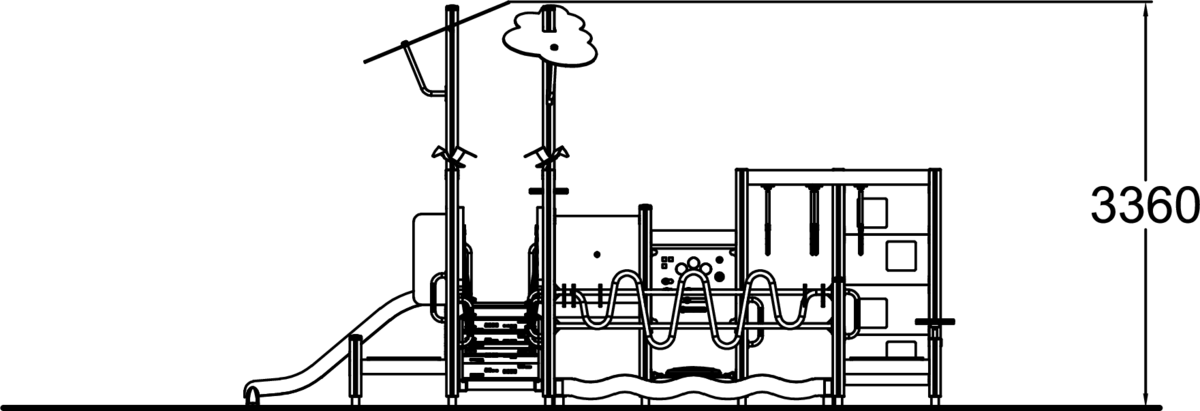

Product height, mm
3360
Product lenght, mm
6550
Product width, mm
5880
Height required, mm
3470
IMPACT AREA LENGTH, MM
8080
IMPACT AREA WIDTH, MM
9580
