137601

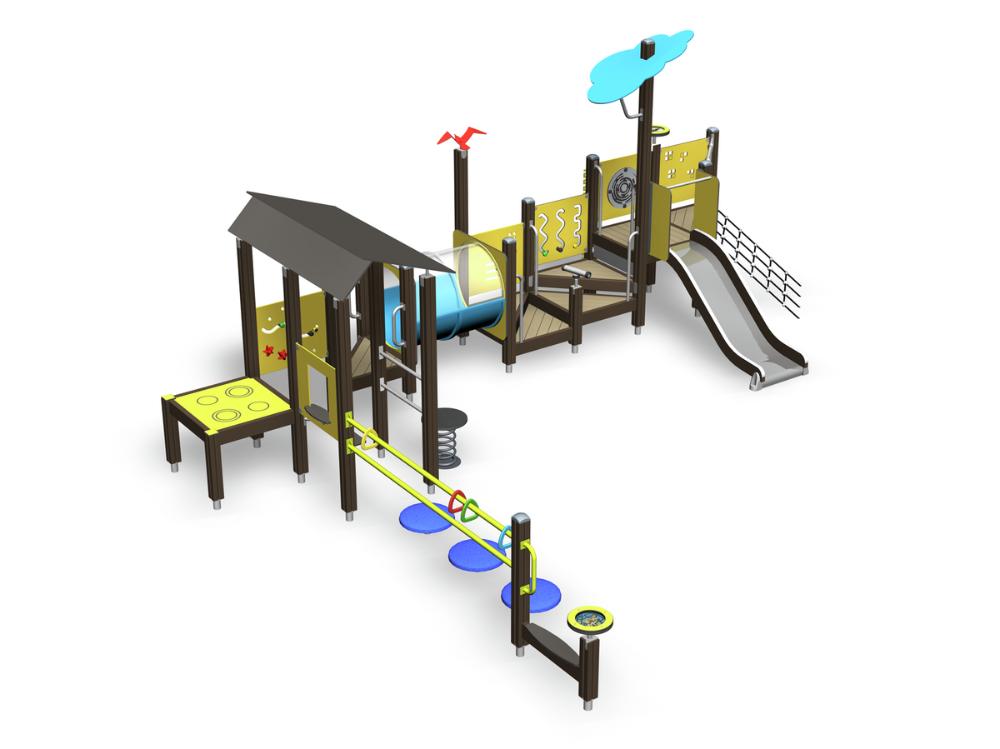

ACTIVITY TOWER

Downloads
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
706453 706453
706453-704SP STEP 15x145x600 DARK GREY 706453-704SP STEP 15x145x600 DARK GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706508 BATTEN 32x45x650 BRACKET 706508 BATTEN 32x45x650 BRACKET
706508 BATTEN 32x45x650 BRACKET 706508 BATTEN 32x45x650 BRACKET
706539 706539
Not available
Inquire spare parts for the product using a form Open form for spare part questions
706744 PLATFORM 15x145x380 DESK DARK GREY 706744 PLATFORM 15x145x380 DESK DARK GREY
706744 PLATFORM 15x145x380 DESK DARK GREY 706744 PLATFORM 15x145x380 DESK DARK GREY
706896 PLATE 15x150x703 DARK GREY 706896 PLATE 15x150x703 DARK GREY
706896 PLATE 15x150x703 DARK GREY 706896 PLATE 15x150x703 DARK GREY
707732 707732
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY 907701-216SP HAND GRIP 40x545x114 GRAY 907701-216SP HAND GRIP 40x545x114 GRAY
901868 901868
901868SP HANDRAIL BAR Ø34x598 GREY 901868SP HANDRAIL BAR Ø34x598 GREY
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
905829 905829
905829SP BASE MOD.STRAIGHT (SEE-THROUGH) 905829SP BASE MOD.STRAIGHT (SEE-THROUGH)
909511 909511
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650
909519 909519
909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
705369-701 PLATE BLUE 705369-701 PLATE BLUE
705369-701 PLATE BLUE 705369-701 PLATE BLUE
706441-602 POST 93x93x1550 DARK BROWN 706441-602 POST 93x93x1550 DARK BROWN
706441-602 POST 93x93x1550 DARK BROWN 706441-602 POST 93x93x1550 DARK BROWN
706452-602 706452-602
706452-602SP SLIDE ELEMENT +870 DARK BROWN DEEP 706452-602SP SLIDE ELEMENT +870 DARK BROWN DEEP
707351-305 707351-305
707351-305SP CLIMBING ELEMENT +870 80MD DEEP BLACK 707351-305SP CLIMBING ELEMENT +870 80MD DEEP BLACK
907667-216 SUPPORT PEARL LIGHT GREY 907667-216 SUPPORT PEARL LIGHT GREY
907667-216 SUPPORT PEARL LIGHT GREY 907667-216 SUPPORT PEARL LIGHT GREY
705369-707 PLATE GREEN 705369-707 PLATE GREEN
705369-707 PLATE GREEN 705369-707 PLATE GREEN
707331-602 POST 93x93x470 DARK BROWN 707331-602 POST 93x93x470 DARK BROWN
707331-602 POST 93x93x470 DARK BROWN 707331-602 POST 93x93x470 DARK BROWN
707375-702 PLATE 15x375x750 YELLOW 707375-702 PLATE 15x375x750 YELLOW
707375-702 PLATE 15x375x750 YELLOW 707375-702 PLATE 15x375x750 YELLOW
908044-216 TUBE Ø337x679 908044-216 TUBE Ø337x679
908044-216 TUBE Ø337x679 908044-216 TUBE Ø337x679
705369-706 PLATE RED 705369-706 PLATE RED
705369-706 PLATE RED 705369-706 PLATE RED
707303-701 COMPASS BLUE 707303-701 COMPASS BLUE
707303-701 COMPASS BLUE 707303-701 COMPASS BLUE
008986 008986
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)
705369-702 PLATE YELLOW 705369-702 PLATE YELLOW
705369-702 PLATE YELLOW 705369-702 PLATE YELLOW
706511-602 POST 93x93x1870 DARK BROWN 706511-602 POST 93x93x1870 DARK BROWN
706511-602 POST 93x93x1870 DARK BROWN 706511-602 POST 93x93x1870 DARK BROWN
706439-602 BOOM 45x120x704 DARK BROWN 706439-602 BOOM 45x120x704 DARK BROWN
706439-602 BOOM 45x120x704 DARK BROWN 706439-602 BOOM 45x120x704 DARK BROWN
706481-702 PLATE 93x93x10 TOP HAT FFL YELLOW 706481-702 PLATE 93x93x10 TOP HAT FFL YELLOW
706481-702SP PLATE 93x93x10 TOP HAT FFL YELLOW 706481-702SP PLATE 93x93x10 TOP HAT FFL YELLOW
704417-602 POST 93x93x2900 DARK BROWN 704417-602 POST 93x93x2900 DARK BROWN
704417-602 POST 93x93x2900 DARK BROWN 704417-602 POST 93x93x2900 DARK BROWN
008985 008985
008714SP TRIANGLE FLOOR 80M ( 008705 ) 008714SP TRIANGLE FLOOR 80M ( 008705 )
907694-216 907694-216
907694-216SP BAR ELEMENT40x120x704 80M GREY 907694-216SP BAR ELEMENT40x120x704 80M GREY
706894-602 POST 93x93x950 DARK BROWN 706894-602 POST 93x93x950 DARK BROWN
706894-602 POST 93x93x950 DARK BROWN 706894-602 POST 93x93x950 DARK BROWN
707305-703 707305-703
707305-703SP TREASURE MAP LIME 707305-703SP TREASURE MAP LIME
706436-702 706436-702
706436-702SP WALL LAMINATE 80M 10x640x701 YELLOW 706436-702SP WALL LAMINATE 80M 10x640x701 YELLOW
706371-702 706371-702
706371-702SP SLIDE RAIL PLATE 15x747x343 YELLOW 706371-702SP SLIDE RAIL PLATE 15x747x343 YELLOW
706466-602 POST 93x93x1025 DARK BROWN 706466-602 POST 93x93x1025 DARK BROWN
706466-602 POST 93x93x1025 DARK BROWN 706466-602 POST 93x93x1025 DARK BROWN
908253-217 BAR 2298x130x60 STRAIGHT LIME GREEN 908253-217 BAR 2298x130x60 STRAIGHT LIME GREEN
908253-217 BAR 2298x130x60 STRAIGHT LIME GREEN 908253-217 BAR 2298x130x60 STRAIGHT LIME GREEN
706510-602 706510-602
706510-602SP BOOM 80MD 45x120x1030 DARK BROWN 706510-602SP BOOM 80MD 45x120x1030 DARK BROWN
706512-602 BOOM 70x120x704 DARK BROWN 706512-602 BOOM 70x120x704 DARK BROWN
706512-602 BOOM 70x120x704 DARK BROWN 706512-602 BOOM 70x120x704 DARK BROWN
701401-602 701401-602
701401-602SP POST 93X93X1250 DARK BROWN 701401-602SP POST 93X93X1250 DARK BROWN
907688-216 907688-216
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY

Technical information

  • User age
    1+

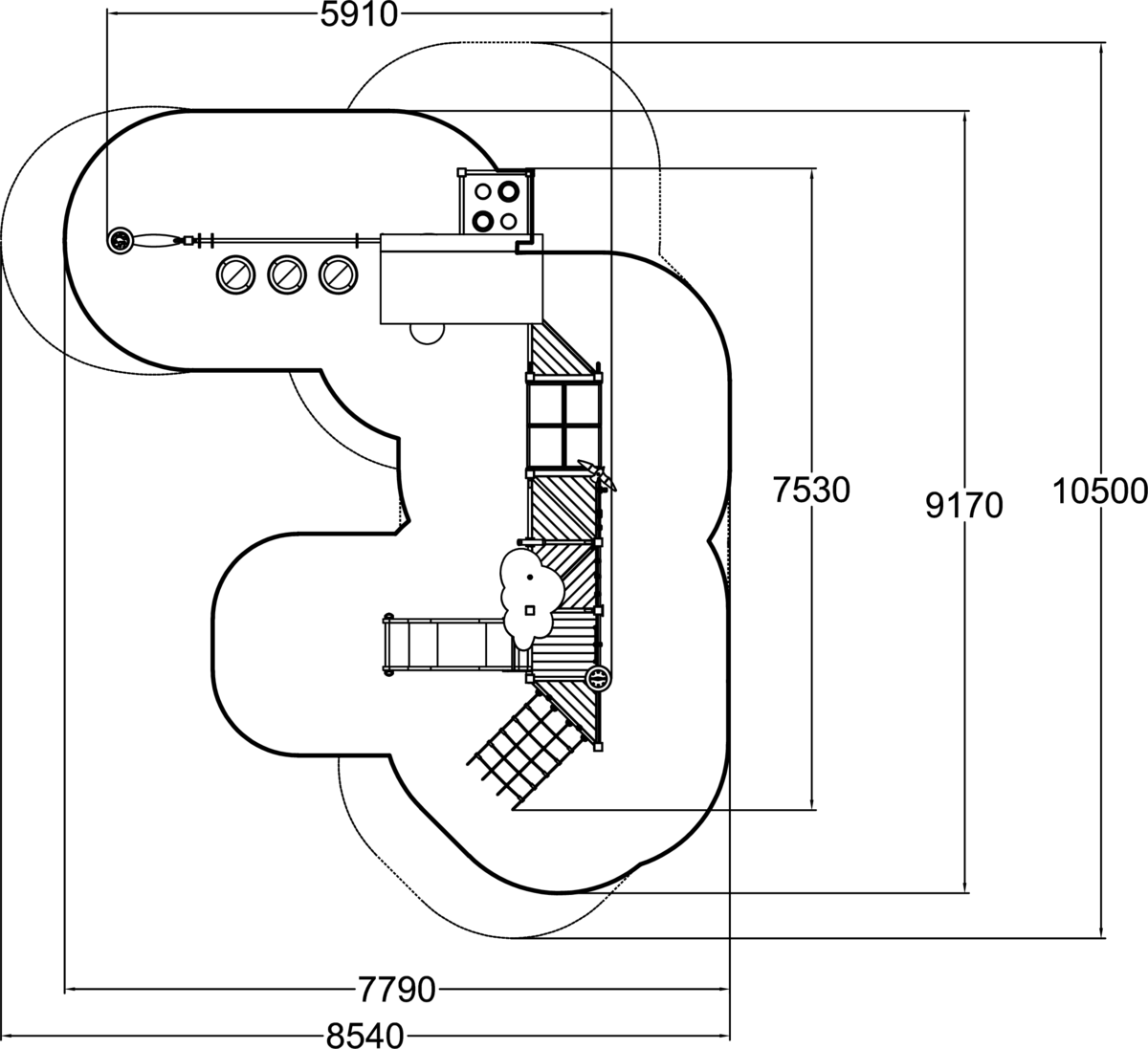

  • FALLING SPACE LENGTH, MM
    10500
  • FALLING SPACE WIDTH, MM
    8540
  • Max. free fall height, mm
    1000
  • Impact area, m²
    45.5

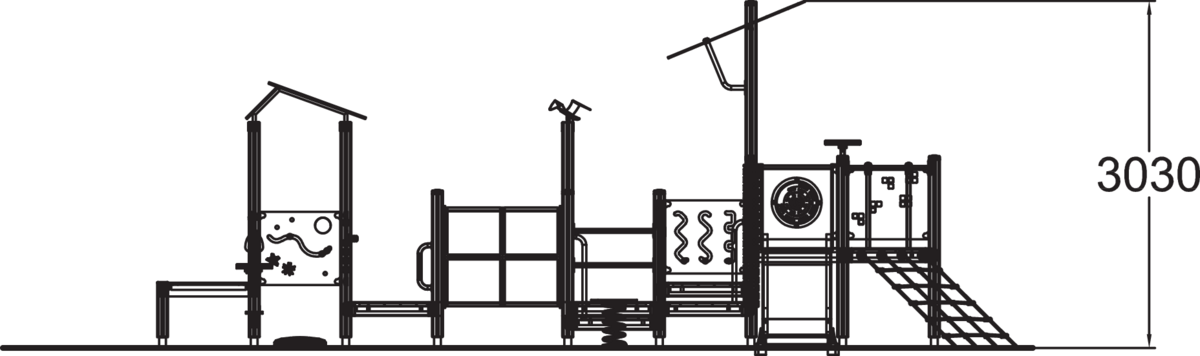

  • Product height, mm
    3040
  • Product lenght, mm
    5910
  • Product width, mm
    7530
  • Height required, mm
    3040
  • IMPACT AREA LENGTH, MM
    7790
  • IMPACT AREA WIDTH, MM
    9170
