Home
/
spareparts
Spare parts
137346M

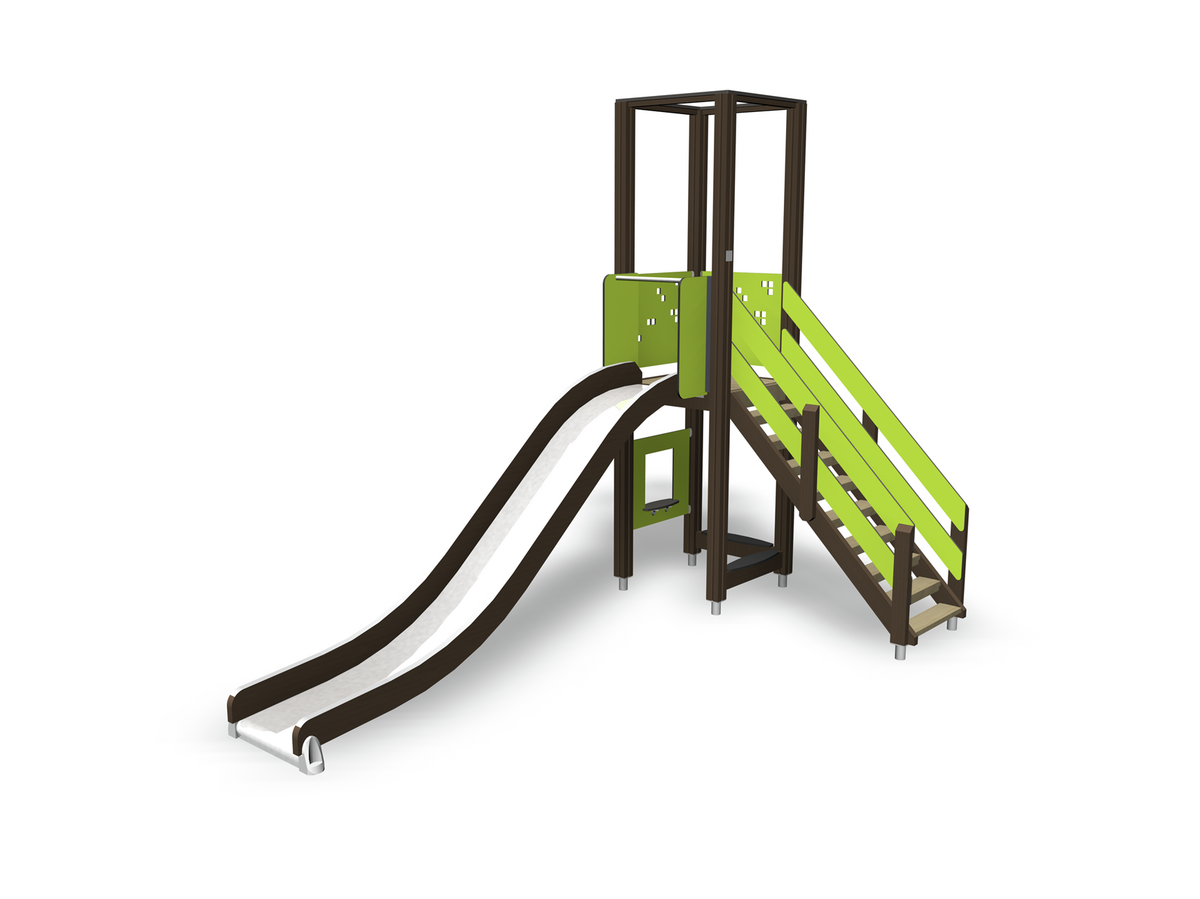

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706428
PLATE
706428SP
ROOF PLATE 15x93x888.5 DARK GREY
706429
BATTEN 32x45x706 IMPREGNATED
706429
BATTEN 32x45x706 IMPREGNATED
706436
706436-703SP
WALL LAMINATE 80M 10x640x701 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706450
706450SP
SLIDE ELEMENT +1470 IMPREGNATED DEEP
706453
706453-704SP
STEP 15x145x600 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
707152
707152-703SP
HANDRAIL STAIR 15x145x2009 LIME
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137346M (.dwg)

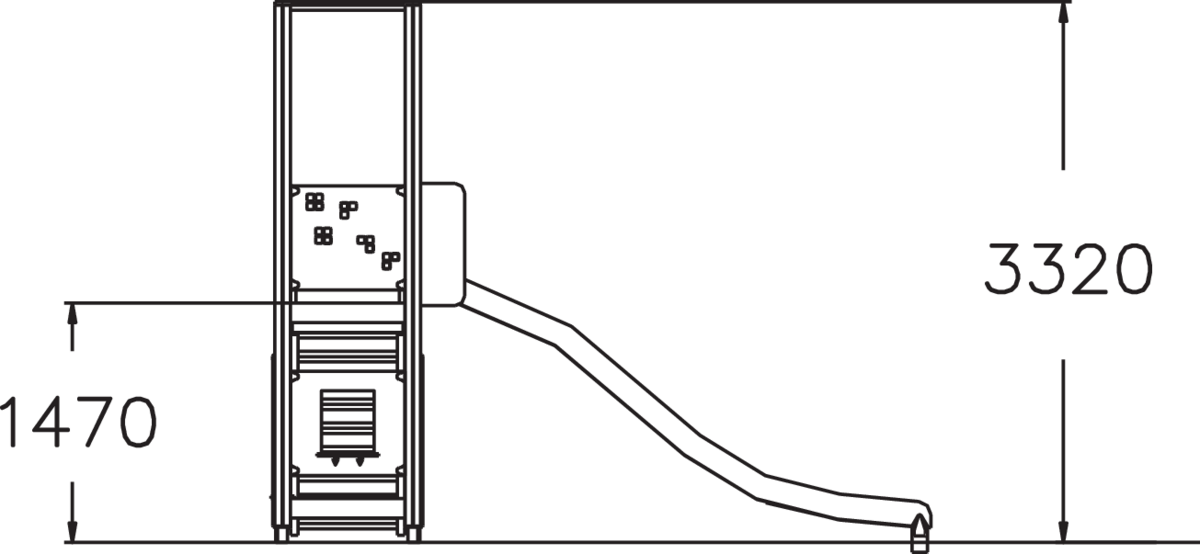

SIDE VIEW 137346M (.dwg)

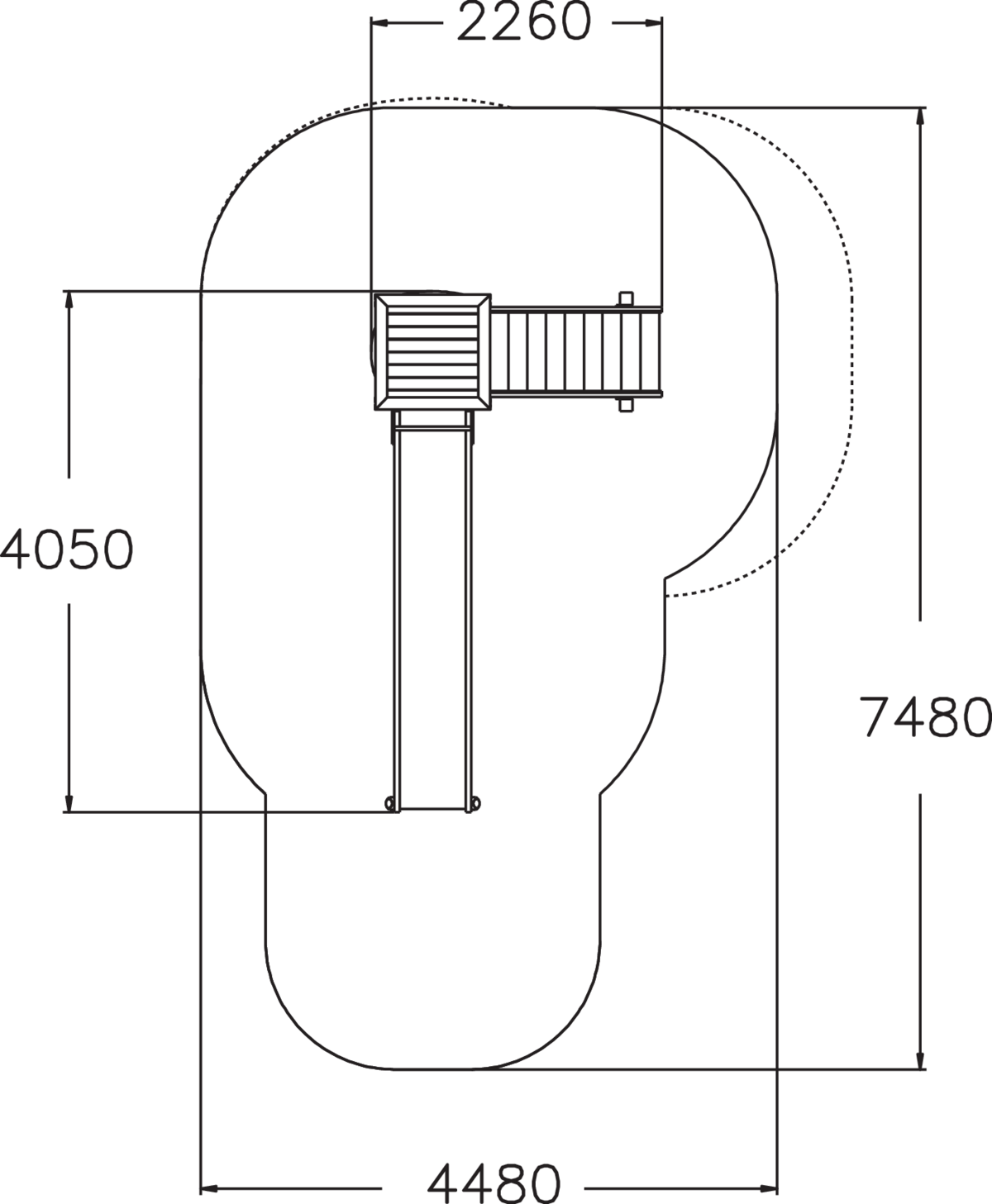

TOP VIEW 137346M (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
5200
FALLING SPACE WIDTH, MM
7030
Max. free fall height, mm
1470
Impact area, m²
24.5
Product height, mm
3320
Product lenght, mm
2260
Product width, mm
3540
Height required, mm
3360
IMPACT AREA LENGTH, MM
4620
IMPACT AREA WIDTH, MM
6980
