Home
/
spareparts
Spare parts
137150M

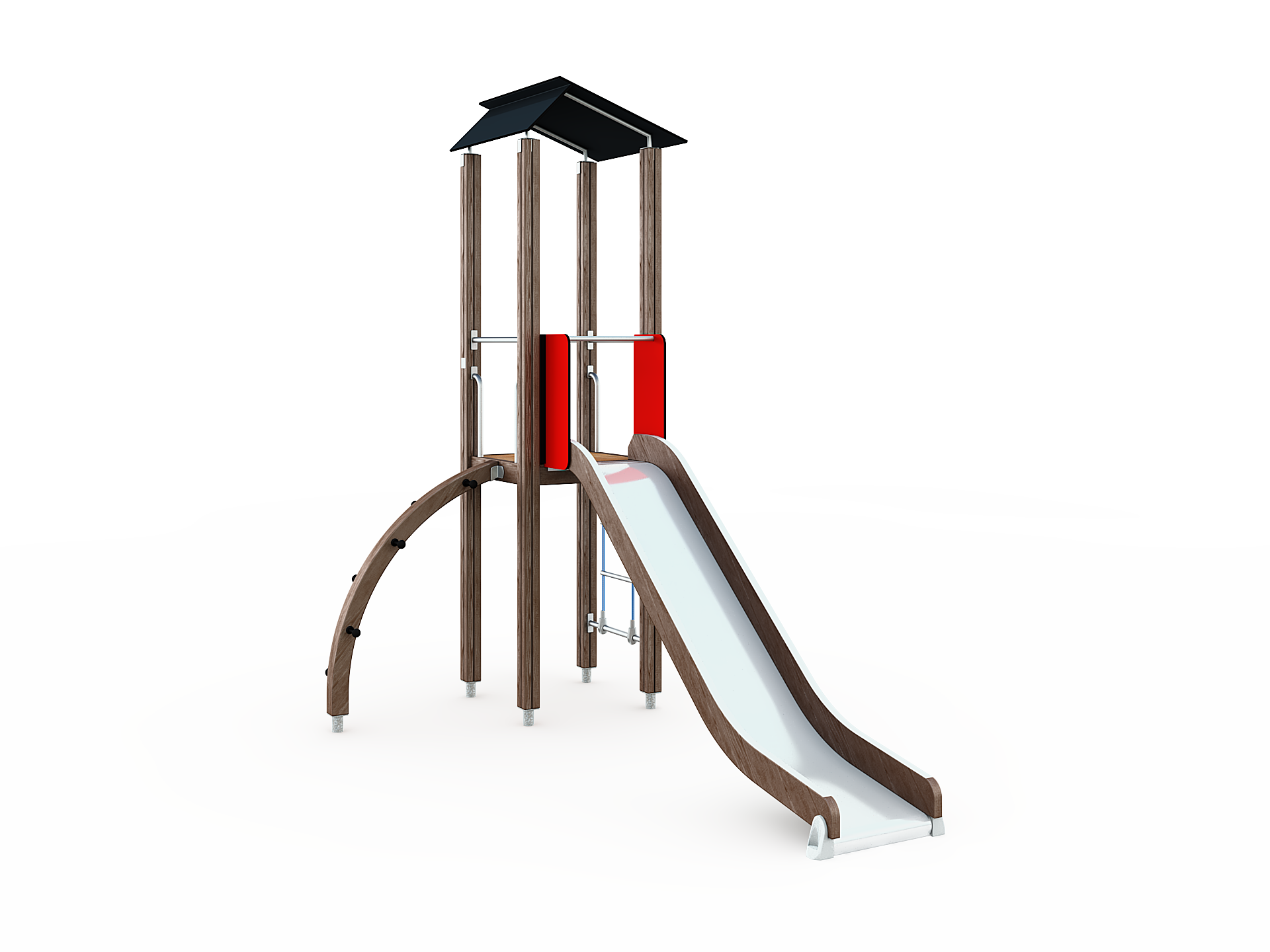

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706428
PLATE
706428SP
ROOF PLATE 15x93x888.5 DARK GREY
706429
BATTEN 32x45x706 IMPREGNATED
706429
BATTEN 32x45x706 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706450
706450SP
SLIDE ELEMENT +1470 IMPREGNATED DEEP
706475
CLIMBING ELEMENT 1387x1020x325 IMPREGNATED
706475
CLIMBING ELEMENT 1387x1020x325 IMPREGNATED
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
907694
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137150M (.dwg)

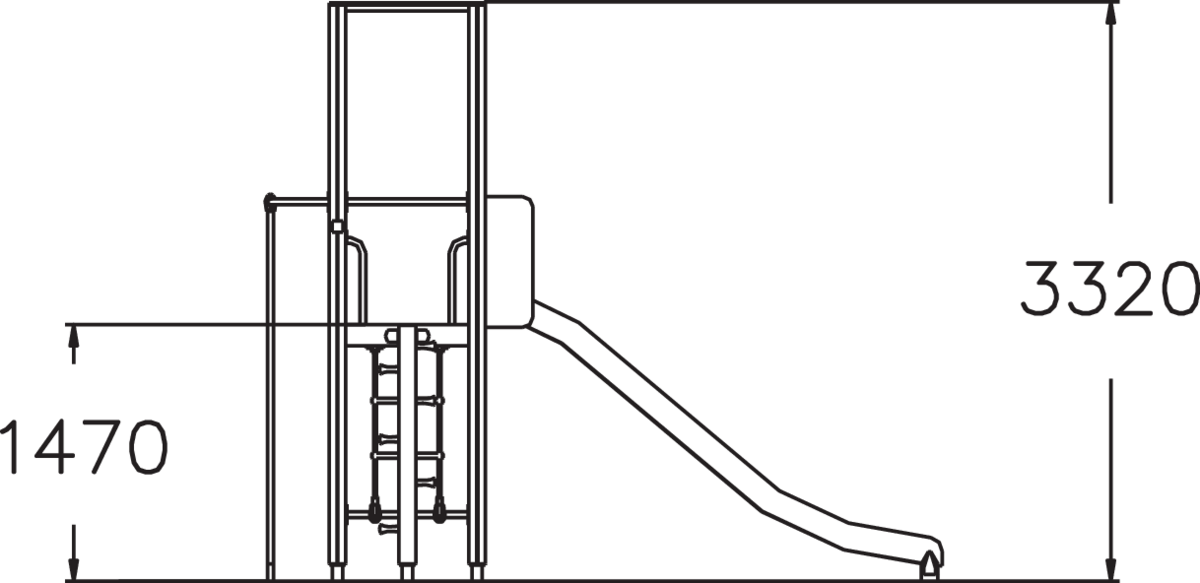

SIDE VIEW 137150M (.dwg)

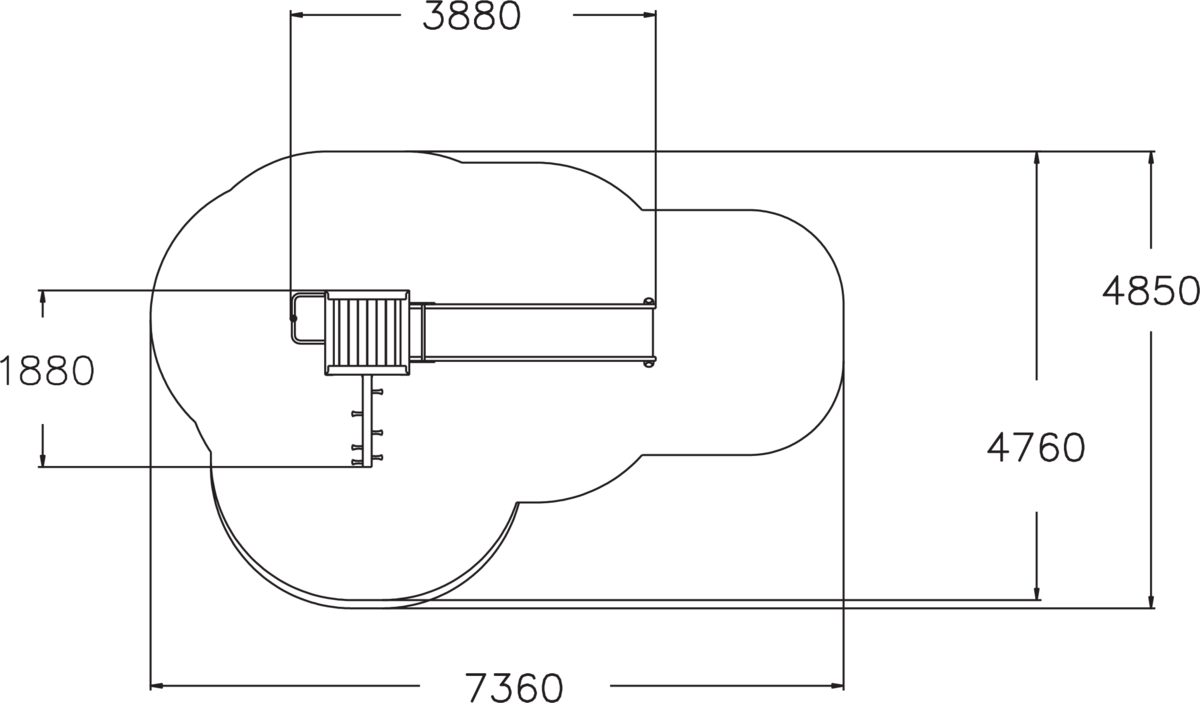

TOP VIEW 137150M (.dwg)
Technical information
User age
4+
FALLING SPACE LENGTH, MM
7360
FALLING SPACE WIDTH, MM
4850
Max. free fall height, mm
1470
Impact area, m²
25
Product height, mm
3320
Product lenght, mm
3880
Product width, mm
1880
Height required, mm
3320
IMPACT AREA LENGTH, MM
7360
IMPACT AREA WIDTH, MM
4760
