137124M

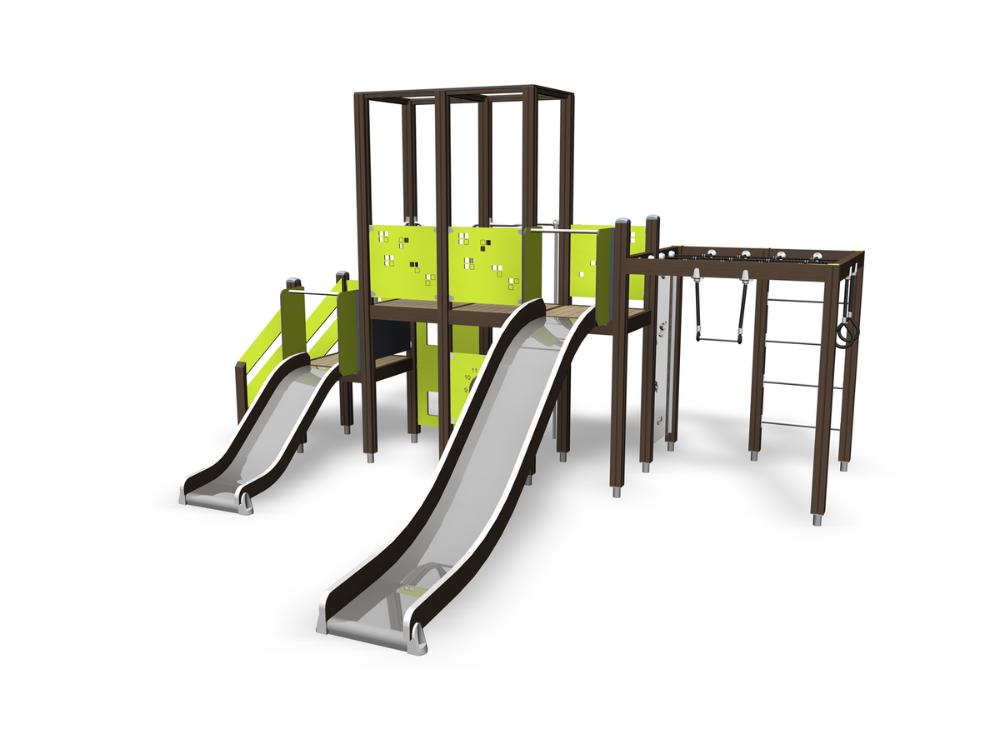

ACTIVITY TOWER

Downloads
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
706371 706371
706371-703SP SLIDE RAIL PLATE 15x747x343 LIME 706371-703SP SLIDE RAIL PLATE 15x747x343 LIME
706428 PLATE 706428 PLATE
706428SP ROOF PLATE 15x93x888.5 DARK GREY 706428SP ROOF PLATE 15x93x888.5 DARK GREY
706429 BATTEN 32x45x706 IMPREGNATED 706429 BATTEN 32x45x706 IMPREGNATED
706429 BATTEN 32x45x706 IMPREGNATED 706429 BATTEN 32x45x706 IMPREGNATED
706434 706434
706434SP ROOF PLATE 15x93x1688.5 DARK GREY 706434SP ROOF PLATE 15x93x1688.5 DARK GREY
706435 706435
706435SP ROOF PLATE 15x93x793.5 DARK GREY 706435SP ROOF PLATE 15x93x793.5 DARK GREY
706436 706436
706436-703SP WALL LAMINATE 80M 10x640x701 LIME 706436-703SP WALL LAMINATE 80M 10x640x701 LIME
706439 BOOM 45x120x704 IMPREGNATED 706439 BOOM 45x120x704 IMPREGNATED
706439SP BOOM 45x120x704 IMPREGNATED 706439SP BOOM 45x120x704 IMPREGNATED 706439 BOOM 45x120x704 IMPREGNATED 706439 BOOM 45x120x704 IMPREGNATED
706441 POST 93x93x1550 IMPREGNATED 706441 POST 93x93x1550 IMPREGNATED
706441 POST 93x93x1550 IMPREGNATED 706441 POST 93x93x1550 IMPREGNATED
706444 POST 93x93x3200 IMPREGNATED 706444 POST 93x93x3200 IMPREGNATED
706444 POST 93x93x3200 IMPREGNATED 706444 POST 93x93x3200 IMPREGNATED
706450 706450
706450SP SLIDE ELEMENT +1470 IMPREGNATED DEEP 706450SP SLIDE ELEMENT +1470 IMPREGNATED DEEP
706452 706452
Not available
Inquire spare parts for the product using a form Open form for spare part questions
706461 PLATE 15x400x703 DARK GREY 706461 PLATE 15x400x703 DARK GREY
706461 PLATE 15x400x703 DARK GREY 706461 PLATE 15x400x703 DARK GREY
706481 PLATE 93x93x10 TOP HAT FFL 706481 PLATE 93x93x10 TOP HAT FFL
706481-703SP PLATE 93x93x10 TOP HAT FFL LIME 706481-703SP PLATE 93x93x10 TOP HAT FFL LIME
706484 POST 93x93x2150 IMPREGNATED 706484 POST 93x93x2150 IMPREGNATED
706484 POST 93x93x2150 IMPREGNATED 706484 POST 93x93x2150 IMPREGNATED
706485 706485
706485-305SP NET ELEMENT Ø1555x1555 BLACK 706485-305SP NET ELEMENT Ø1555x1555 BLACK
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706507 706507
706507-703SP CLIMBING WALL 20x702x1160 LIME 706507-703SP CLIMBING WALL 20x702x1160 LIME
706511 POST 93x93x1870 IMPREGNATED 706511 POST 93x93x1870 IMPREGNATED
706511 POST 93x93x1870 IMPREGNATED 706511 POST 93x93x1870 IMPREGNATED
706514 BOOM 70x120x1504 IMPREGNATED 706514 BOOM 70x120x1504 IMPREGNATED
706514 BOOM 70x120x1504 IMPREGNATED 706514 BOOM 70x120x1504 IMPREGNATED
706600 706600
706600-305SP TRAPEZE BLACK ROPE 706600-305SP TRAPEZE BLACK ROPE
706735 706735
706735-305SP RINGS PAIR FINNO Ø16x562mm BLACK ROPE 706735-305SP RINGS PAIR FINNO Ø16x562mm BLACK ROPE
706905 POST 93x93x1870 IMPREGNATED 706905 POST 93x93x1870 IMPREGNATED
706905 POST 93x93x1870 IMPREGNATED 706905 POST 93x93x1870 IMPREGNATED
707146 707146
707146-703SP HANDRAIL STAIR 15x145x1153 LIME 707146-703SP HANDRAIL STAIR 15x145x1153 LIME
707732 707732
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY
901868 901868
901868SP HANDRAIL BAR Ø34x598 GREY 901868SP HANDRAIL BAR Ø34x598 GREY
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909511 909511
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650
909519 909519
909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
008986 008986
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)
907694-216 907694-216
907694-216SP BAR ELEMENT40x120x704 80M GREY 907694-216SP BAR ELEMENT40x120x704 80M GREY
907688-216 907688-216
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY

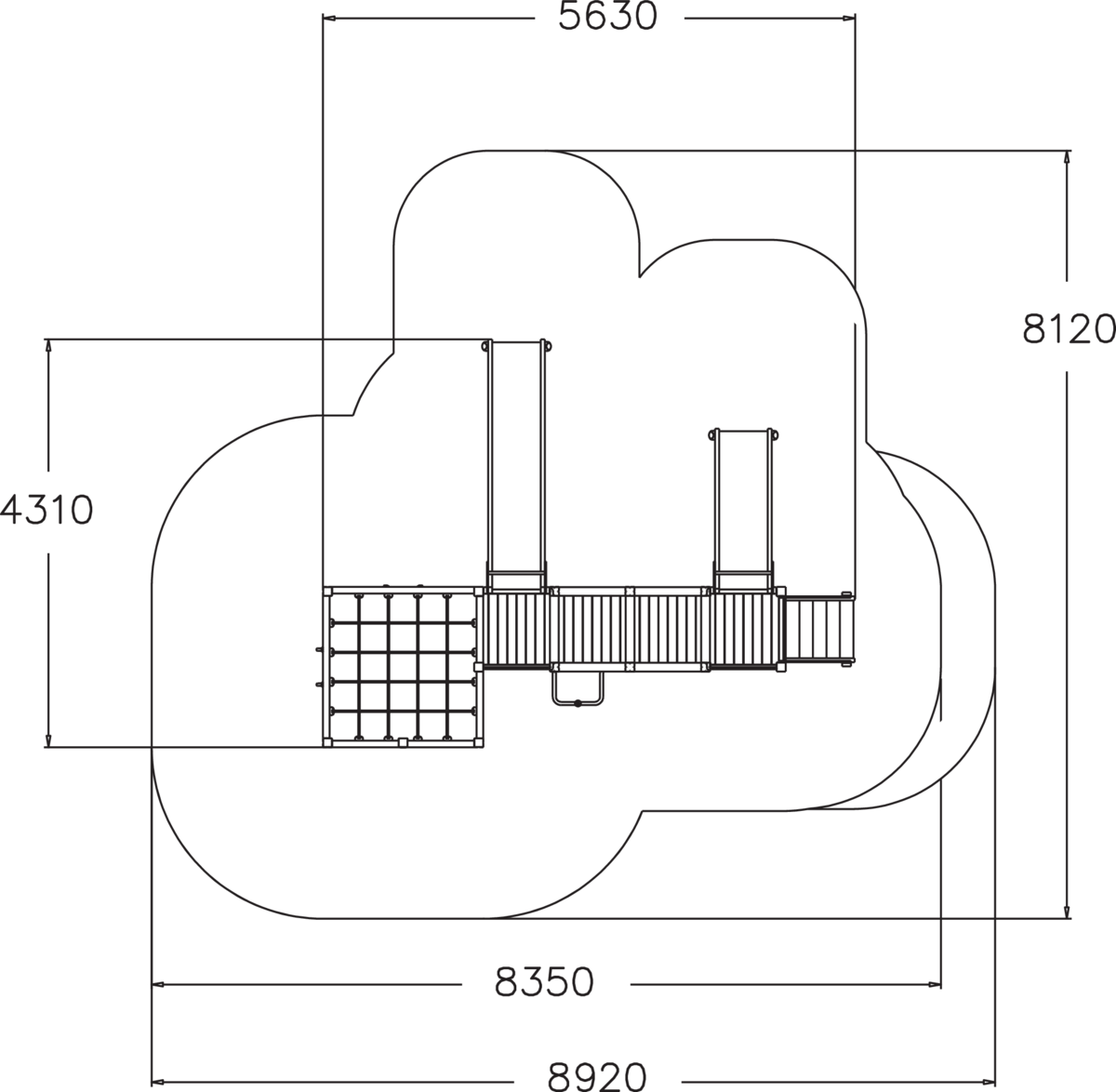

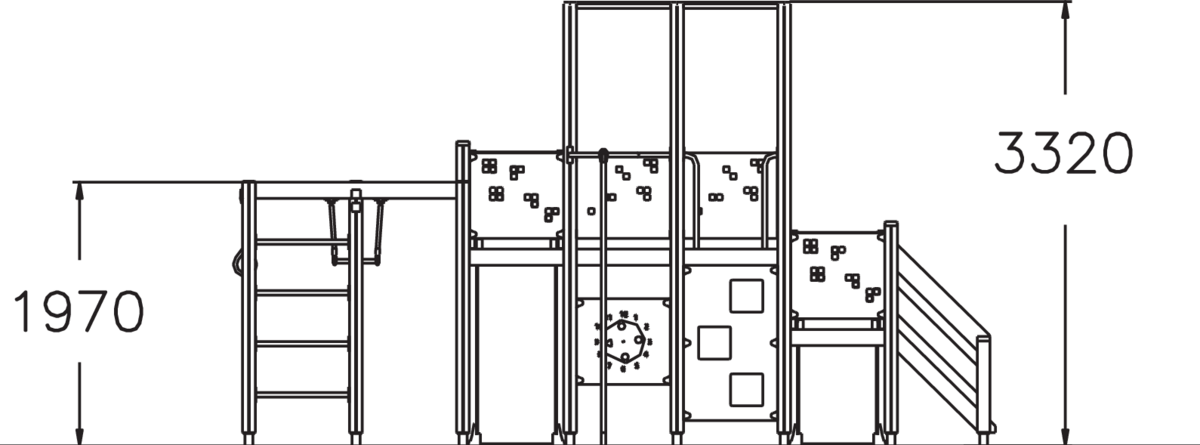

Technical information

  • User age
    1+
  • FALLING SPACE LENGTH, MM
    8930
  • FALLING SPACE WIDTH, MM
    8120
  • Max. free fall height, mm
    1970
  • Impact area, m²
    48.9
  • Product height, mm
    3320
  • Product lenght, mm
    5630
  • Product width, mm
    4310
  • Height required, mm
    3320
  • IMPACT AREA LENGTH, MM
    8350
  • IMPACT AREA WIDTH, MM
    8120
