Home
/
spareparts
Spare parts
137117M

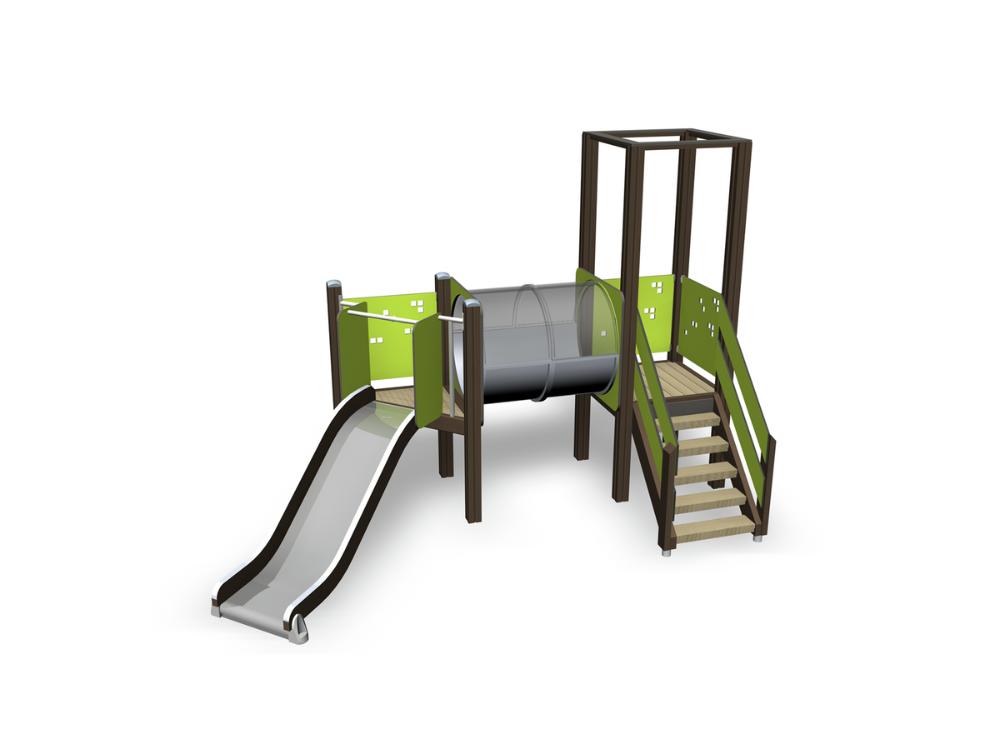

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706428
PLATE
706428SP
ROOF PLATE 15x93x888.5 DARK GREY
706429
BATTEN 32x45x706 IMPREGNATED
706429
BATTEN 32x45x706 IMPREGNATED
706436
706436-703SP
WALL LAMINATE 80M 10x640x701 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706452
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706527
706527SP
POST 93x93x1600 IMPREGNATED
706539
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
706662
POST 93x93x2600 IMPREGNATED
706662
POST 93x93x2600 IMPREGNATED
707146
707146-703SP
HANDRAIL STAIR 15x145x1153 LIME
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905821
905821SP
BASE MOD.STRAIGHT GREY
905829
905829SP
BASE MOD.STRAIGHT (SEE-THROUGH)
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
008986
008710SP
FLOOR 80M (008701)
Downloads
ACTIVITY TOWER FRAME ROOF (.dwg)
InstallationInstructions (.pdf)

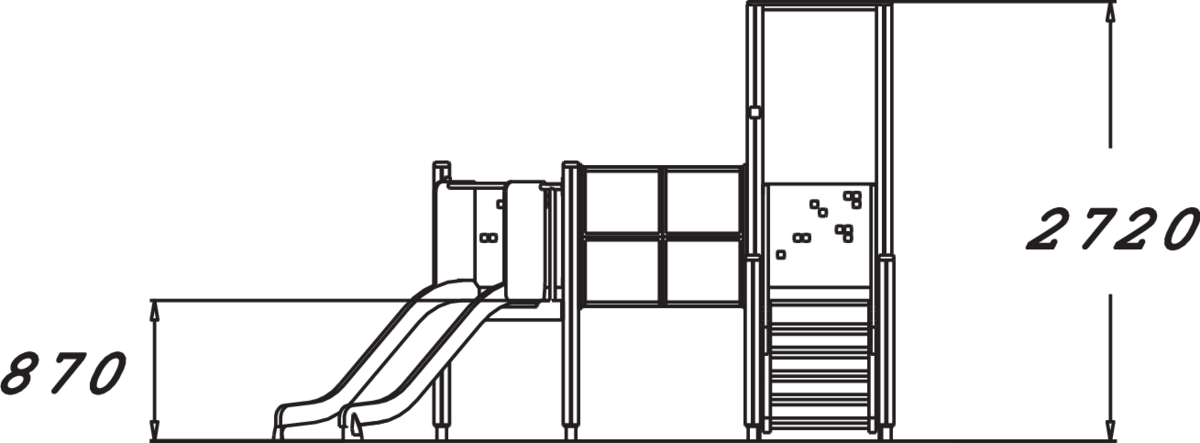

SIDE VIEW 137117M (.dwg)

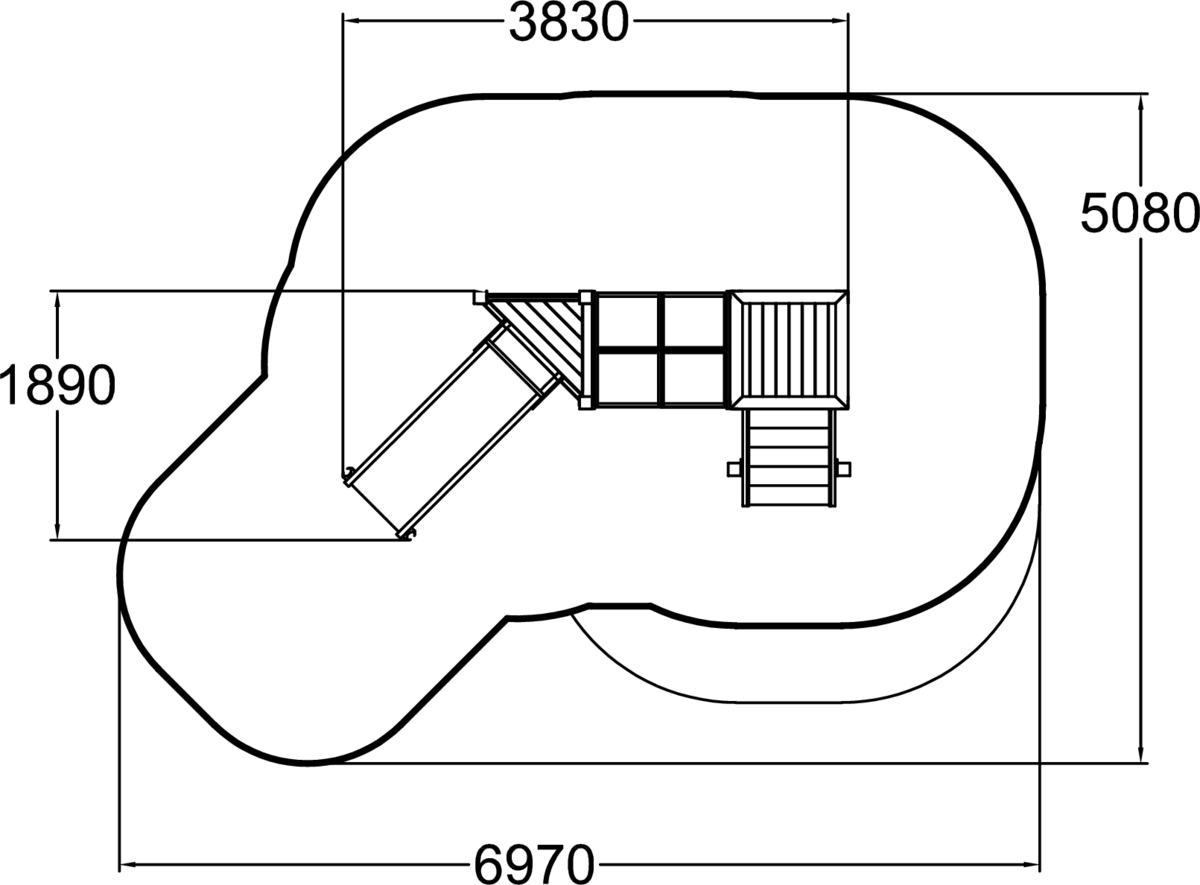

TOP VIEW 137117M (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
6970
FALLING SPACE WIDTH, MM
5080
Max. free fall height, mm
1000
Impact area, m²
25.1
Product height, mm
2720
Product lenght, mm
3830
Product width, mm
1890
Height required, mm
2760
IMPACT AREA LENGTH, MM
6970
IMPACT AREA WIDTH, MM
5080
