Home
/
spareparts
Spare parts
137115M

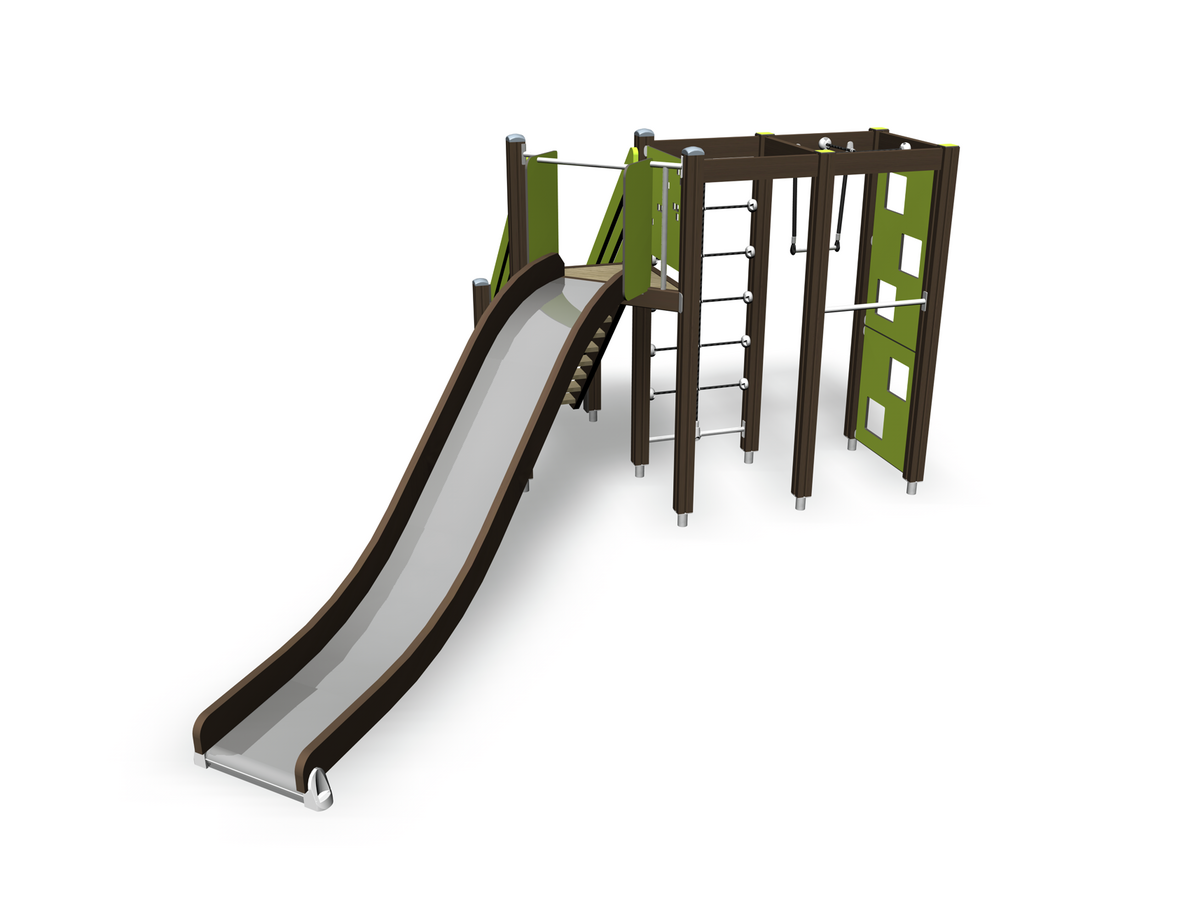

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706436
706436-703SP
WALL LAMINATE 80M 10x640x701 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706450
706450SP
SLIDE ELEMENT +1470 IMPREGNATED DEEP
706481
PLATE 93x93x10 TOP HAT FFL
706481-703SP
PLATE 93x93x10 TOP HAT FFL LIME
706484
POST 93x93x2150 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706507
706507-703SP
CLIMBING WALL 20x702x1160 LIME
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706540
706540-703SP
CLIMBING WALL 20x702x415 LIME
706556
706596-305SP
NET HORIZONTAL 755x755 BLACK
706600
706600-305SP
TRAPEZE BLACK ROPE
707152
707152-703SP
HANDRAIL STAIR 15x145x2009 LIME
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
907694
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137115M (.dwg)

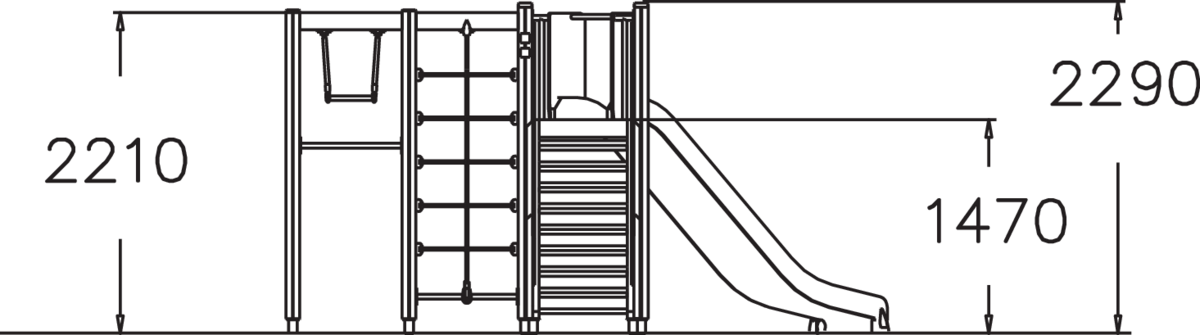

SIDE VIEW 137115M (.dwg)

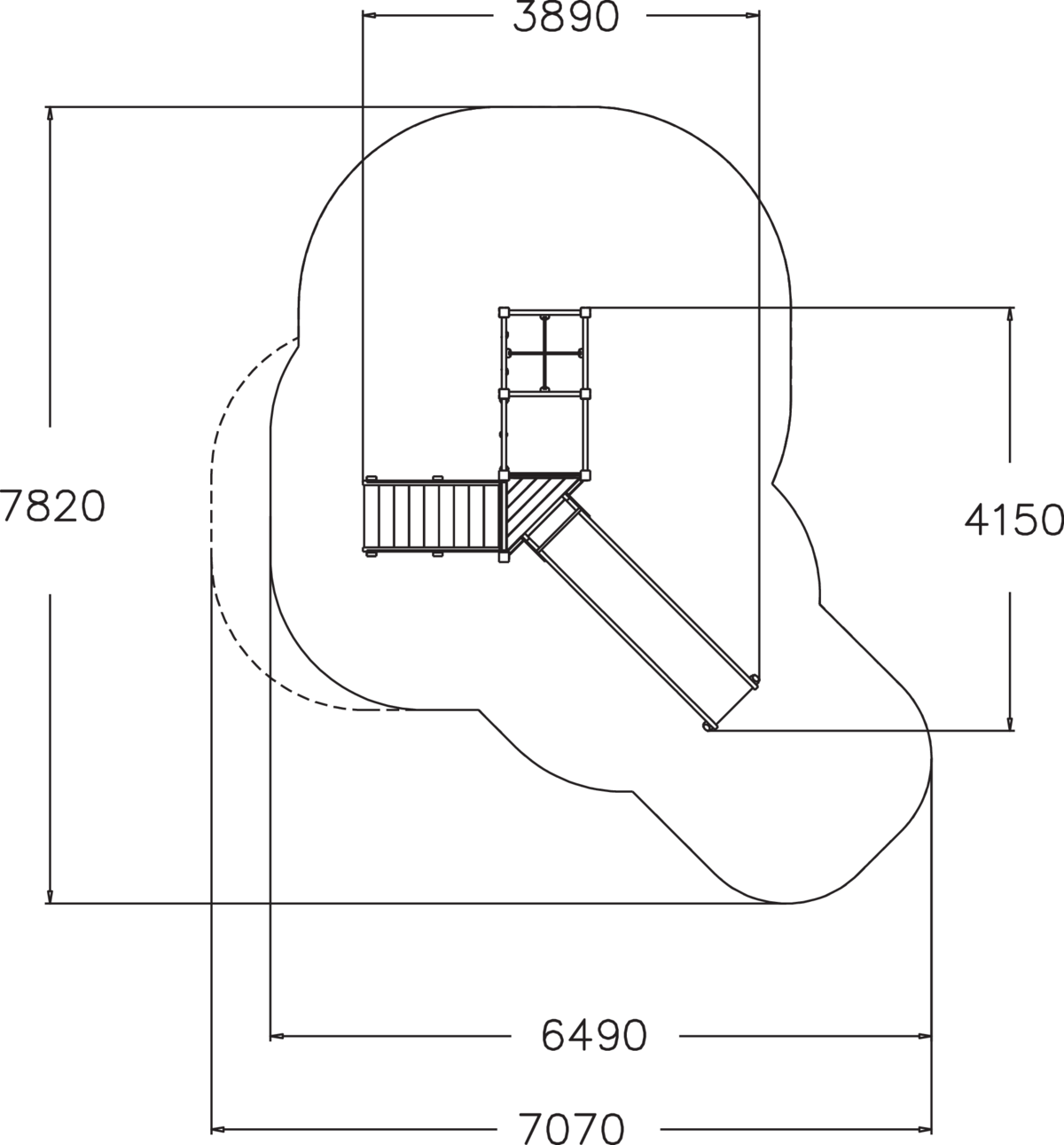

TOP VIEW 137115M (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
7070
FALLING SPACE WIDTH, MM
7820
Max. free fall height, mm
2210
Impact area, m²
33.6
Product height, mm
2290
Product lenght, mm
3890
Product width, mm
4150
Height required, mm
3710
IMPACT AREA LENGTH, MM
6490
IMPACT AREA WIDTH, MM
7820
