137105M

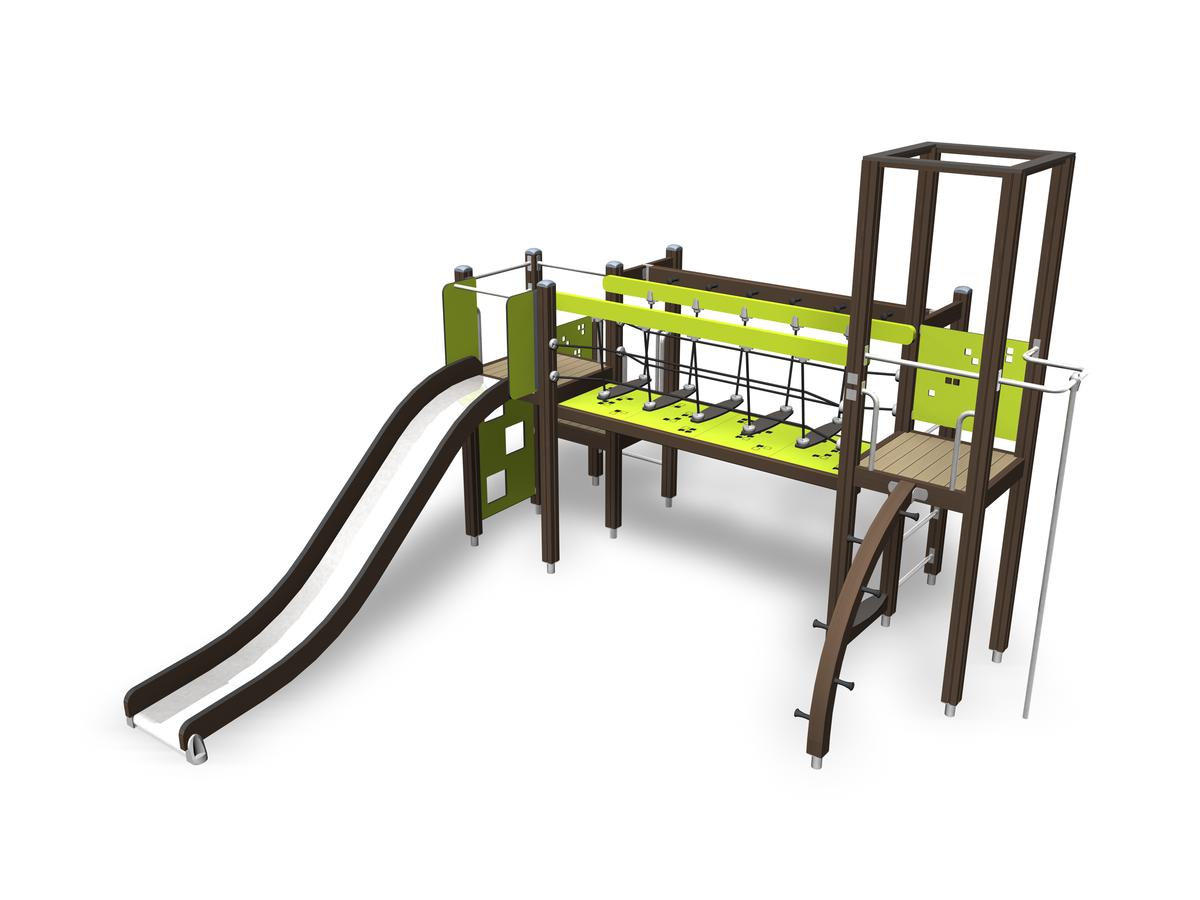

ACTIVITY TOWER

Please notice that the product was earlier delivered with different measurements 80M/2000mm during 24.7.2014 - 9.11.2015. Now the measurements are 80M/2400mm.

Downloads

Spare part sets

706945-602 FRAME ROOF DARK BROWN 706945-602 FRAME ROOF DARK BROWN
701625SP1 PLATFORM 80M SAFETY LIME GREEN 701625SP1 PLATFORM 80M SAFETY LIME GREEN
701060SP2 BRIDGE 2400 DUCKBOARD 80M LIME GREEN 701060SP2 BRIDGE 2400 DUCKBOARD 80M LIME GREEN
706450-602SP SLIDE ELEMENT +1470 DARK BROWN DEEP 706450-602SP SLIDE ELEMENT +1470 DARK BROWN DEEP
007441SP FIREMAN BAR +1470, 80M BAR NEW 007441SP FIREMAN BAR +1470, 80M BAR NEW
701553-703SP RAIL 80M SLIDE LIME 701553-703SP RAIL 80M SLIDE LIME
706475-602SP CLIMBING ELEMENT 1387x1020x325 DARK BROWN 706475-602SP CLIMBING ELEMENT 1387x1020x325 DARK BROWN
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
706428 PLATE 706428 PLATE
706428SP ROOF PLATE 15x93x888.5 DARK GREY 706428SP ROOF PLATE 15x93x888.5 DARK GREY
706453 706453
706453-704SP STEP 15x145x600 DARK GREY 706453-704SP STEP 15x145x600 DARK GREY
706461 PLATE 15x400x703 DARK GREY 706461 PLATE 15x400x703 DARK GREY
706461 PLATE 15x400x703 DARK GREY 706461 PLATE 15x400x703 DARK GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
707260 707260
707260-305SP NET ASSEMBLY 2375x600 BLACK 707260-305SP NET ASSEMBLY 2375x600 BLACK
901868 901868
901868SP HANDRAIL BAR Ø34x598 GREY 901868SP HANDRAIL BAR Ø34x598 GREY
905023 905023
905023SP HANDLE, WITHOUT HEXAGONAL SCREW 905023SP HANDLE, WITHOUT HEXAGONAL SCREW
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909511 909511
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650
909519 909519
909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
008986 008986
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)
706371-703 706371-703
706371-703SP SLIDE RAIL PLATE 15x747x343 LIME 706371-703SP SLIDE RAIL PLATE 15x747x343 LIME
706450-602 706450-602
706450-602SP SLIDE ELEMENT +1470 DARK BROWN DEEP 706450-602SP SLIDE ELEMENT +1470 DARK BROWN DEEP
707290-602 HANGING ELEMENT 70x120x2280 DARK BROWN 707290-602 HANGING ELEMENT 70x120x2280 DARK BROWN
707290-602 HANGING ELEMENT 70x120x2280 DARK BROWN 707290-602 HANGING ELEMENT 70x120x2280 DARK BROWN
707271-602 BOOM 70x95x2480 SAFETY PLATE DARK BROWN 707271-602 BOOM 70x95x2480 SAFETY PLATE DARK BROWN
707271-602 BOOM 70x95x2480 SAFETY PLATE DARK BROWN 707271-602 BOOM 70x95x2480 SAFETY PLATE DARK BROWN
707255-611 707255-611
707255-611SP RAIL 45x120x2480 LIME 707255-611SP RAIL 45x120x2480 LIME
706436-703 706436-703
706436-703SP WALL LAMINATE 80M 10x640x701 LIME 706436-703SP WALL LAMINATE 80M 10x640x701 LIME
706429-602 BATTEN 32x45x704 DARK BROWN 706429-602 BATTEN 32x45x704 DARK BROWN
706429-602 BATTEN 32x45x704 DARK BROWN 706429-602 BATTEN 32x45x704 DARK BROWN
907698-216 907698-216
907698-216SP BAR ELEMENT +1470, Ø337x2054 GREY 907698-216SP BAR ELEMENT +1470, Ø337x2054 GREY
907694-216 907694-216
907694-216SP BAR ELEMENT40x120x704 80M GREY 907694-216SP BAR ELEMENT40x120x704 80M GREY
907688-216 907688-216
907688-216SP HAND GRIP 40x765x114 GREY 907688-216SP HAND GRIP 40x765x114 GREY
706507-703 706507-703
706507-703SP CLIMBING WALL 20x702x1160 LIME 706507-703SP CLIMBING WALL 20x702x1160 LIME
706484-602 POST 93x93x2150 DARK BROWN 706484-602 POST 93x93x2150 DARK BROWN
706484-602 POST 93x93x2150 DARK BROWN 706484-602 POST 93x93x2150 DARK BROWN
706475-602 706475-602
706475-602SP CLIMBING ELEMENT 1387x1020x325 DARK BROWN 706475-602SP CLIMBING ELEMENT 1387x1020x325 DARK BROWN
706444-602 POST 93x93x3200 DARK BROWN 706444-602 POST 93x93x3200 DARK BROWN
706444-602 POST 93x93x3200 DARK BROWN 706444-602 POST 93x93x3200 DARK BROWN
706441-602 POST 93x93x1550 DARK BROWN 706441-602 POST 93x93x1550 DARK BROWN
706441-602 POST 93x93x1550 DARK BROWN 706441-602 POST 93x93x1550 DARK BROWN
706439-602 BOOM 45x120x704 DARK BROWN 706439-602 BOOM 45x120x704 DARK BROWN
706439-602 BOOM 45x120x704 DARK BROWN 706439-602 BOOM 45x120x704 DARK BROWN
907695-216 907695-216
907695-216SP BAR ELEMENT 80M 773x431x120 GREY 907695-216SP BAR ELEMENT 80M 773x431x120 GREY

Technical information

  • User age
    4+

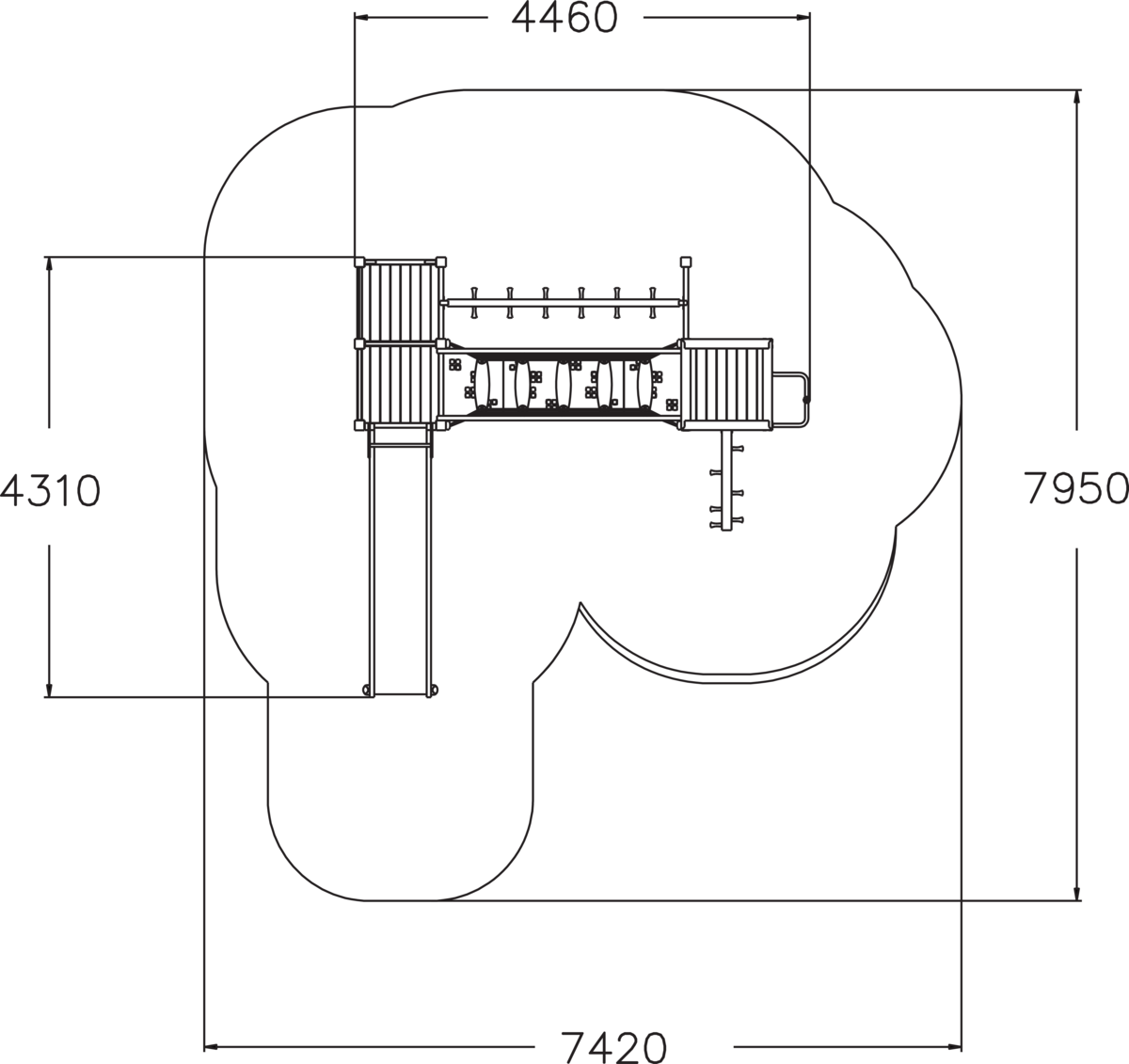

  • FALLING SPACE LENGTH, MM
    7420
  • FALLING SPACE WIDTH, MM
    8470

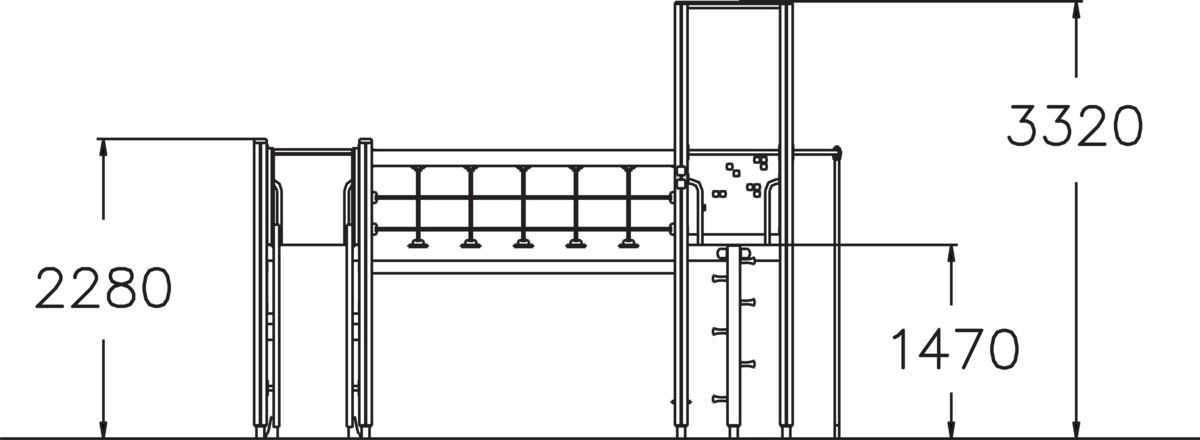

  • Max. free fall height, mm
    1470
  • Impact area, m²
    43.8
  • Product height, mm
    3320
  • Product lenght, mm
    4460
  • Product width, mm
    4830
  • Height required, mm
    3360
  • IMPACT AREA LENGTH, MM
    7420
  • IMPACT AREA WIDTH, MM
    8470
