Home
/
spareparts
Spare parts
137100M

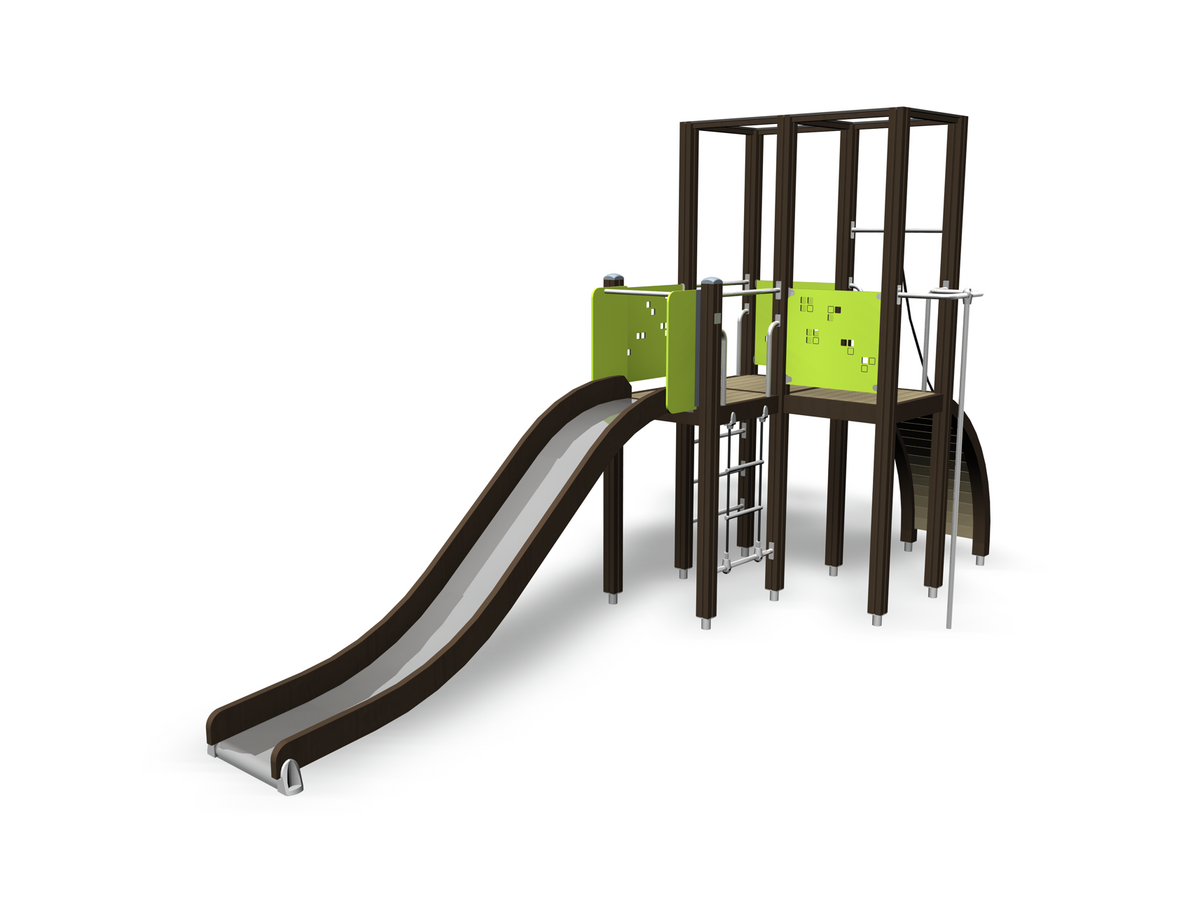

ACTIVITY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701088
MAT, 45x645x1698
701088
MAT, 45x645x1698
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706428
PLATE
706428SP
ROOF PLATE 15x93x888.5 DARK GREY
706429
BATTEN 32x45x706 IMPREGNATED
706429
BATTEN 32x45x706 IMPREGNATED
706434
706434SP
ROOF PLATE 15x93x1688.5 DARK GREY
706435
706435SP
ROOF PLATE 15x93x793.5 DARK GREY
706436
706436-703SP
WALL LAMINATE 80M 10x640x701 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706450
706450SP
SLIDE ELEMENT +1470 IMPREGNATED DEEP
706484
POST 93x93x2150 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706521
706521-305SP
ROPE ELEMENT L 2120 BLACK
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
907694
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137100M (.dwg)

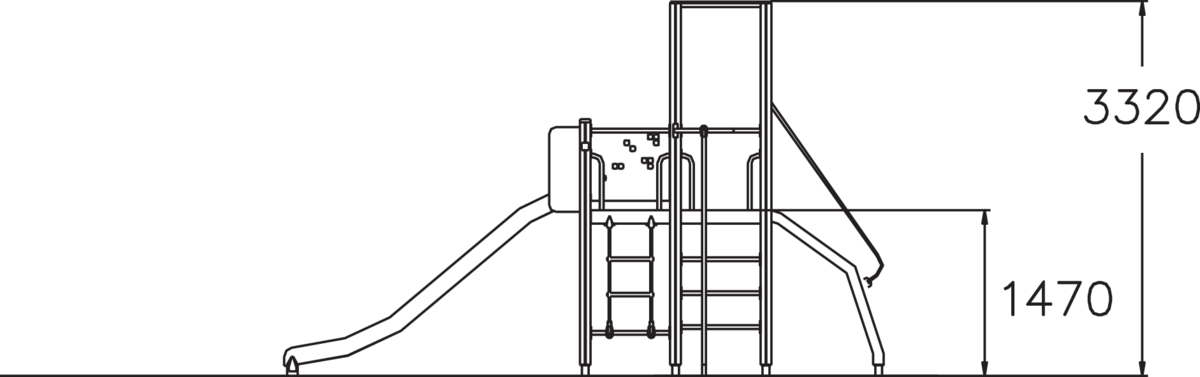

SIDE VIEW 137100M (.dwg)

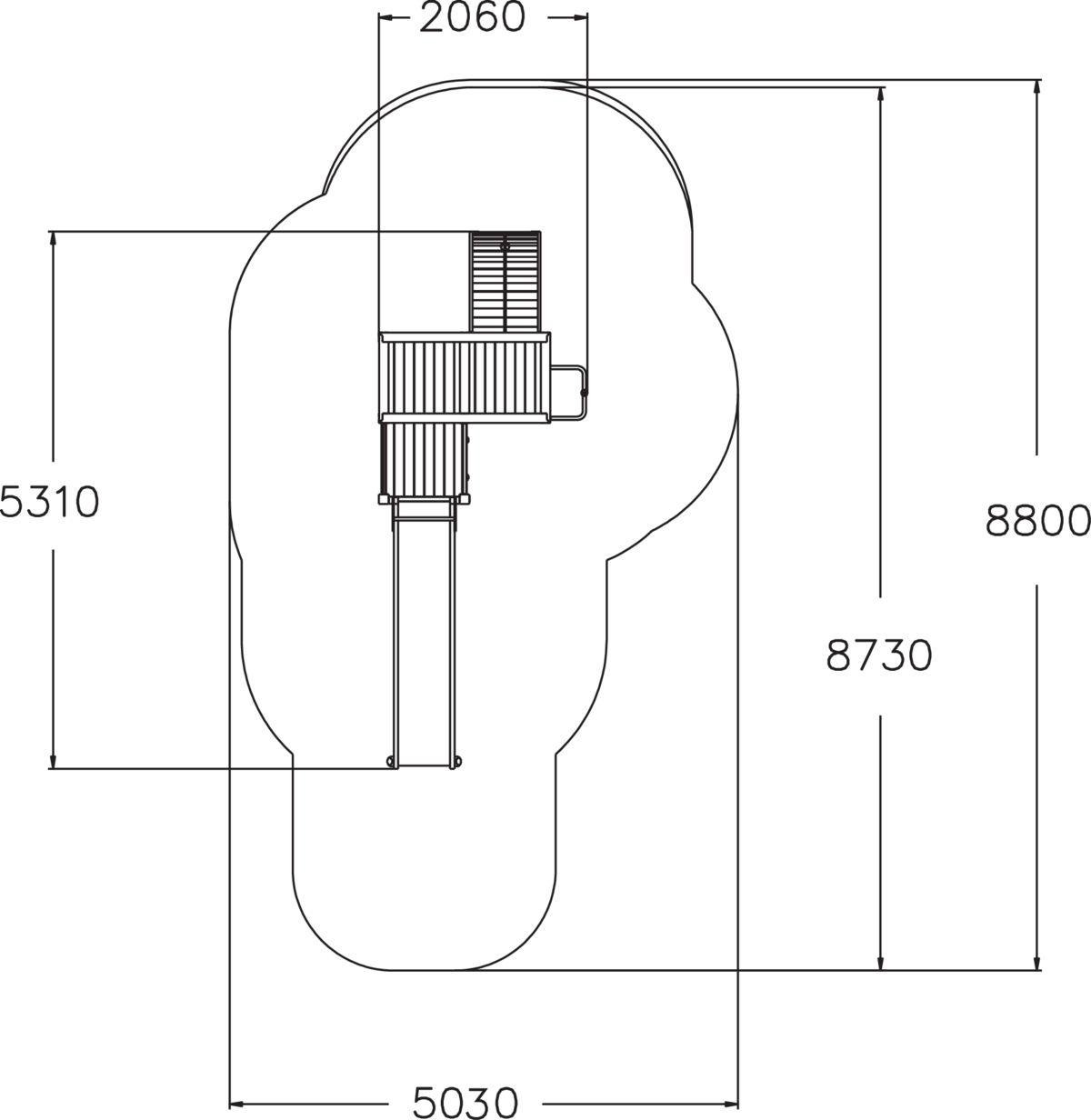

TOP VIEW 137100M (.dwg)
Technical information
User age
4+
FALLING SPACE LENGTH, MM
8800
FALLING SPACE WIDTH, MM
5030
Max. free fall height, mm
1470
Impact area, m²
31.2
Product height, mm
3320
Product lenght, mm
5310
Product width, mm
2060
Height required, mm
3360
IMPACT AREA LENGTH, MM
8730
IMPACT AREA WIDTH, MM
5030
