137032M

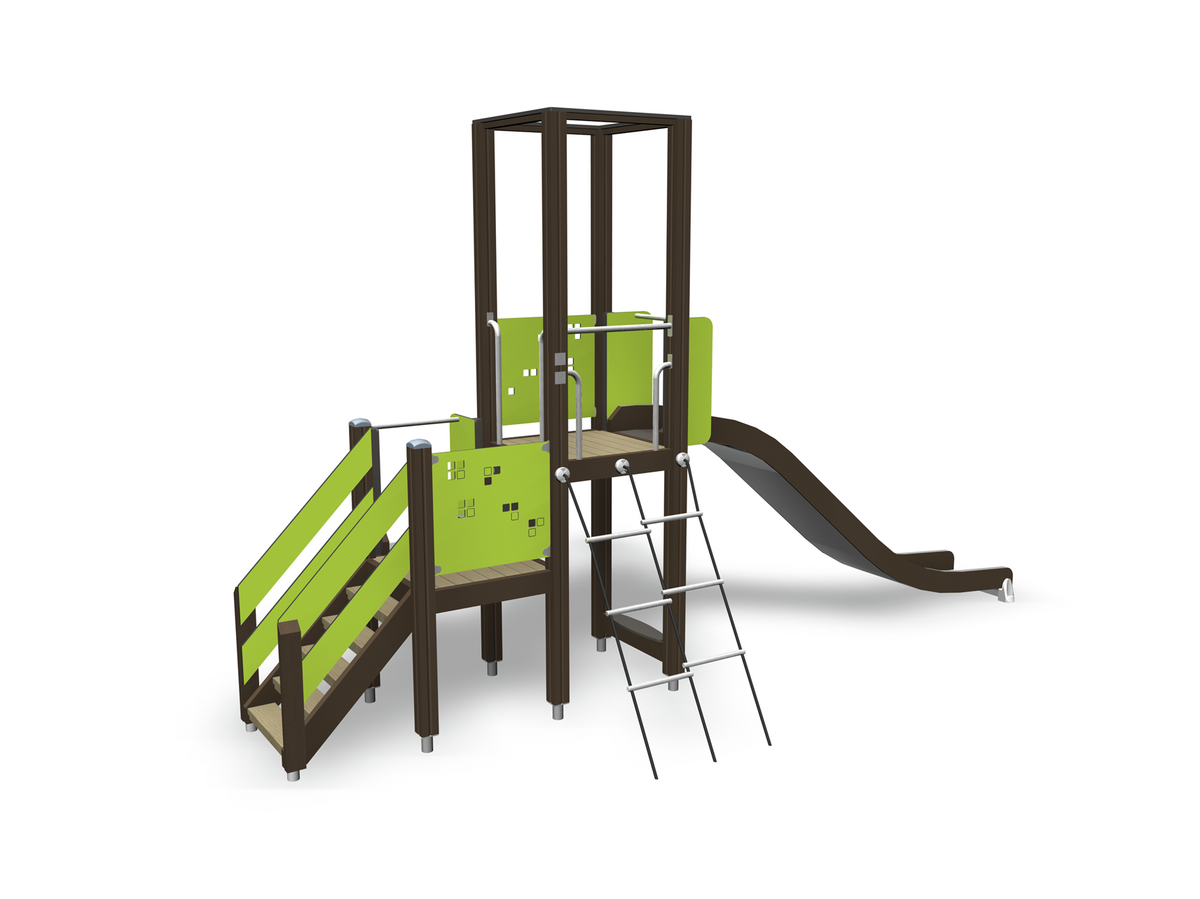

ACTIVITY TOWER
Downloads
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
Technical information
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137032M (.dwg)

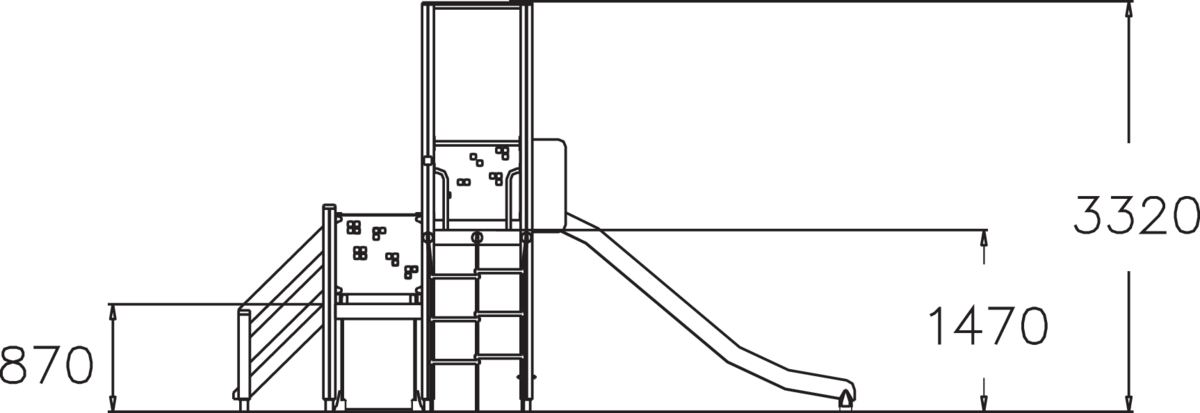

SIDE VIEW 137032M (.dwg)

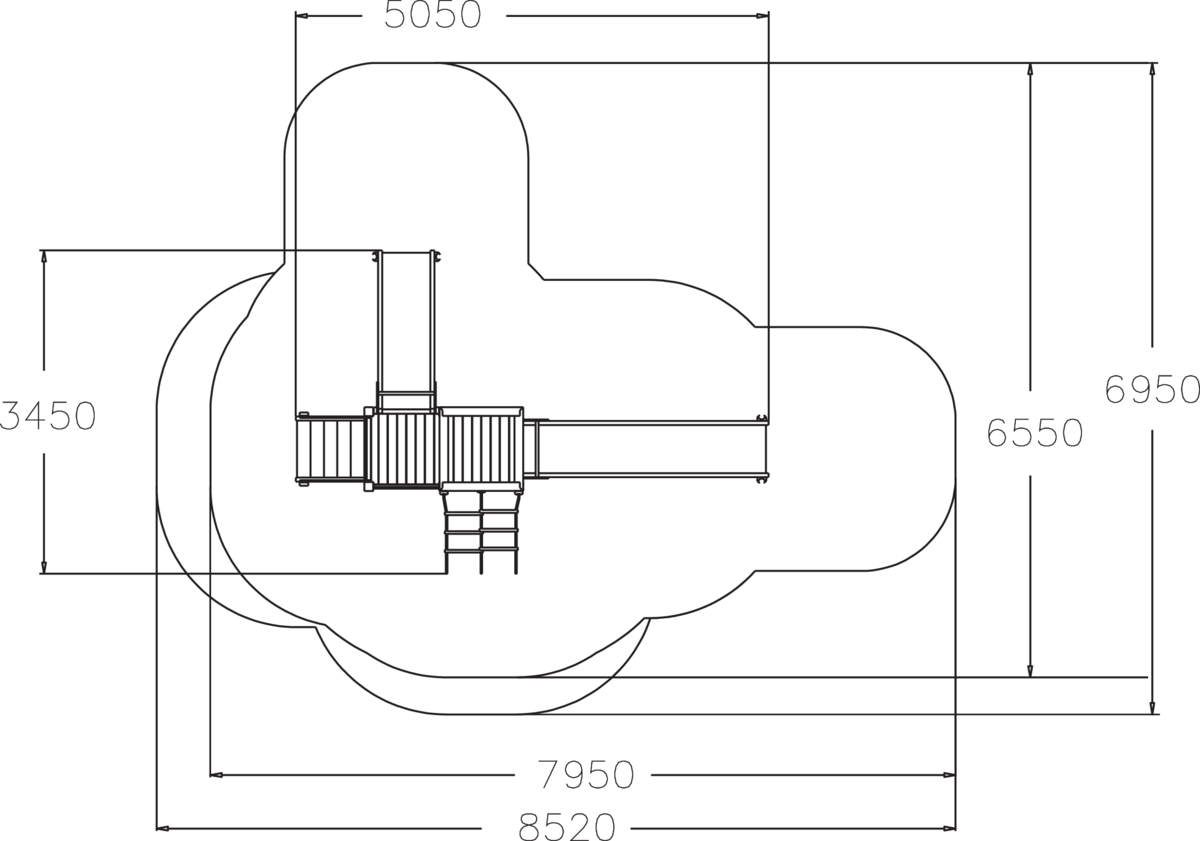

TOP VIEW 137032M (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
8520
FALLING SPACE WIDTH, MM
6950
Max. free fall height, mm
1470
Impact area, m²
32.3
Product height, mm
3320
Product lenght, mm
5050
Product width, mm
3450
Height required, mm
3360
IMPACT AREA LENGTH, MM
7950
IMPACT AREA WIDTH, MM
6550
