120354M

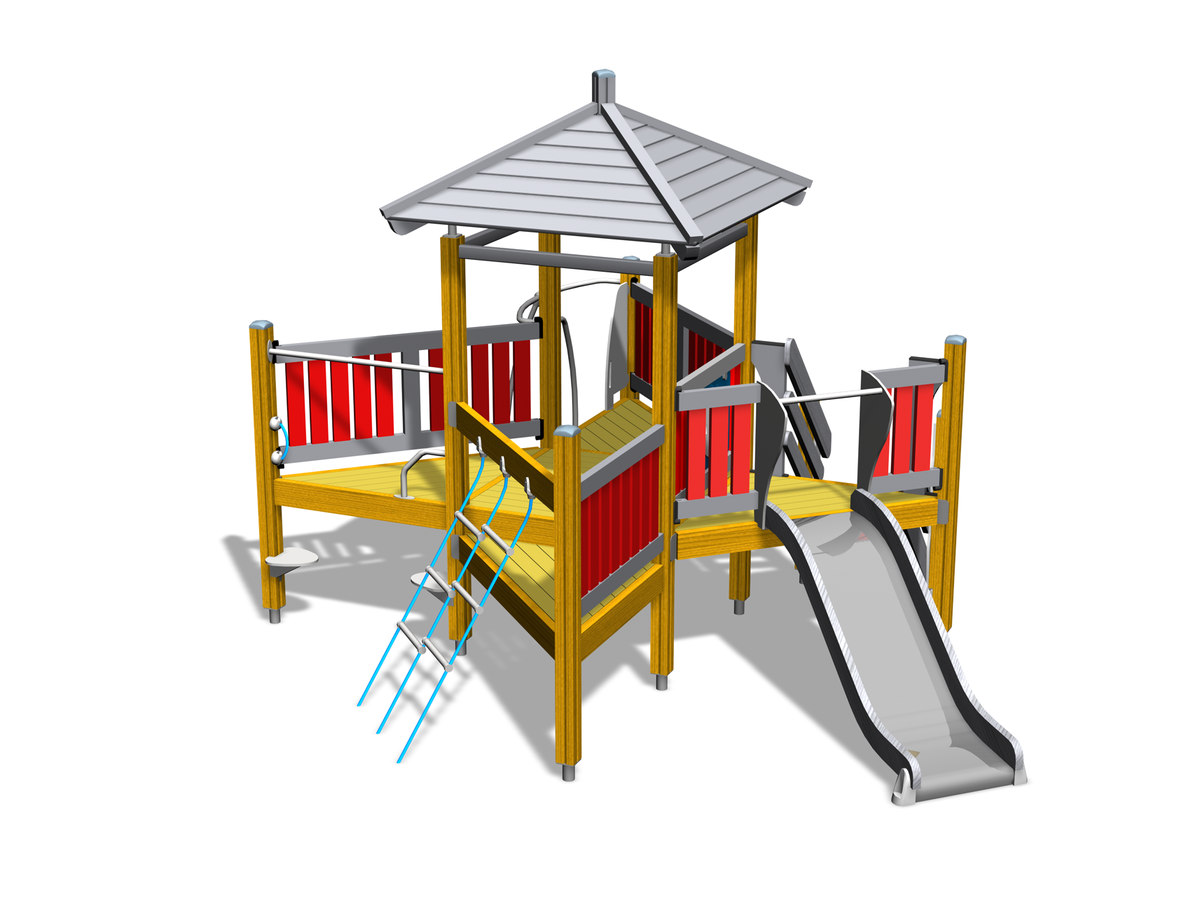

ACTIVITY TOWER

Downloads

Spare part sets

001948SP1 STAIRS M120 +870 DEEP WOOD LIGHT BROWN, LAMINATE GREY 001948SP1 STAIRS M120 +870 DEEP WOOD LIGHT BROWN, LAMINATE GREY
701340 701340
706462-301SP CLIMBING ELEMENT +1470 80M/120M BLUE 706462-301SP CLIMBING ELEMENT +1470 80M/120M BLUE
701422 701422
703327SP POST 93x93x1650 YELLOW 703327SP POST 93x93x1650 YELLOW
701428 701428
701428SP POST 93x93x2250 YELLOW 701428SP POST 93x93x2250 YELLOW
701450 701450
701450SP ROOF 120M DIAMOND 701450SP ROOF 120M DIAMOND
701482 701482
701482SP BOOM 45x145x1124 (005692) YELLOW 701482SP BOOM 45x145x1124 (005692) YELLOW
701556 701556
706452-604SP SLIDE ELEMENT +870 GREY DEEP 706452-604SP SLIDE ELEMENT +870 GREY DEEP
701557 701557
003880SP FLOOR 120M 003880SP FLOOR 120M
701569 701569
003886SP TRIANGLE FLOOR 120M 003886SP TRIANGLE FLOOR 120M
701574 BOOM DIAGONAL 120M YELLOW 701574 BOOM DIAGONAL 120M YELLOW
701574 BOOM DIAGONAL 120M YELLOW 701574 BOOM DIAGONAL 120M YELLOW
701582 701582
701582SP ADAPTER 120M TO 80M GREY 701582SP ADAPTER 120M TO 80M GREY
701594 701594
005061SP FIREMAN BAR +1470, 120M 005061SP FIREMAN BAR +1470, 120M
701606 DEEP FOUNDATION FOOT 701606 DEEP FOUNDATION FOOT
701606 DEEP FOUNDATION FOOT 701606 DEEP FOUNDATION FOOT
701666 701666
701666SP STEP 15x265x275 DARK GREY 701666SP STEP 15x265x275 DARK GREY
701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
702744 702744
702743SP PLATE 757x321x15 ADAPTER 702743SP PLATE 757x321x15 ADAPTER
702792 702792
707315SP HAND GRIP Ø16 BLACK 707315SP HAND GRIP Ø16 BLACK
703414 703414
703414SP RAIL 120MDL SLIDE GREY 703414SP RAIL 120MDL SLIDE GREY
707201 STAIR +870 OLD GREY 707201 STAIR +870 OLD GREY
707145-604 POST 43x93x717 GREY STAIRS 20 707145-604 POST 43x93x717 GREY STAIRS 20
707146-705 707146-705
707191-604 STAIR ELEMENT +870 STAIR GREY 707191-604 STAIR ELEMENT +870 STAIR GREY
707201 STAIR +870 OLD GREY 707201 STAIR +870 OLD GREY
707145-604 POST 43x93x717 GREY STAIRS 20 707145-604 POST 43x93x717 GREY STAIRS 20 707146-705SP HANDRAIL STAIR 15x145x1153 LIGHT GREY 707146-705SP HANDRAIL STAIR 15x145x1153 LIGHT GREY 707191-604 STAIR ELEMENT +870 STAIR GREY 707191-604 STAIR ELEMENT +870 STAIR GREY
901490 901490
Not available
Inquire spare parts for the product using a form Open form for spare part questions
901782 901782
901782SP COVER BAR Ø33x810x324 GREY 901782SP COVER BAR Ø33x810x324 GREY
901785 901785
901785SP BAR ELEMENT 120M GREY 901785SP BAR ELEMENT 120M GREY
901798 901798
901798SP BAR ELEMENT 283x283 CURVED GREY 901798SP BAR ELEMENT 283x283 CURVED GREY
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909521 BASE FOOT, L=700 909521 BASE FOOT, L=700
909511 909511
909519 909519
909521SP BASE FOOT, L=700 909521SP BASE FOOT, L=700
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650 909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
003786 003786
701616-604SP WALL ELEMENT 120M 45x680x1101 LIGHT GREY 701616-604SP WALL ELEMENT 120M 45x680x1101 LIGHT GREY
003798 003798
P10502-604SP WALL 45x680x1101 WINDOW GREY P10502-604SP WALL 45x680x1101 WINDOW GREY
005271 005271
706772-701SP ROULETTE PLAY PANEL 640x702 BLUE 706772-701SP ROULETTE PLAY PANEL 640x702 BLUE
003780 003780
P10500-604SP WALL 120MD 45x680x1550 GREY P10500-604SP WALL 120MD 45x680x1550 GREY

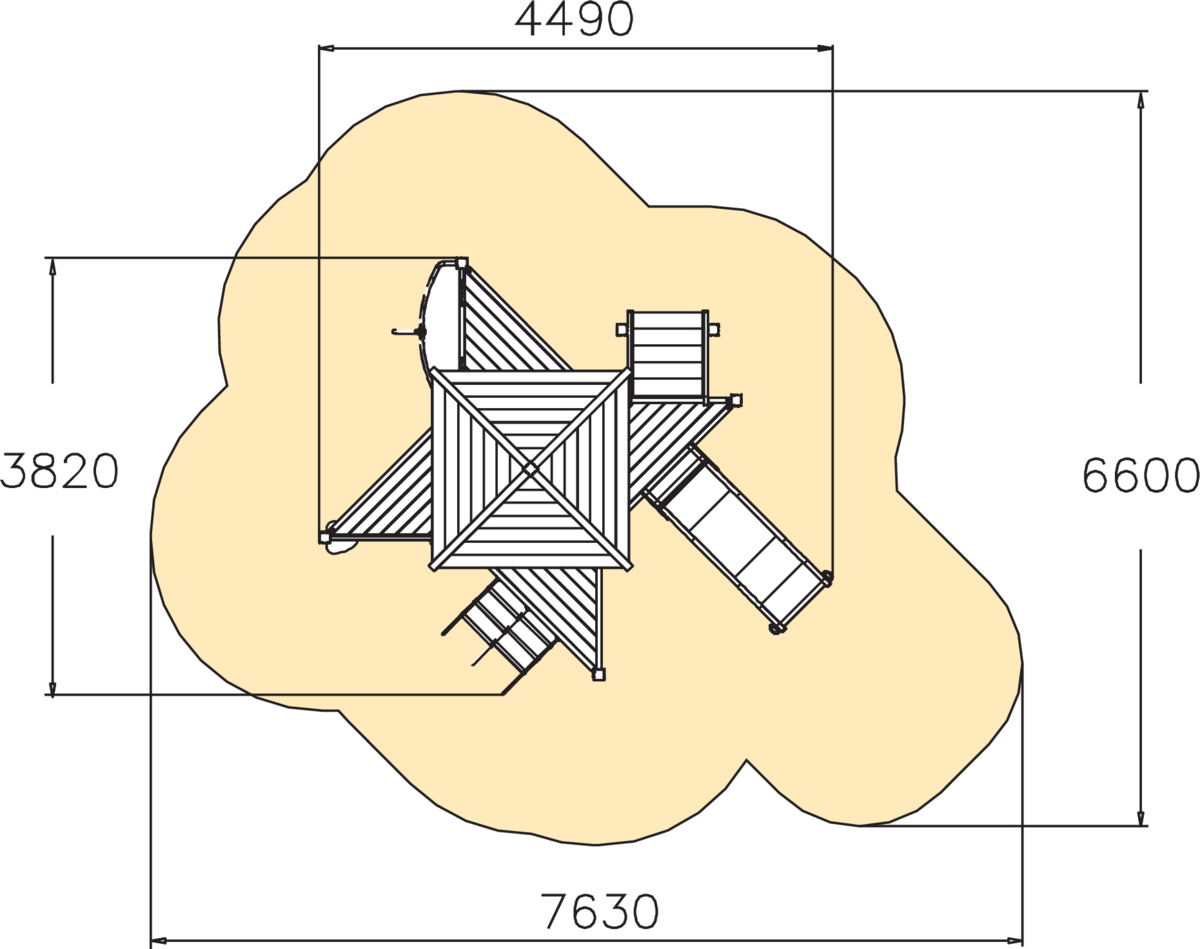

Technical information

  • User age
    1
  • Max. free fall height, mm
    1470
  • Impact area, m²
    35

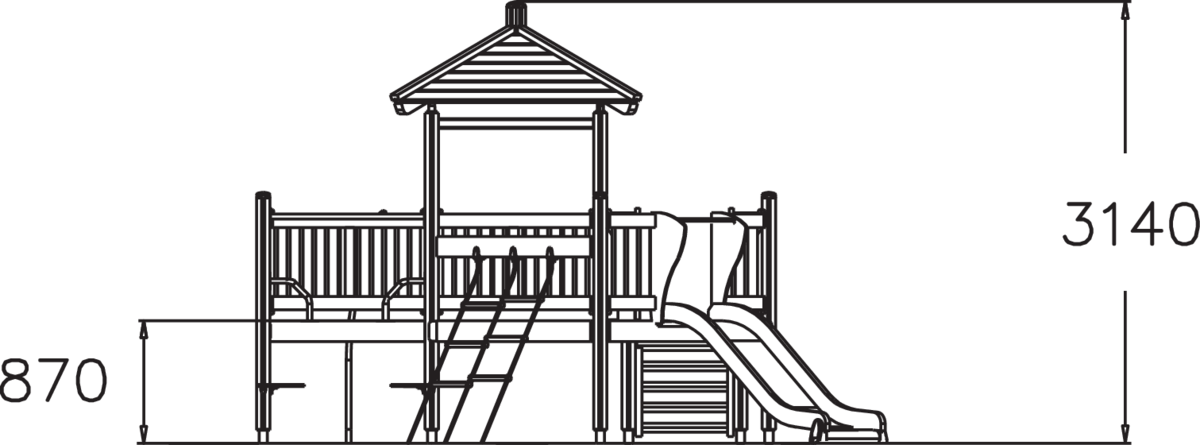

  • Product height, mm
    3140
  • Product lenght, mm
    4490
  • Product width, mm
    3820
  • Height required, mm
    3140
  • IMPACT AREA LENGTH, MM
    7630
  • IMPACT AREA WIDTH, MM
    6600
