120100M

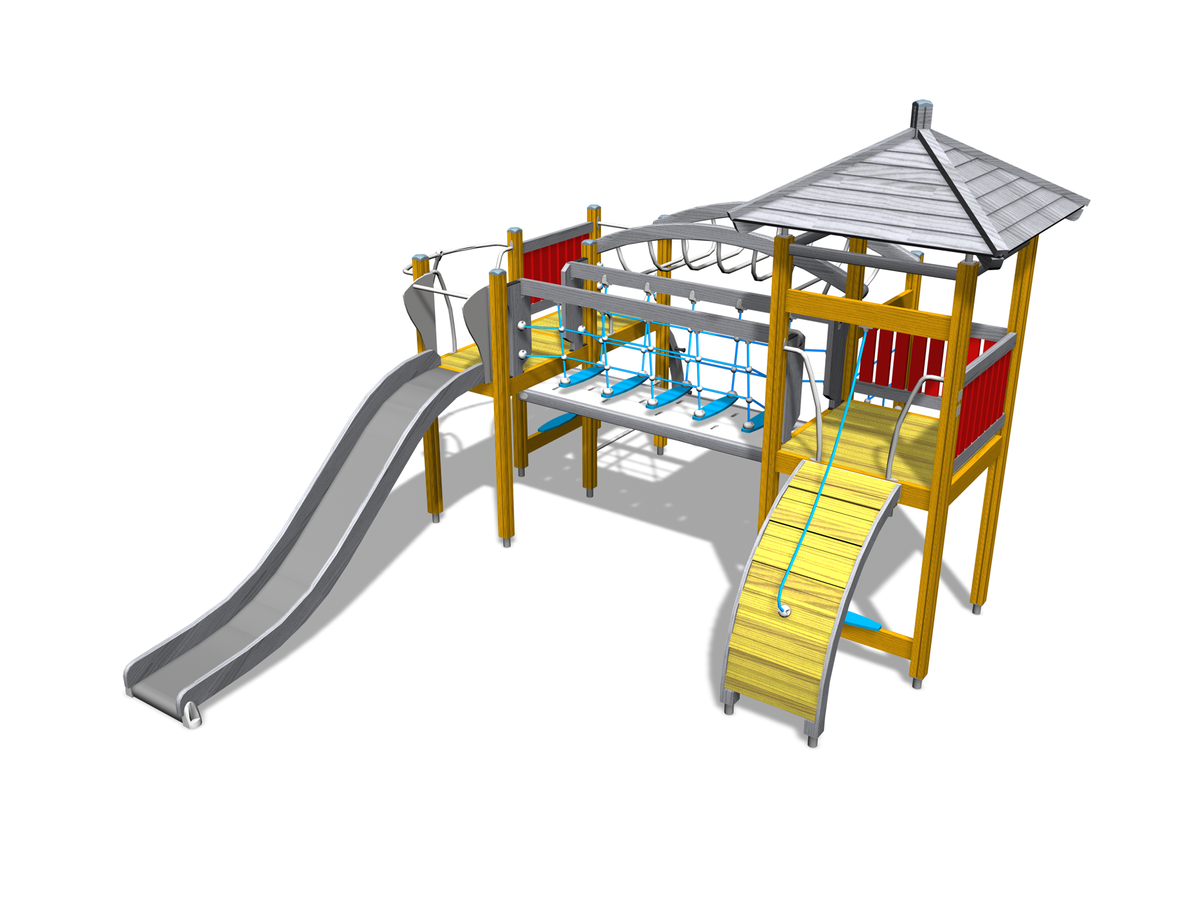

ACTIVITY TOWER

Downloads
701060 BRIDGE 2400 DUCKBOARD 701060 BRIDGE 2400 DUCKBOARD
701052 701052
701053 701053
701055 701055
706453-701SP STEP 15x145x600 BLUE 706453-701SP STEP 15x145x600 BLUE 707255-606SP RAIL 45x120x2480 LIGHT GREY 707255-606SP RAIL 45x120x2480 LIGHT GREY 701055SP HANDRAIL NET 2375x700 120M BLUE 701055SP HANDRAIL NET 2375x700 120M BLUE
Not available
Inquire spare parts for the product using a form Open form for spare part questions
701095 CLIMBING ELEMENT + 1470 CURVED 701095 CLIMBING ELEMENT + 1470 CURVED
701088 MAT, 45x645x1698 701088 MAT, 45x645x1698
701293 701293
701088-604SP1 CLIMBING ELEMENT CURVED +1480, with 120M bar element LIQUORICE GREY 701088-604SP1 CLIMBING ELEMENT CURVED +1480, with 120M bar element LIQUORICE GREY
701088 MAT, 45x645x1698 701088 MAT, 45x645x1698 701293SP CLIMBING ROPE L 2085 for wooden beam 701293SP CLIMBING ROPE L 2085 for wooden beam
701428 701428
701428SP POST 93x93x2250 YELLOW 701428SP POST 93x93x2250 YELLOW
701434 701434
701434SP POST 93x93x2850 YELLOW 701434SP POST 93x93x2850 YELLOW
701450 701450
701450SP ROOF 120M DIAMOND 701450SP ROOF 120M DIAMOND
701478 701478
701478SP BOOM 45x145x724 YELLOW 701478SP BOOM 45x145x724 YELLOW
701482 701482
701482SP BOOM 45x145x1124 (005692) YELLOW 701482SP BOOM 45x145x1124 (005692) YELLOW
701552 701552
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
701553 701553
701553-705SP RAIL 80M SLIDE GREY 701553-705SP RAIL 80M SLIDE GREY
701555 LIUKUMÄKI,1470 701555 LIUKUMÄKI,1470
701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
706450-604SP SLIDE ELEMENT +1470 GREY DEEP 706450-604SP SLIDE ELEMENT +1470 GREY DEEP 701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
701557 701557
003880SP FLOOR 120M 003880SP FLOOR 120M
701581 FLOOR 80M/120M 701581 FLOOR 80M/120M
701581 FLOOR 80M/120M 701581 FLOOR 80M/120M
701582 701582
701582SP ADAPTER 120M TO 80M GREY 701582SP ADAPTER 120M TO 80M GREY
701594 701594
005061SP FIREMAN BAR +1470, 120M 005061SP FIREMAN BAR +1470, 120M
701606 DEEP FOUNDATION FOOT 701606 DEEP FOUNDATION FOOT
701606 DEEP FOUNDATION FOOT 701606 DEEP FOUNDATION FOOT
701620 701620
701620SP HANGING 2400 BAR ELEMENT 701620SP HANGING 2400 BAR ELEMENT
701623 701623
701623SP NET 1105x1510 FRAME BLUE 701623SP NET 1105x1510 FRAME BLUE
701624 701624
701624SP SAFETY PLATFORM ( 2016 ) 120M GREY 701624SP SAFETY PLATFORM ( 2016 ) 120M GREY
701627 CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE 701627 CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE
905023 905023
706475-604SP CLIMBING ELEMENT 1387x1020x325 GREY 706475-604SP CLIMBING ELEMENT 1387x1020x325 GREY
905023SP HANDLE, WITHOUT HEXAGONAL SCREW 905023SP HANDLE, WITHOUT HEXAGONAL SCREW
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
702750 702750
Not available
Inquire spare parts for the product using a form Open form for spare part questions
702792 702792
707315SP HAND GRIP Ø16 BLACK 707315SP HAND GRIP Ø16 BLACK
901596 SLIDE BAR 90x90x2090 901596 SLIDE BAR 90x90x2090
901596 SLIDE BAR 90x90x2090 901596 SLIDE BAR 90x90x2090
901782 901782
901782SP COVER BAR Ø33x810x324 GREY 901782SP COVER BAR Ø33x810x324 GREY
901785 901785
901785SP BAR ELEMENT 120M GREY 901785SP BAR ELEMENT 120M GREY
901787 901787
Not available
Inquire spare parts for the product using a form Open form for spare part questions
901798 901798
901798SP BAR ELEMENT 283x283 CURVED GREY 901798SP BAR ELEMENT 283x283 CURVED GREY
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909521 BASE FOOT, L=700 909521 BASE FOOT, L=700
909511 909511
909519 909519
909521SP BASE FOOT, L=700 909521SP BASE FOOT, L=700
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650 909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
003786 003786
Not available
Inquire spare parts for the product using a form Open form for spare part questions

Technical information

  • User age
    3

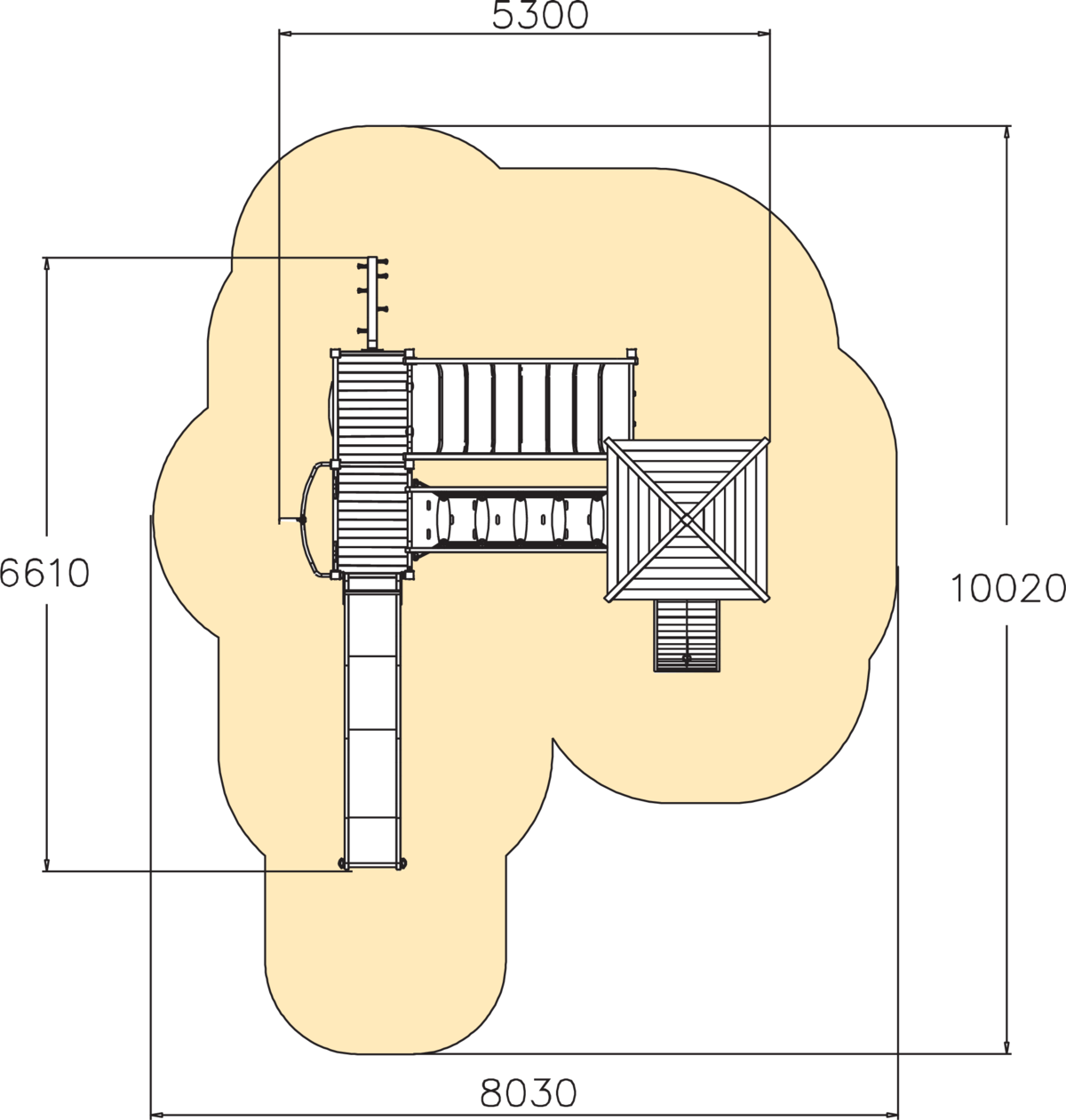

  • FALLING SPACE LENGTH, MM
    8030
  • FALLING SPACE WIDTH, MM
    10110
  • Max. free fall height, mm
    2640
  • Impact area, m²
    55.3

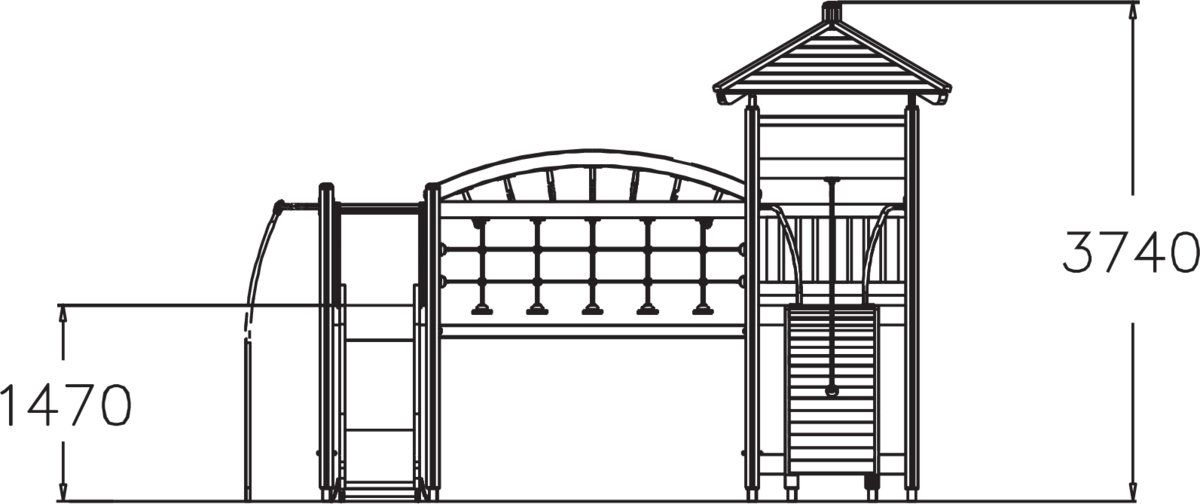

  • Product height, mm
    3740
  • Product lenght, mm
    5300
  • Product width, mm
    6610
  • Height required, mm
    3780
  • IMPACT AREA LENGTH, MM
    8030
  • IMPACT AREA WIDTH, MM
    10020
