Home
/
spareparts
Spare parts
175032
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701553
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703139
ROOF
703139
ROOF
703152
706746SP
WALL WOOD 80M 45x640x701 IMPREGNATED
703299
706452SP
SLIDE ELEMENT +870 IMPREGNATED DEEP
703300
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
703322
703322SP
POST 95x95x2250 IMPREGNATED
703327
POST 93x93x1650 IMPREGNATED
703327
POST 93x93x1650 IMPREGNATED
703329
POST 93x93x2550 IMPREGNATED
703329
POST 93x93x2550 IMPREGNATED
703337
BOOM 45x145x724 IMPREGNATED
703337
BOOM 45x145x724 IMPREGNATED
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909521SP
BASE FOOT, L=700
008710
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

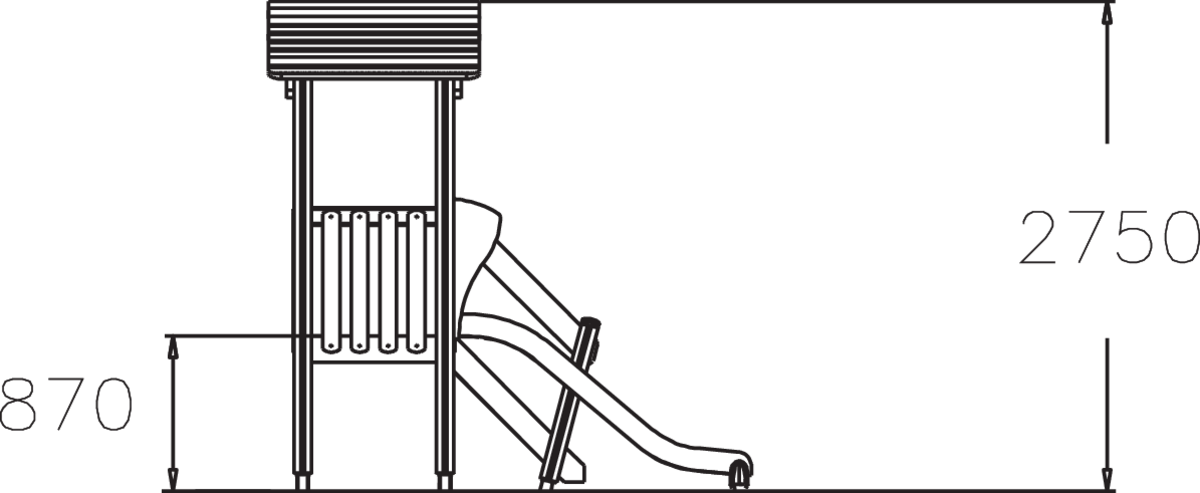

SIDE VIEW 175032 (.dwg)

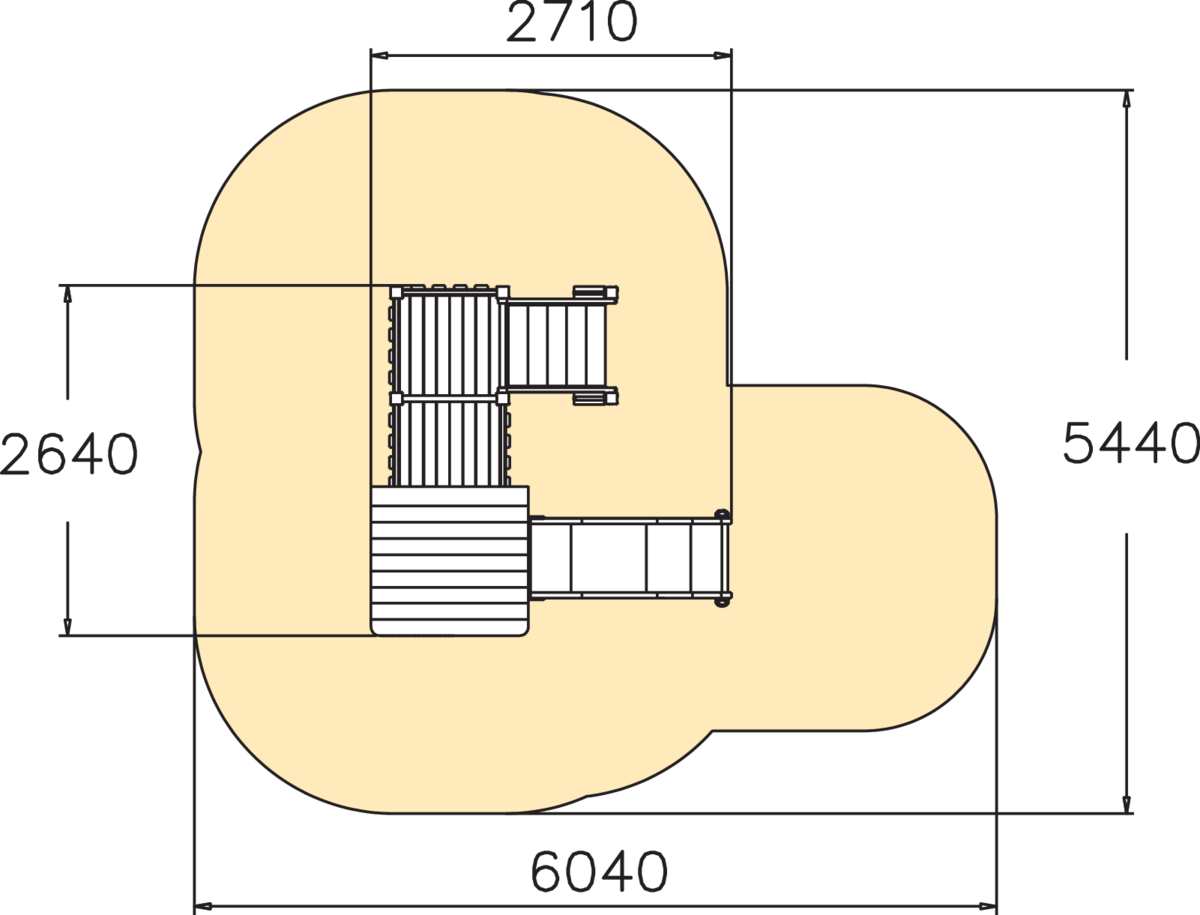

TOP VIEW 175032 (.dwg)
TOWER CLOVER (.dwg)
Technical information
Max. free fall height, mm
1000
Impact area, m²
24.7
Product height, mm
2750
Product lenght, mm
2710
Product width, mm
2640
Height required, mm
2750
IMPACT AREA LENGTH, MM
6040
IMPACT AREA WIDTH, MM
5440
