Home
/
spareparts
Spare parts
150405
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
909519
909519SP
PLATE 50x380x380 FOOTING
929460
903435
GUSSET 550x550x118
960120
METAL POST (club)
960120
METAL POST (club)
006873
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006872
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005358
SPINNING HANDLE
005358
SPINNING HANDLE
005363
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005354
703008SP
NET 2695x1075, TRIANGLE, DEEP FOUNDATION
006892
BOOM (ARENA) 90x145x1200 GREY
006892
BOOM (ARENA) 90x145x1200 GREY
006871
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006886
BOOM 90x145x3300 GREY
006886
BOOM 90x145x3300 GREY
006869
702935SP
U-NET 2700 DEEP (006869)
005355
005355SP
PIROUETTE ROPE ELEMENT
005361
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006860
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005360
707614-603SP
NET ASSEMBLY
005365
CAP PLATE
005365
CAP PLATE
Downloads
HERACLES (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

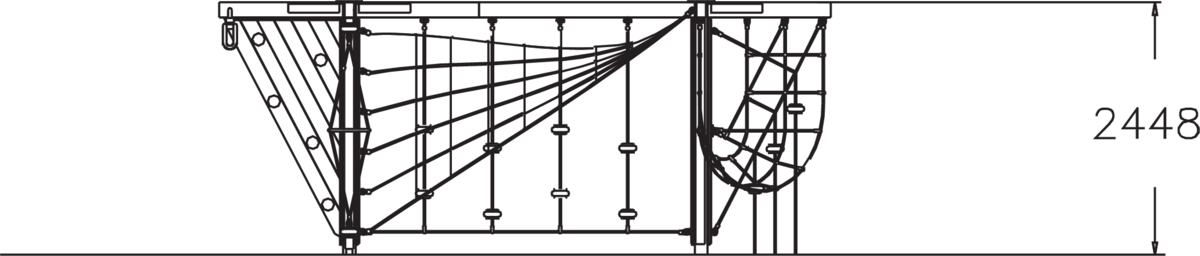

SIDE VIEW 150405 (.dwg)

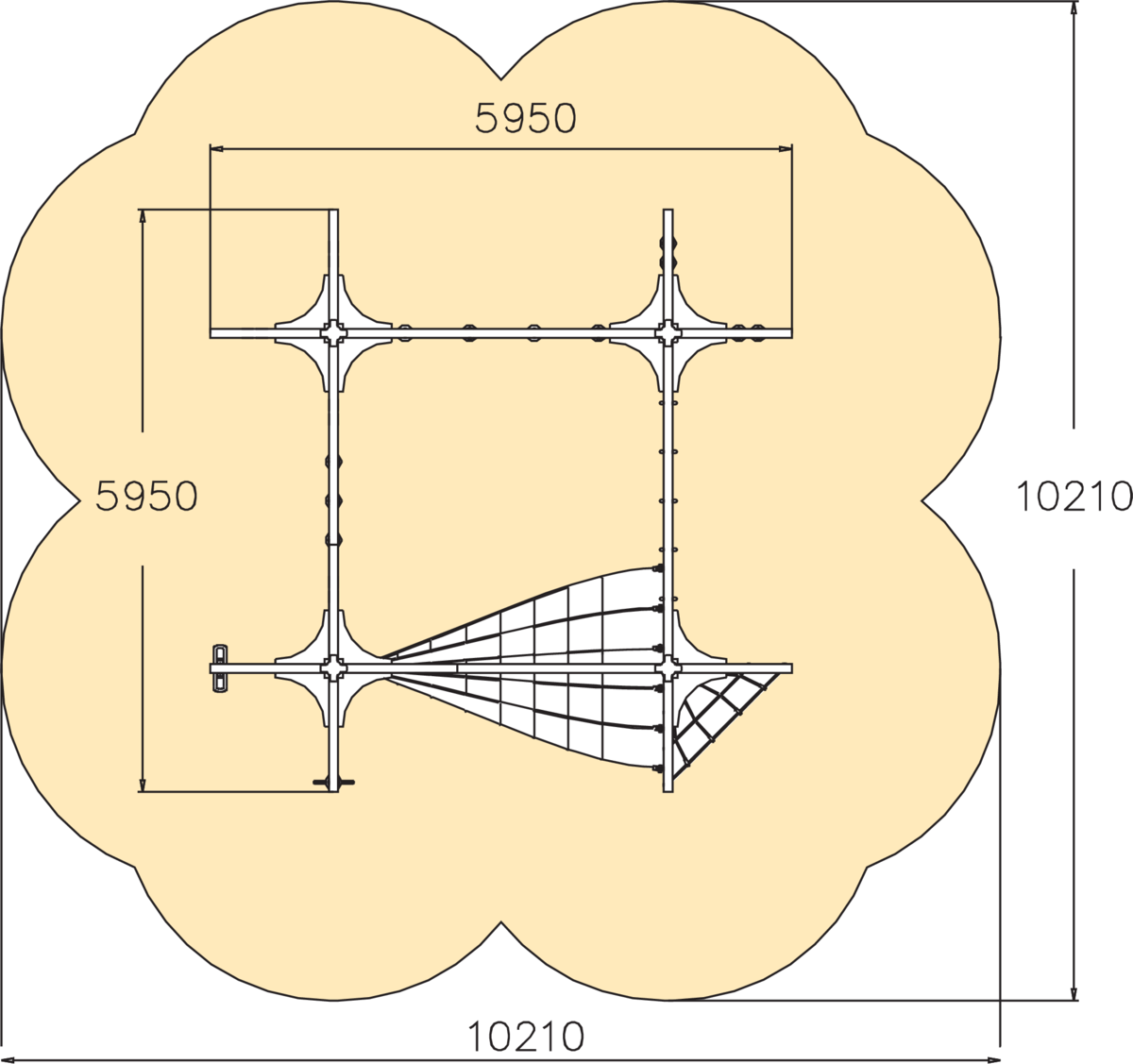

TOP VIEW 150405 (.dwg)
Technical information
User age
6
Max. free fall height, mm
2450
Impact area, m²
87.7
Product height, mm
2448
Product lenght, mm
5950
Product width, mm
5950
Height required, mm
4000
IMPACT AREA LENGTH, MM
10210
IMPACT AREA WIDTH, MM
10210
