Home
/
spareparts
Spare parts
150210
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
700219
700219SP
PLATFORM NET
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
907040
FOUNDATION PART
907040
FOUNDATION PART
929331
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
929341
ATTACHMENT IRON (1 BRANCH)
929341
ATTACHMENT IRON (1 BRANCH)
960120
METAL POST (club)
960120
METAL POST (club)
006889
BALANCE BEAM
006889
BALANCE BEAM
006879
ROPE HANDRAIL
006879
ROPE HANDRAIL
005362
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006869
702935SP
U-NET 2700 DEEP (006869)
006884
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006861
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006860
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005361
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006892
BOOM (ARENA) 90x145x1200 GREY
006892
BOOM (ARENA) 90x145x1200 GREY
005363
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005360
707614-603SP
NET ASSEMBLY
006877
SUPPORT ROPE
006877
SUPPORT ROPE
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

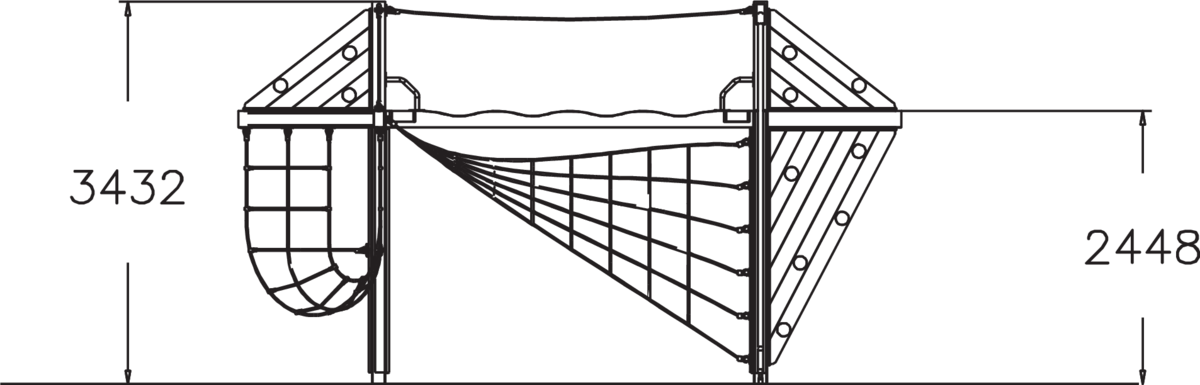

SIDE VIEW 150210 (.dwg)
TOP VIEW 150210 (.dwg)
Technical information
User age
8
Max. free fall height, mm
2450
Impact area, m²
52.6
Product height, mm
3432
Product lenght, mm
2525
Product width, mm
5950
Height required, mm
4250
IMPACT AREA LENGTH, MM
6790
IMPACT AREA WIDTH, MM
10210
