Home
/
spareparts
Spare parts
150200
Downloads
Spare parts
Downloads
Technical information
Spare part sets
707614-603SP
NET ASSEMBLY
Original product structure
Spare parts
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
909519
909519SP
PLATE 50x380x380 FOOTING
929460
903435
GUSSET 550x550x118
960120
METAL POST (club)
960120
METAL POST (club)
005361
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005355
005355SP
PIROUETTE ROPE ELEMENT
006860
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
006892
BOOM (ARENA) 90x145x1200 GREY
006892
BOOM (ARENA) 90x145x1200 GREY
005358
SPINNING HANDLE
005358
SPINNING HANDLE
006870
706600-301SP
TRAPEZE BLUE ROPE
005360
707614-603SP
NET ASSEMBLY
005365
CAP PLATE
005365
CAP PLATE
005363
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005354
703008SP
NET 2695x1075, TRIANGLE, DEEP FOUNDATION
006886
BOOM 90x145x3300 GREY
006886
BOOM 90x145x3300 GREY
Downloads
APOLLO (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

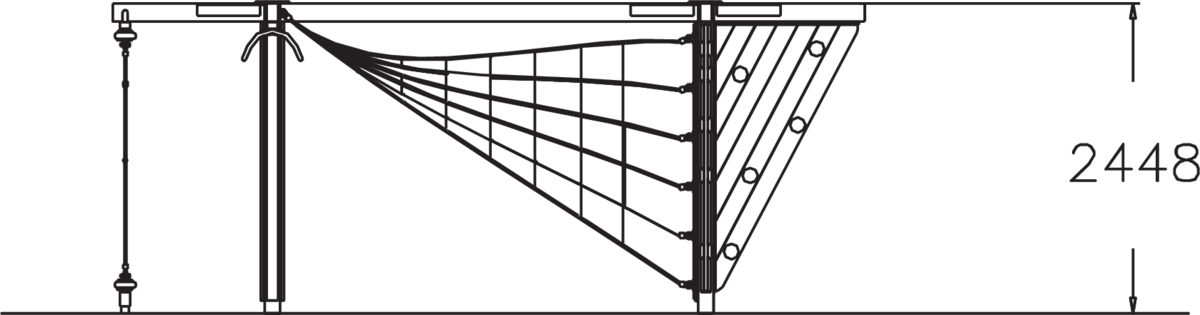

SIDE VIEW 150200 (.dwg)

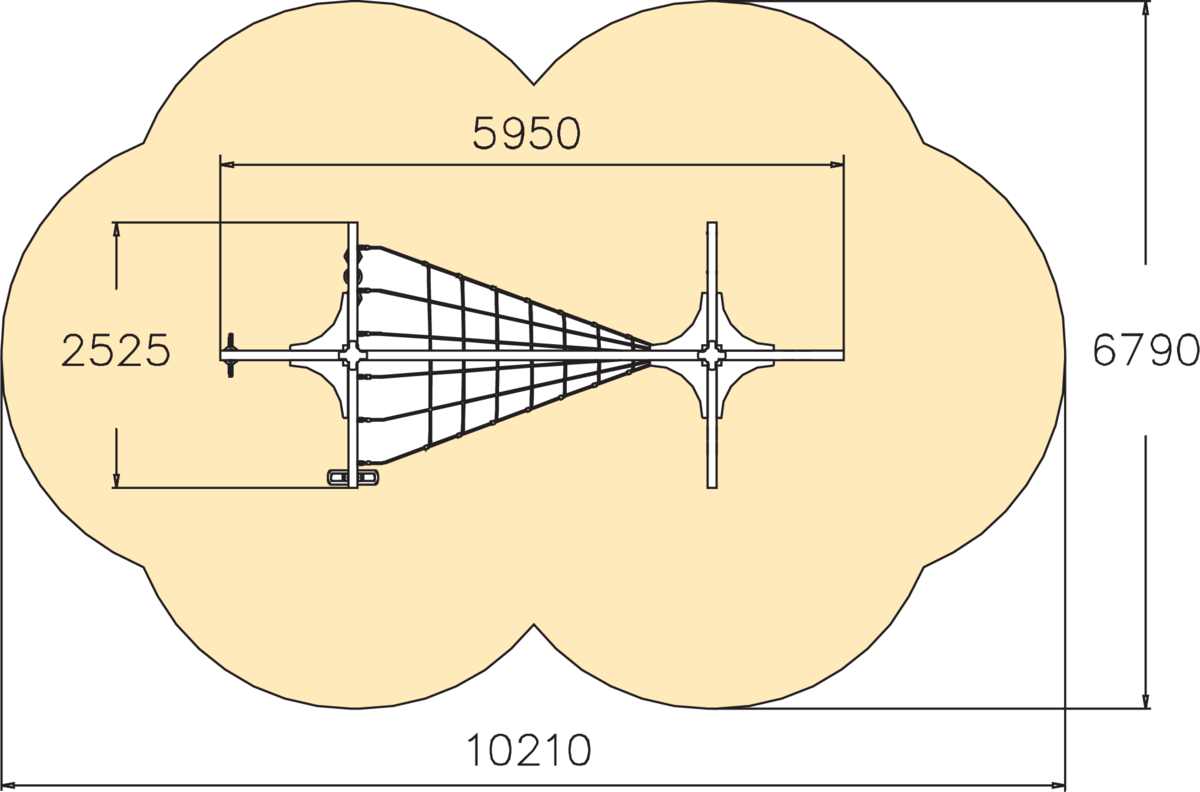

TOP VIEW 150200 (.dwg)
Technical information
User age
6
Max. free fall height, mm
2450
Impact area, m²
54
Product height, mm
2448
Product lenght, mm
2525
Product width, mm
5950
Height required, mm
4000
IMPACT AREA LENGTH, MM
6790
IMPACT AREA WIDTH, MM
10210
