Home
/
spareparts
Spare parts
142019M
Downloads
Spare parts
Downloads
Technical information
Spare part sets
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
701428
701428SP
POST 93x93x2250 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701553
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701554
701554SP
THRESHOLD PLATE 15x160x702 (006581)
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701931
701931SP
FOUNDATION TWINPOST FOOT DEEP
707202
STAIRS +1470 OLD GREY
707202
STAIRS +1470 OLD GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
707145-604
POST 43x93x717 GREY STAIRS 20
707145-604
POST 43x93x717 GREY STAIRS 20
707192-604
STAIR ELEMENT +1470 GREY
707192-604
STAIR ELEMENT +1470 GREY
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
LIUKUMÄKI (.dwg)

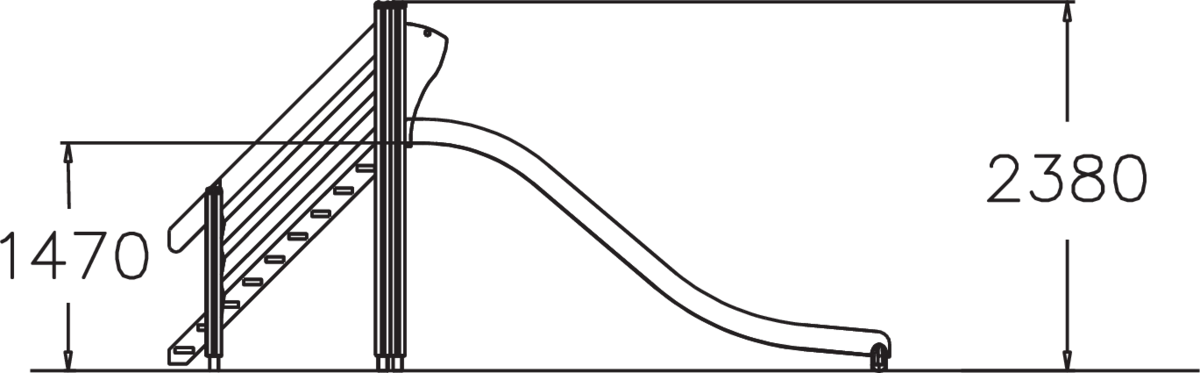

SIDE VIEW 142019M (.dwg)

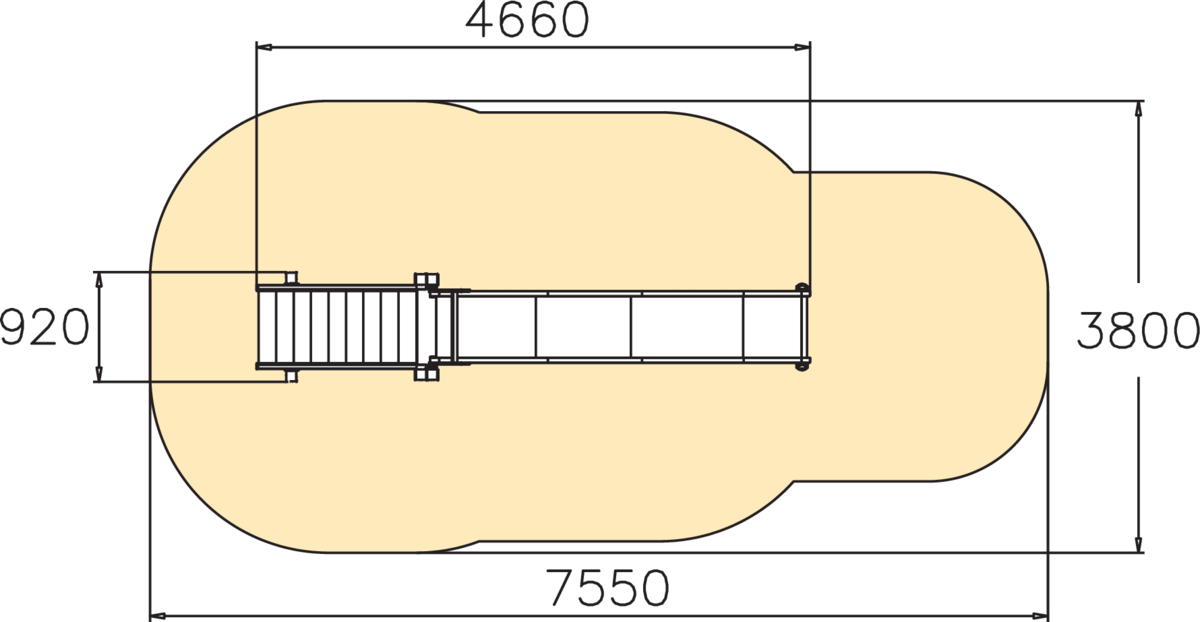

TOP VIEW 142019M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1485
Impact area, m²
23.8
Product height, mm
2380
Product lenght, mm
4660
Product width, mm
920
Height required, mm
3270
IMPACT AREA LENGTH, MM
7570
IMPACT AREA WIDTH, MM
3800
