Home
/
spareparts
Spare parts
141115M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701422
703327SP
POST 93x93x1650 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701554
701554SP
THRESHOLD PLATE 15x160x702 (006581)
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701720
JUMBO SIDE PLATE
701720
JUMBO SIDE PLATE
701721
JUMBON EAR, 568x333x15
701721
JUMBON EAR, 568x333x15
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
701931
701931SP
FOUNDATION TWINPOST FOOT DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702729
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707201
STAIR +870 OLD GREY
Open substructure
707146-705
707145-604
POST 43x93x717 GREY STAIRS 20
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707191-604
STAIR ELEMENT +870 STAIR GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
002305
706539SP1
TUBE TUNNEL 1135/80M WITH BLUE START PLATE
PO0285
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
JUMBO (.dwg)

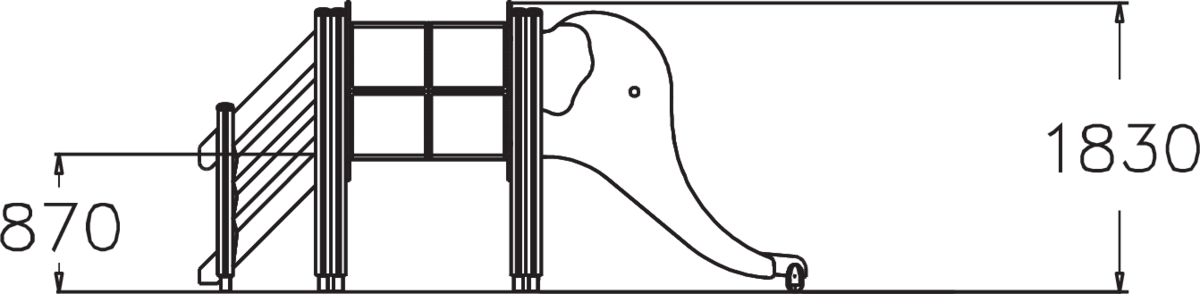

SIDE VIEW 141115M (.dwg)

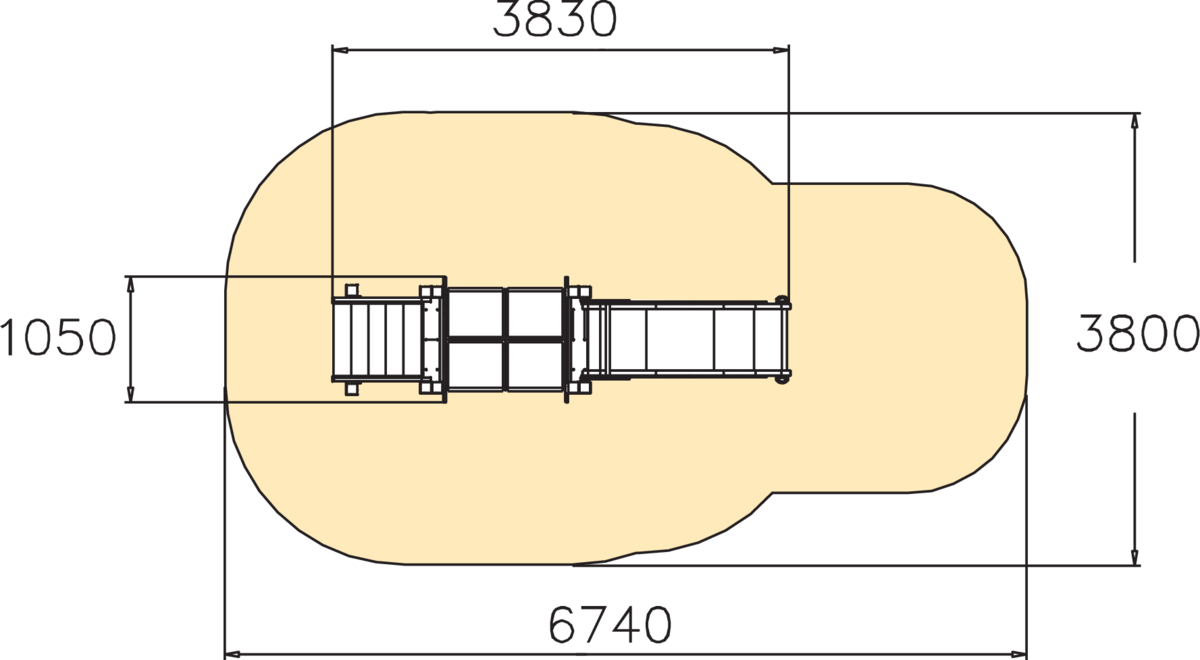

TOP VIEW 141115M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1000
Impact area, m²
21.4
Product height, mm
1830
Product lenght, mm
3830
Product width, mm
1050
Height required, mm
2670
IMPACT AREA LENGTH, MM
6740
IMPACT AREA WIDTH, MM
3880
