Home
/
spareparts
Spare parts
138150M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701325
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701428
701428SP
POST 93x93x2250 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701553
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701606
DEEP FOUNDATION FOOT
701606
DEEP FOUNDATION FOOT
701626
007441SP
FIREMAN BAR +1470, 80M BAR NEW
701627
CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE
Open substructure
706475-604SP
CLIMBING ELEMENT 1387x1020x325 GREY
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702792
707315SP
HAND GRIP Ø16 BLACK
702899
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901596
SLIDE BAR 90x90x2090
901596
SLIDE BAR 90x90x2090
901787
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
008710
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
PANDANPESÄ (.dwg)

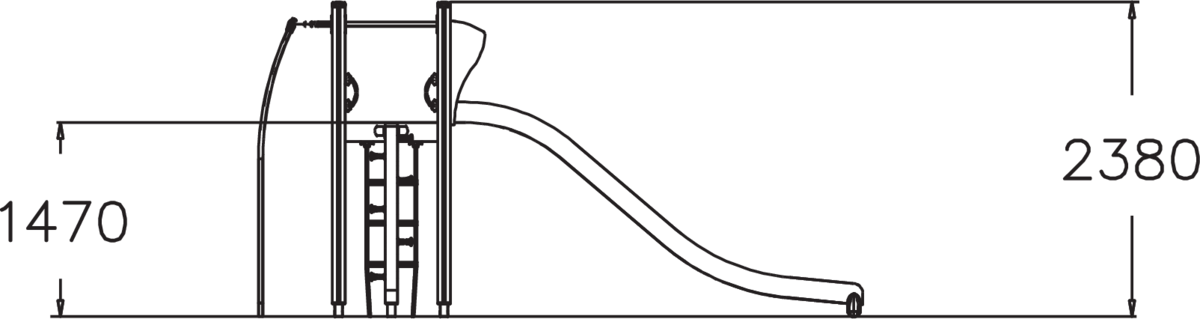

SIDE VIEW 138150M (.dwg)

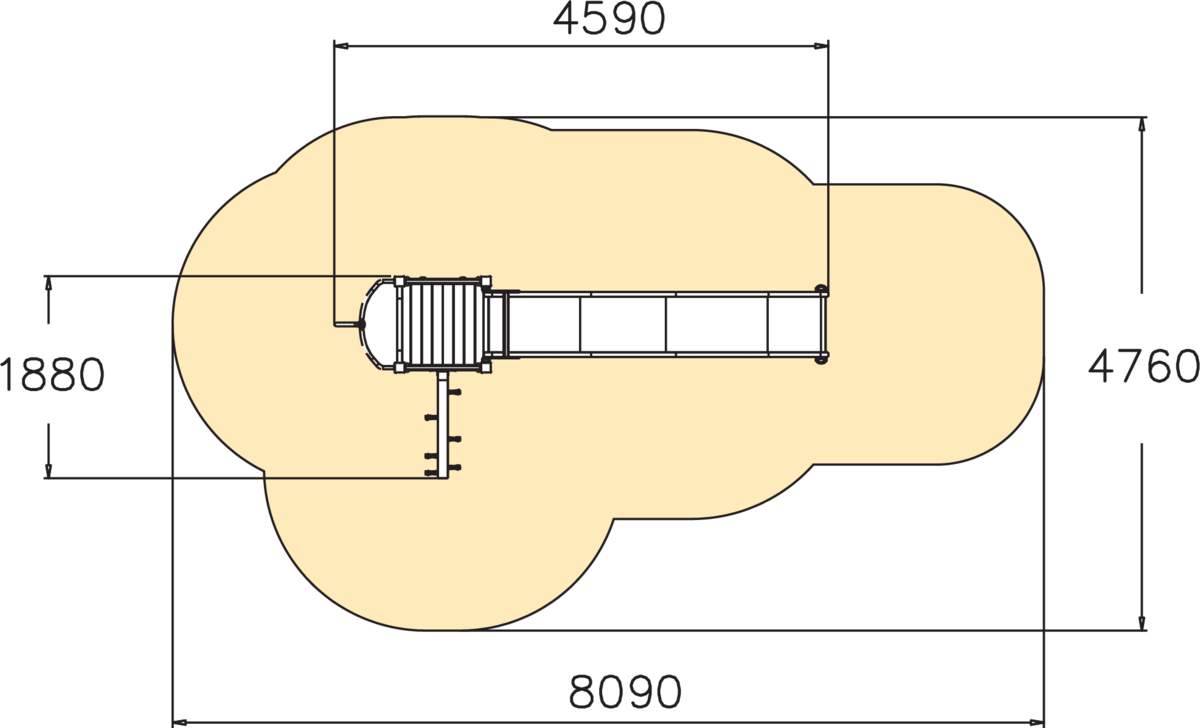

TOP VIEW 138150M (.dwg)
Technical information
User age
4
Max. free fall height, mm
1470
Impact area, m²
27.4
Product height, mm
2380
Product lenght, mm
4590
Product width, mm
1880
Height required, mm
3270
IMPACT AREA LENGTH, MM
8090
IMPACT AREA WIDTH, MM
4760
