Spare parts

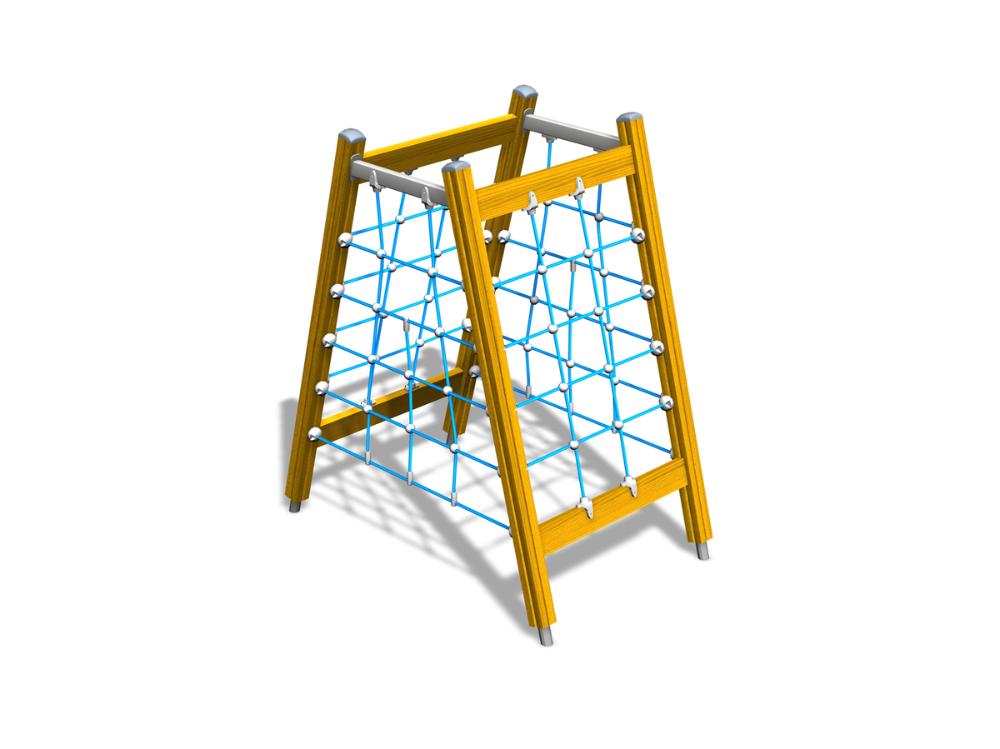

138072M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701280
701280SP
NET, 1569x1545
701428
701428SP
POST 93x93x2250 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701623
701623SP
NET 1105x1510 FRAME BLUE
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
Downloads
APINAPUU (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

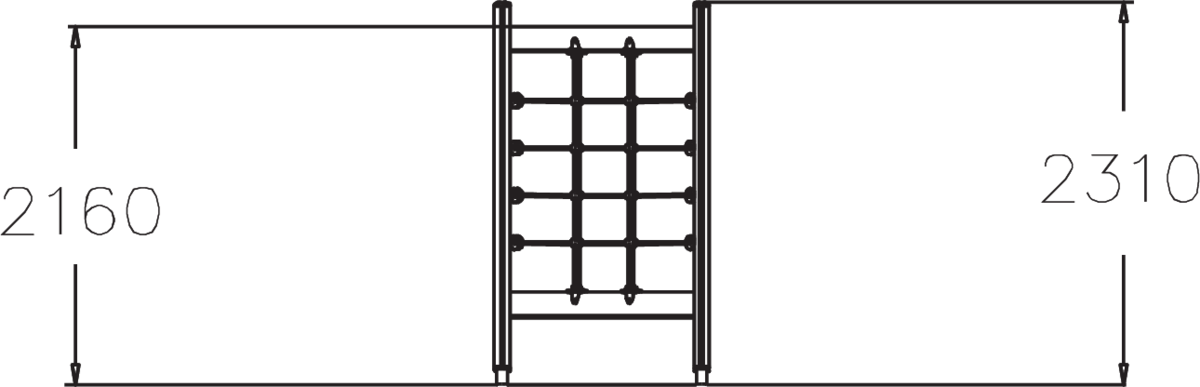

SIDE VIEW 138072M (.dwg)

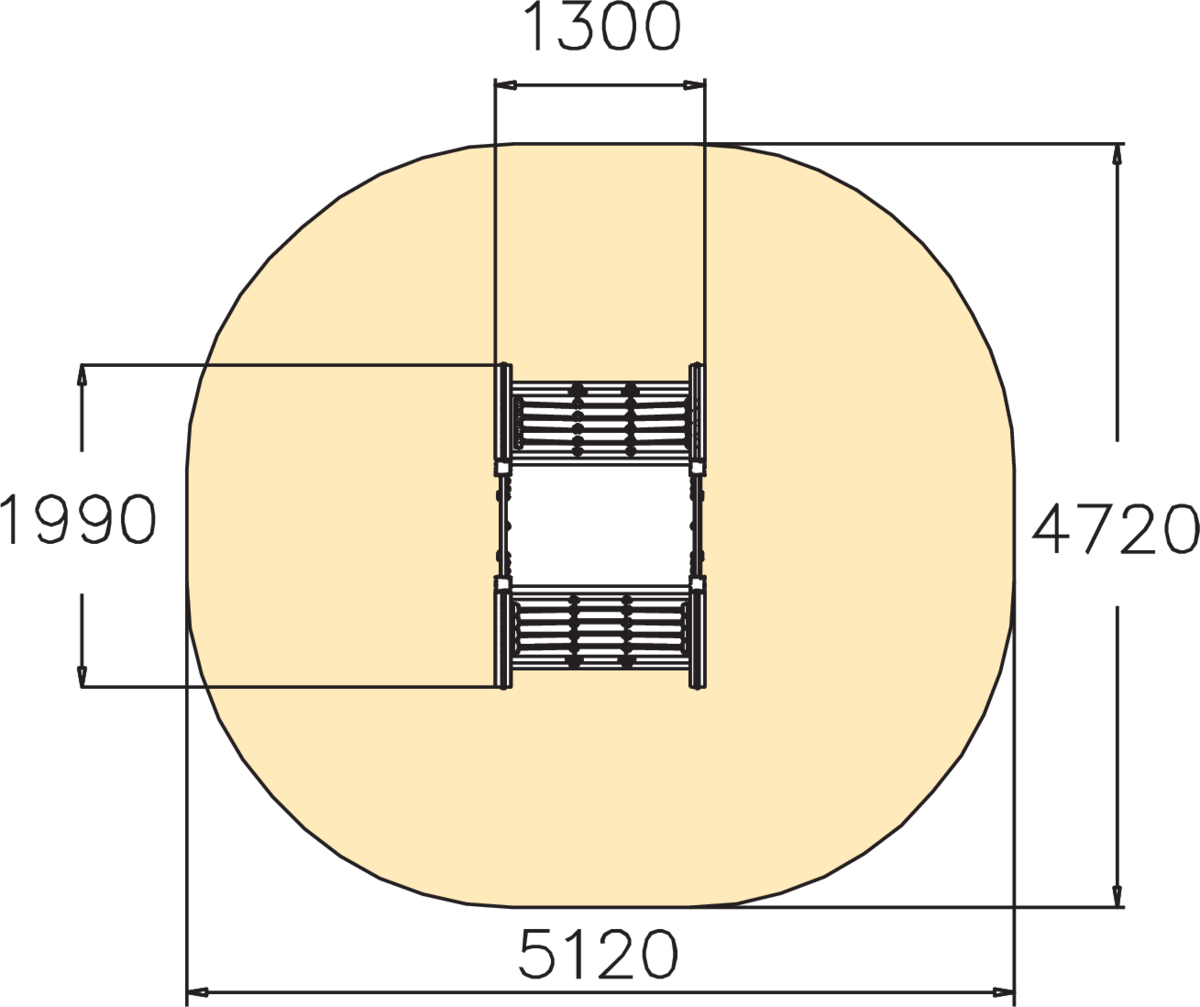

TOP VIEW 138072M (.dwg)
Technical information
User age
3
Max. free fall height, mm
2160
Impact area, m²
20.6
Product height, mm
2310
Product lenght, mm
1300
Product width, mm
1990
Height required, mm
3660
IMPACT AREA LENGTH, MM
5120
IMPACT AREA WIDTH, MM
4720
Back
Show products
