138035M

Downloads
701052 701052
Not available
Inquire spare parts for the product using a form Open form for spare part questions
701053 701053
707255-604SP RAIL 45x120x2480 GRAY 707255-604SP RAIL 45x120x2480 GRAY
701161 701161
701161SP BRIDGE 2400 PLANK 80 MODUL 701161SP BRIDGE 2400 PLANK 80 MODUL
701422 701422
703327SP POST 93x93x1650 YELLOW 703327SP POST 93x93x1650 YELLOW
701428 701428
701428SP POST 93x93x2250 YELLOW 701428SP POST 93x93x2250 YELLOW
701434 701434
701434SP POST 93x93x2850 YELLOW 701434SP POST 93x93x2850 YELLOW
701437 701437
701437SP POST 95x95x3450 YELLOW 701437SP POST 95x95x3450 YELLOW
701478 701478
701478SP BOOM 45x145x724 YELLOW 701478SP BOOM 45x145x724 YELLOW
701553 701553
701553-705SP RAIL 80M SLIDE GREY 701553-705SP RAIL 80M SLIDE GREY
701555 LIUKUMÄKI,1470 701555 LIUKUMÄKI,1470
701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
706450-604SP SLIDE ELEMENT +1470 GREY DEEP 706450-604SP SLIDE ELEMENT +1470 GREY DEEP 701928 SLIDE FOUNDATION PART, DEEP 701928 SLIDE FOUNDATION PART, DEEP
701589 701589
Not available
Inquire spare parts for the product using a form Open form for spare part questions
701595 701595
707328-701SP CLOUD ROOF 2015 10x750x1290 BLUE 707328-701SP CLOUD ROOF 2015 10x750x1290 BLUE
701598 701598
908207-216SP SUPPORT 336x392x40 CLOUD ROOF 2015 908207-216SP SUPPORT 336x392x40 CLOUD ROOF 2015
701666 701666
701666SP STEP 15x265x275 DARK GREY 701666SP STEP 15x265x275 DARK GREY
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
702729 702729
Not available
Inquire spare parts for the product using a form Open form for spare part questions
702750 702750
907701-216SP HAND GRIP 40x545x114 GRAY 907701-216SP HAND GRIP 40x545x114 GRAY
702792 702792
707315SP HAND GRIP Ø16 BLACK 707315SP HAND GRIP Ø16 BLACK
703183 703183
703183SP HANDRAIL NET 2305x650 703183SP HANDRAIL NET 2305x650
901787 901787
Not available
Inquire spare parts for the product using a form Open form for spare part questions
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
905803 905803
905803SP BASE MODULE SMALL CURVED YELLOW 905803SP BASE MODULE SMALL CURVED YELLOW
905813 905813
905813SP BASE MODULE BIG CURVED YELLOW 905813SP BASE MODULE BIG CURVED YELLOW
905823 905823
905823SP BASE MOD.STRAIGHT (YELLOW) 905823SP BASE MOD.STRAIGHT (YELLOW)
905829 905829
905829SP BASE MOD.STRAIGHT (SEE-THROUGH) 905829SP BASE MOD.STRAIGHT (SEE-THROUGH)
909521 BASE FOOT, L=700 909521 BASE FOOT, L=700
909511 909511
909519 909519
909521SP BASE FOOT, L=700 909521SP BASE FOOT, L=700
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650 909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
002002 002002
707918SP1 TUBE TUNNEL PLATE PACKAGE BLUE 80M (002002) 707918SP1 TUBE TUNNEL PLATE PACKAGE BLUE 80M (002002)
002940 002940
Not available
Inquire spare parts for the product using a form Open form for spare part questions
005272 005272
706766-701SP LABYRINTH PLAY PANEL 640x702 BLUE 706766-701SP LABYRINTH PLAY PANEL 640x702 BLUE
007530 007530
Not available
Inquire spare parts for the product using a form Open form for spare part questions
008710 008710
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)
008875 008875
707328-707SP CLOUD ROOF 2015 10x750x1290 GREEN 707328-707SP CLOUD ROOF 2015 10x750x1290 GREEN

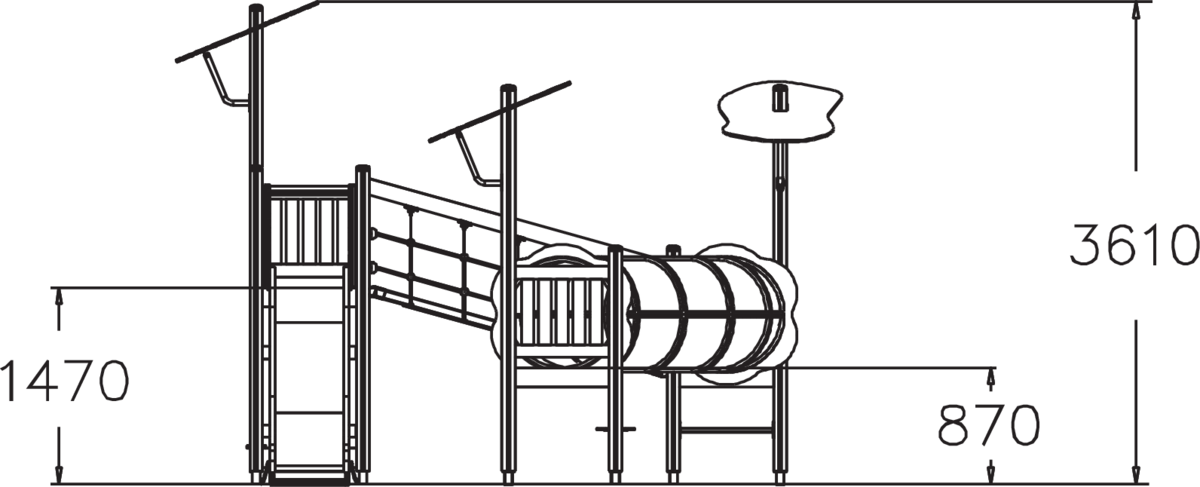

Technical information

  • User age
    3
  • Max. free fall height, mm
    1470
  • Impact area, m²
    41.4
  • Product height, mm
    3610

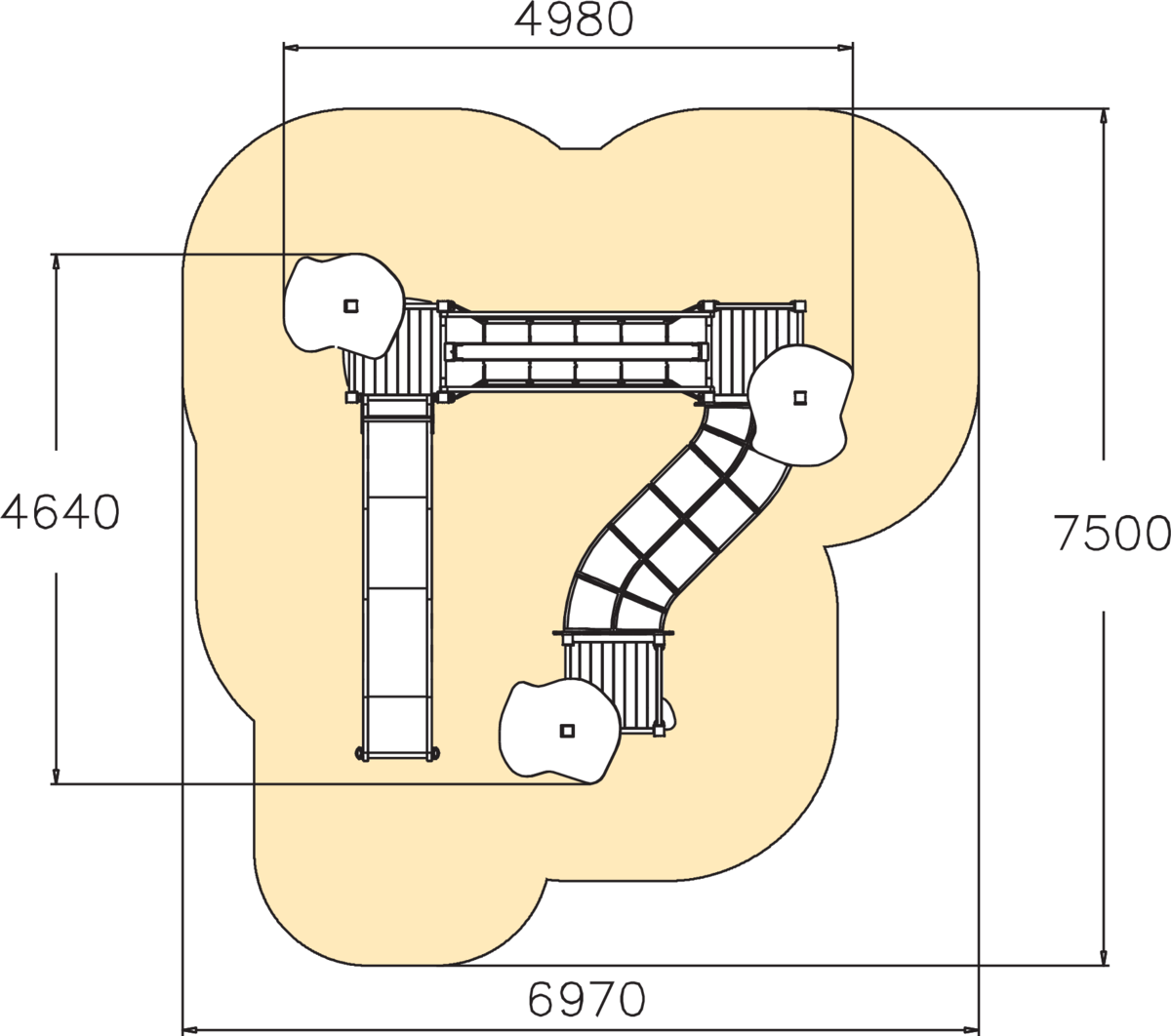

  • Product lenght, mm
    4980
  • Product width, mm
    4640
  • Height required, mm
    3610
  • IMPACT AREA LENGTH, MM
    6970
  • IMPACT AREA WIDTH, MM
    7500
