Home
/
spareparts
Spare parts
138032M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701052
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701422
703327SP
POST 93x93x1650 YELLOW
701431
701431SP
POST 95x95x2550 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701553
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701591
706746-607SP
WALL WOOD 80M 45x640x701 RED
701600
705955-701SP
ROOF PLATES BLUE
701605
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702792
707315SP
HAND GRIP Ø16 BLACK
702899
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702945
706461
PLATE 15x400x703 DARK GREY
707201
STAIR +870 OLD GREY
Open substructure
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
901787
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901790
HORIZONTAL BAR, 50x130x505
901790
HORIZONTAL BAR, 50x130x505
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
008710
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
JÄNISPOLKU (.dwg)

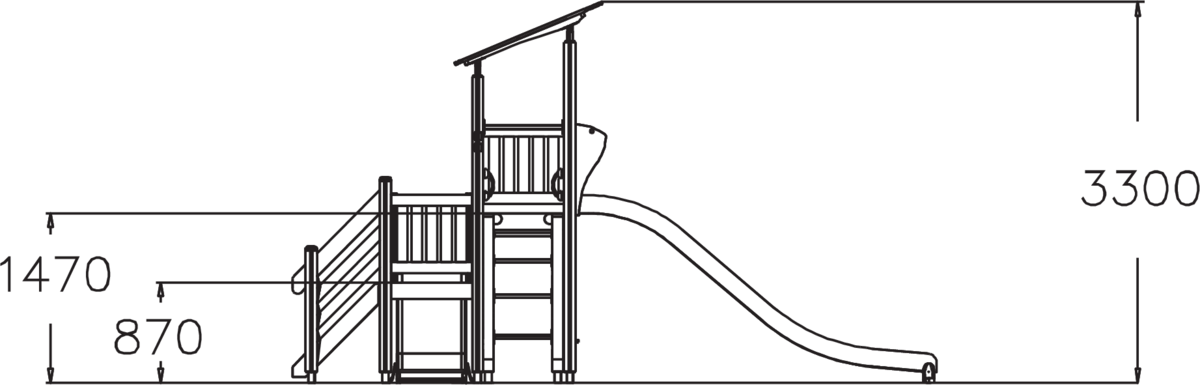

SIDE VIEW 138032M (.dwg)

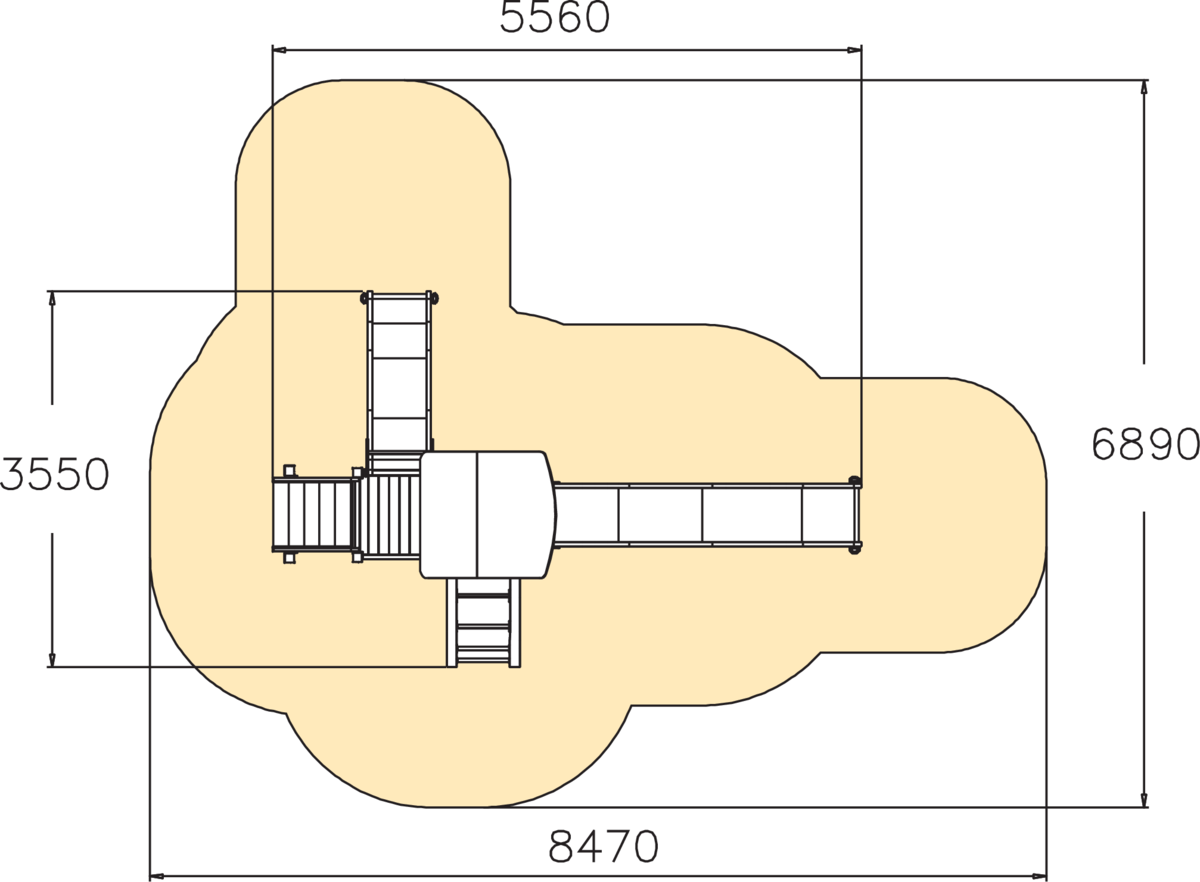

TOP VIEW 138032M (.dwg)
Technical information
User age
1
Max. free fall height, mm
1470
Impact area, m²
35
Product height, mm
3300
Product lenght, mm
5560
Product width, mm
3550
Height required, mm
3300
IMPACT AREA LENGTH, MM
8470
IMPACT AREA WIDTH, MM
6890
