Home
/
spareparts
Spare parts
138026M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701105
NET RAMP
Open substructure
701100
701105SP
CLIMBING CURVED NET +1470 OLD FINNO
701100SP
NET 1455x505 CURVED BLUE
701422
703327SP
POST 93x93x1650 YELLOW
701428
701428SP
POST 93x93x2250 YELLOW
701437
701437SP
POST 95x95x3450 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701553
701553-705SP
RAIL 80M SLIDE GREY
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701589
706746-610SP
WALL WOOD 80M 45x640x701 YELLOW
701598
908207-216SP
SUPPORT 336x392x40 CLOUD ROOF 2015
701627
CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE
Open substructure
706475-604SP
CLIMBING ELEMENT 1387x1020x325 GREY
701700
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702729
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702792
707315SP
HAND GRIP Ø16 BLACK
901787
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905823
905823SP
BASE MOD.STRAIGHT (YELLOW)
905829
905829SP
BASE MOD.STRAIGHT (SEE-THROUGH)
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003974
707304SP
TELESCOPE
005271
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
007530
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
008710
008710SP
FLOOR 80M (008701)
008875
707328-707SP
CLOUD ROOF 2015 10x750x1290 GREEN
002308
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
JÄÄKARHULUOLA (.dwg)

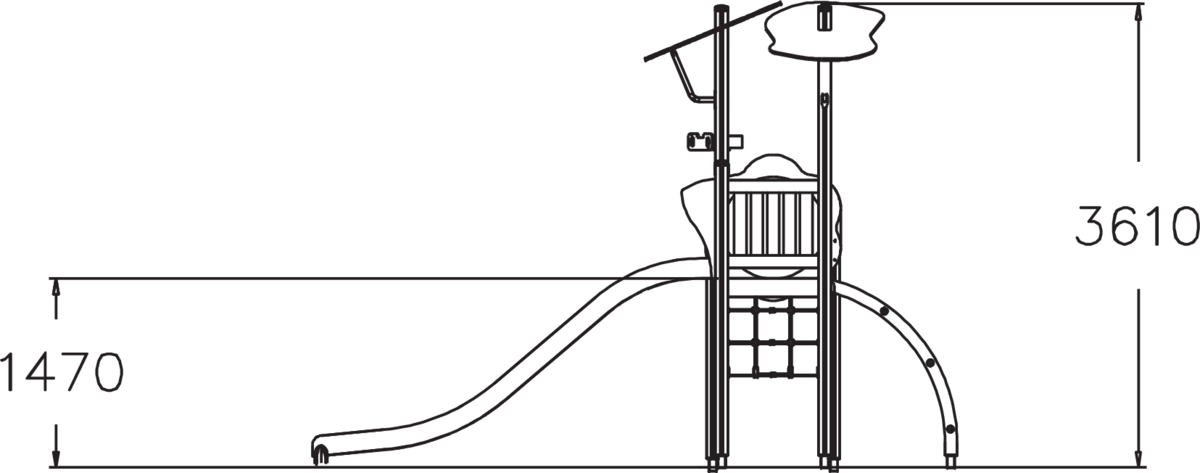

SIDE VIEW 138026M (.dwg)

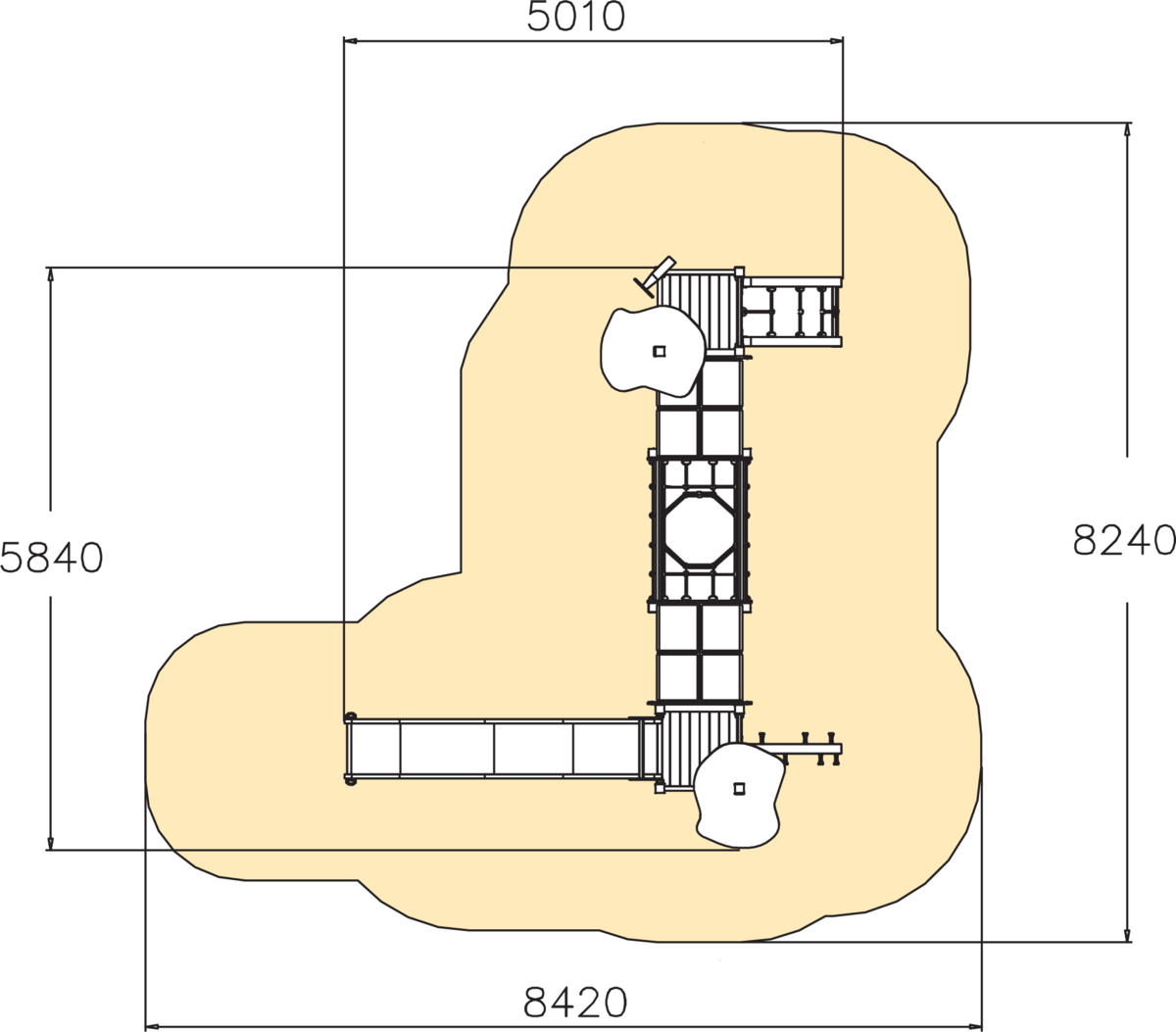

TOP VIEW 138026M (.dwg)
Technical information
User age
4
Max. free fall height, mm
2210
Impact area, m²
47.1
Product height, mm
3610
Product lenght, mm
5010
Product width, mm
5840
Height required, mm
3610
IMPACT AREA LENGTH, MM
8420
IMPACT AREA WIDTH, MM
8240
