Home
/
spareparts
Spare parts
138015M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701413
POST, 95x95x1050 YELLOW
701413
POST, 95x95x1050 YELLOW
706466-603
POST 93x93x1025 BROWN
701416
701401SP
POST 95X95X1250 YELLOW
701419
POST, 95x95x1450 YELLOW
701419
POST, 95x95x1450 YELLOW
701422
703327SP
POST 93x93x1650 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701538
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701589
706746-610SP
WALL WOOD 80M 45x640x701 YELLOW
701596
707328-707SP
CLOUD ROOF 2015 10x750x1290 GREEN
701647
BOOM DIAGONAL 80M YELLOW incl. fastening parts
701647
BOOM DIAGONAL 80M YELLOW incl. fastening parts
701655
706997-610SP
WOODEN WALL 80MD 45x640x984 YELLOW
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703704
703704-705SP
RAIL 80MDL SLIDE GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
005282
707453-701SP
WINDOW PLAY PANEL 640x702 BLUE
007530
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
008714
008714SP
TRIANGLE FLOOR 80M ( 008705 )
008875
707328-707SP
CLOUD ROOF 2015 10x750x1290 GREEN
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
ORAVAPUU (.dwg)

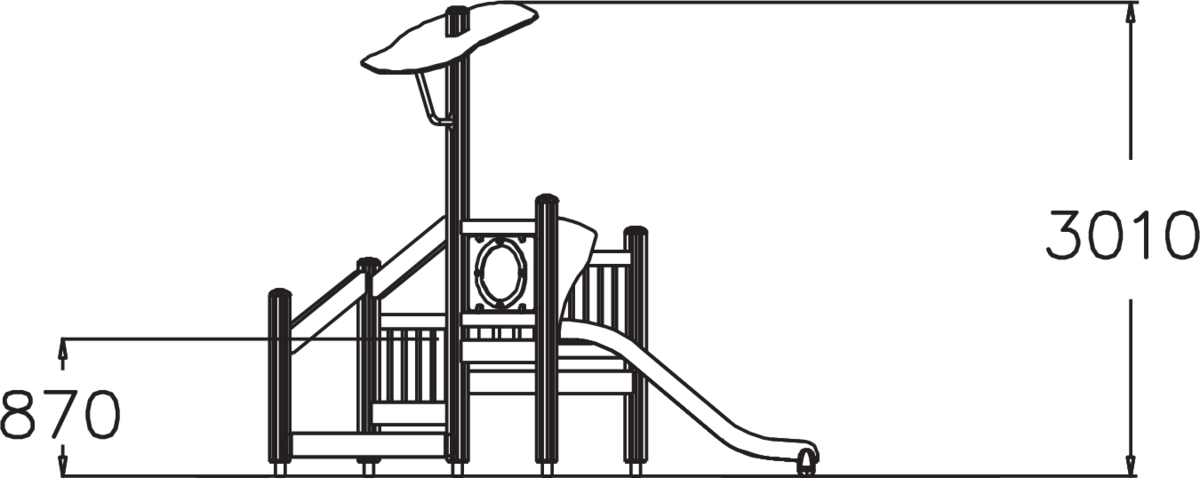

SIDE VIEW 138015M (.dwg)

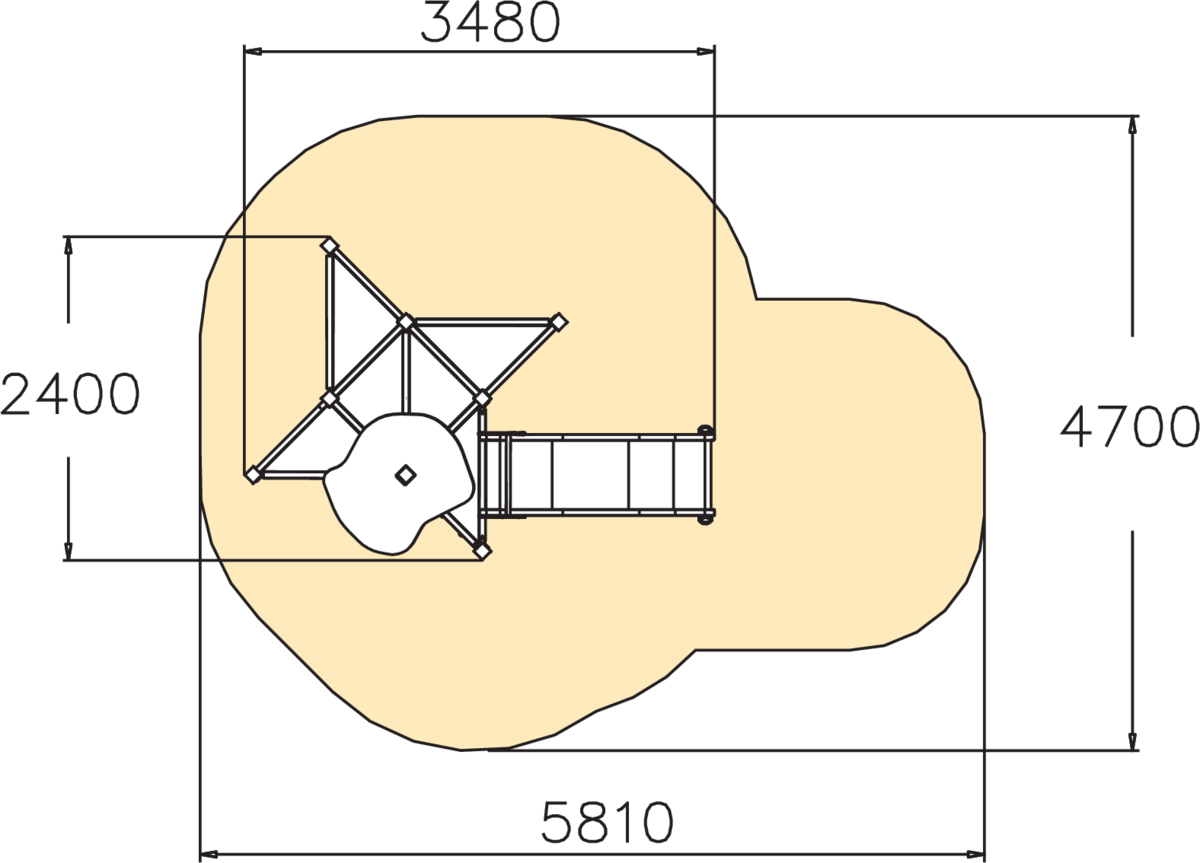

TOP VIEW 138015M (.dwg)
Technical information
User age
1
Max. free fall height, mm
1000
Impact area, m²
20.4
Product height, mm
3010
Product lenght, mm
3480
Product width, mm
2400
Height required, mm
3010
IMPACT AREA LENGTH, MM
5810
IMPACT AREA WIDTH, MM
4700
