Home
/
spareparts
Spare parts
120835
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
700268
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701095
CLIMBING ELEMENT + 1470 CURVED
Open substructure
701088-604SP1
CLIMBING ELEMENT CURVED +1480, with 120M bar element LIQUORICE GREY
701105
NET RAMP
Open substructure
701105SP
CLIMBING CURVED NET +1470 OLD FINNO
701428
701428SP
POST 93x93x2250 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701437
701437SP
POST 95x95x3450 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701557
003880SP
FLOOR 120M
701569
003886SP
TRIANGLE FLOOR 120M
701574
BOOM DIAGONAL 120M YELLOW
701574
BOOM DIAGONAL 120M YELLOW
701582
701582SP
ADAPTER 120M TO 80M GREY
701605
701105SP
CLIMBING CURVED NET +1470 OLD FINNO
701660
701660SP
NET 1520x1105 (003850)
701666
701666SP
STEP 15x265x275 DARK GREY
701672
701448-604SP
SLIDE ELEMENT +2070 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702572
702572SP
HANDRAIL 120M SLIDE GREY
702700
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702722
NET 120M TUNNEL VERTICAL
Open substructure
702722SP
NET 120M TUNNEL VERTICAL
702792
707315SP
HAND GRIP Ø16 BLACK
702943
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
703160
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707201
STAIR +870 OLD GREY
Open substructure
707201
STAIR +870 OLD GREY
707202
STAIRS +1470 OLD GREY
707202
STAIRS +1470 OLD GREY
901782
901782SP
COVER BAR Ø33x810x324 GREY
901785
901785SP
BAR ELEMENT 120M GREY
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909521SP
BASE FOOT, L=700
909578
ATTACHMENT PIPE L270
909578
ATTACHMENT PIPE L270
007984
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
008002
P10500-604SP
WALL 120MD 45x680x1550 GREY
009331
707597-603
POST 140x140x450 WITH 8 GROOVES BROWN
007972
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
001826
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
007999
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
007983
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
002780
002780SP1
LATHS FOR OLD CURVED ROOF 002780 GREY
007978
707480
MAST 9700 METAL
007929
704868-607
ANCHOR 12x503x687 2015 RED
007998
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
008001
P10780-604SP
WALL 120M 45x1065x1101 LIGHT GREY
005275
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
006827
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
003974
707304SP
TELESCOPE
007987
007986SP
CLIMBING NET BOW BLUE (007987)
005282
707453-701SP
WINDOW PLAY PANEL 640x702 BLUE
001825
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005272
706766-701SP
LABYRINTH PLAY PANEL 640x702 BLUE
011925
002030SP
RUDDER YELLOW INCL FASTENING IRON
005273
706727-701SP
KIOSK PLAY PANEL 640x702 BLUE
007981
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005271
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
008000
P11478-604SP
WALL 120M WINDOW 45x1065x1101 GREY
007979
707481
MAST 10700 METAL
002927
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005285
005285SP
PLATFORM DESK
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SANTA MARIA (.dwg)

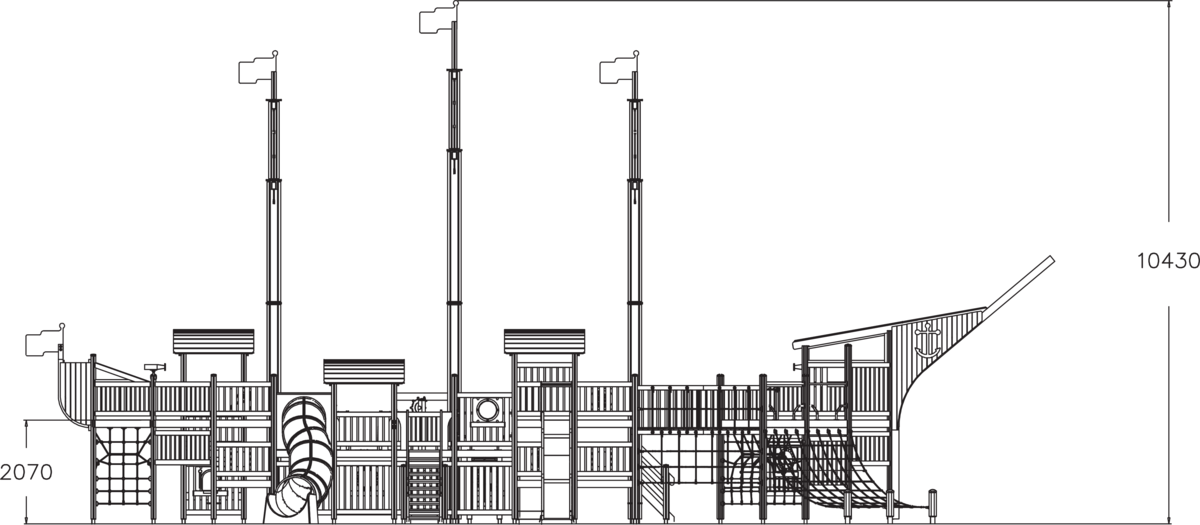

SIDE VIEW 120835 (.dwg)

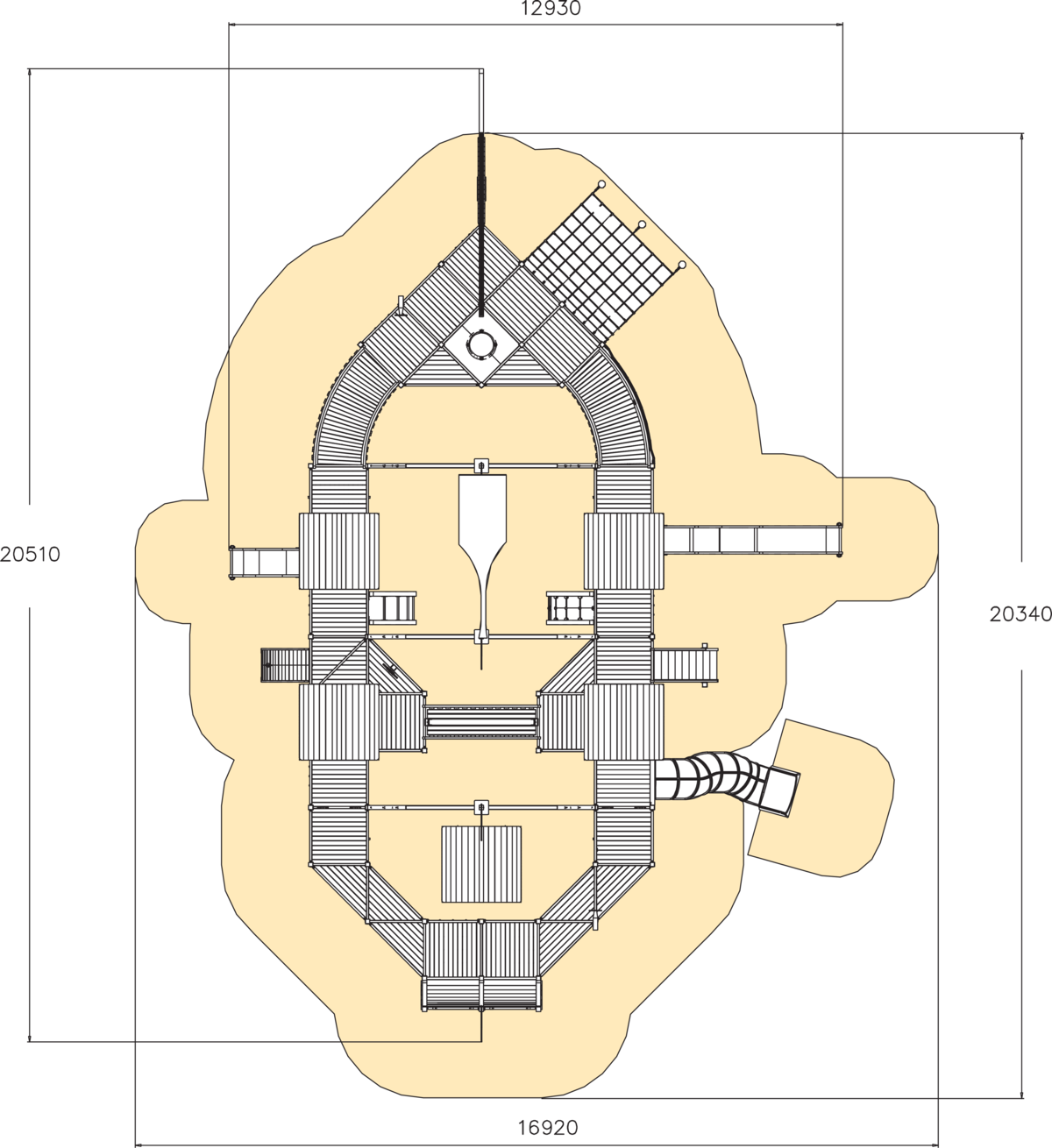

TOP VIEW 120835 (.dwg)
Technical information
User age
3
Max. free fall height, mm
2760
Impact area, m²
215.9
Product height, mm
10430
Product lenght, mm
12930
Product width, mm
20510
Height required, mm
10430
IMPACT AREA LENGTH, MM
16920
IMPACT AREA WIDTH, MM
20340
