Home
/
spareparts
Spare parts
120350M
Downloads
Spare parts
Downloads
Technical information
Spare part sets
001948SP1
STAIRS M120 +870 DEEP WOOD LIGHT BROWN, LAMINATE GREY
701745SP
ENTRY ELEMENT TRAIN 120M BLUE
004911SP
ENTRY PLATE 95x1100x1125 BLUE 120M
Original product structure
Spare parts
701416
701401SP
POST 95X95X1250 YELLOW
701428
701428SP
POST 93x93x2250 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701557
003880SP
FLOOR 120M
701582
701582SP
ADAPTER 120M TO 80M GREY
701732
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701741
701741SP
LOCOMOTIVE RING Ø570 (003347)
701746
TUBE TUNNEL 120M
Open substructure
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702572
702572SP
HANDRAIL 120M SLIDE GREY
702950
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702971
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707201
STAIR +870 OLD GREY
Open substructure
707201
STAIR +870 OLD GREY
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909521SP
BASE FOOT, L=700
002780
002780SP1
LATHS FOR OLD CURVED ROOF 002780 GREY
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SIDE VIEW 120350M (.dwg)
TOP VIEW 120350M (.dwg)
VETURI (.dwg)

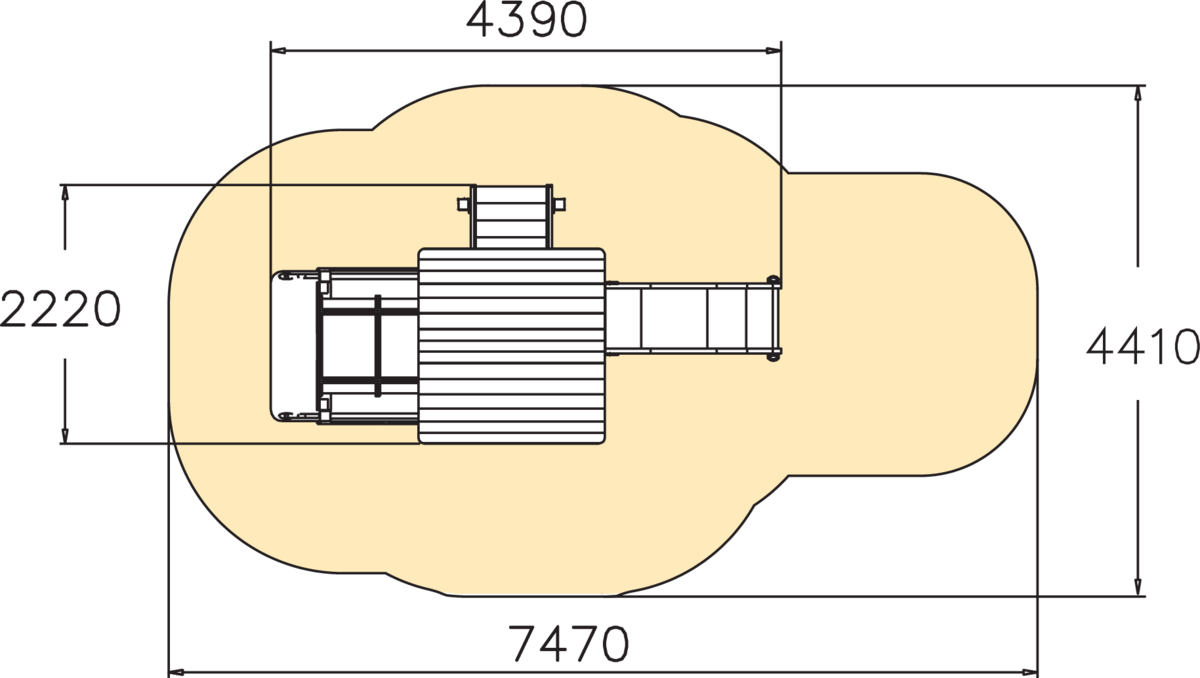

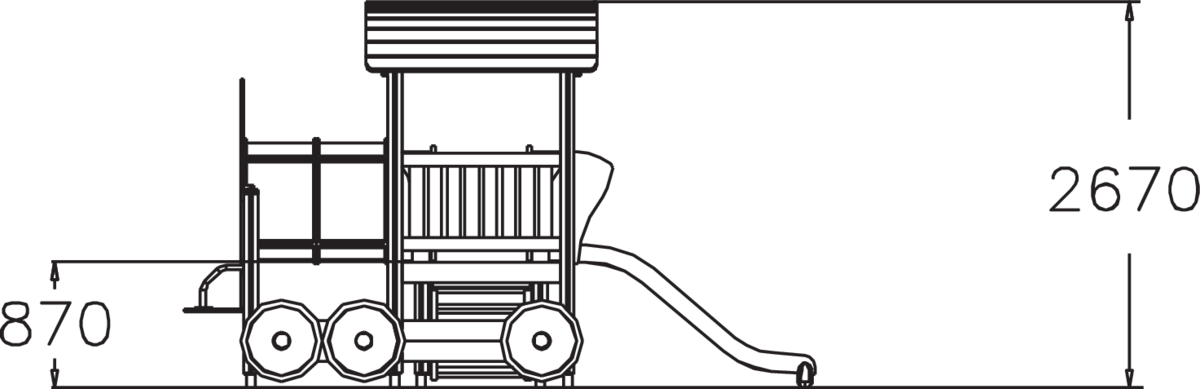

Technical information
User age
2
Max. free fall height, mm
1000
Impact area, m²
25.4
Product height, mm
2670
Product lenght, mm
4390
Product width, mm
2220
Height required, mm
2670
IMPACT AREA LENGTH, MM
7470
IMPACT AREA WIDTH, MM
4410
