Home
/
spareparts
Spare parts
120130M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701060
BRIDGE 2400 DUCKBOARD
Open substructure
701052
701053
701055
701060SP
BRIDGE 2400 DUCKBOARD 80M (rail grey, net blue)
706453-701SP
STEP 15x145x600 BLUE
707255-606SP
RAIL 45x120x2480 LIGHT GREY
701055SP
HANDRAIL NET 2375x700 120M BLUE
701105
NET RAMP
Open substructure
701100
701105SP
CLIMBING CURVED NET +1470 OLD FINNO
701100SP
NET 1455x505 CURVED BLUE
701283
701283SP
NET 001823 1155x1155
701325
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701428
701428SP
POST 93x93x2250 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701450
701450SP
ROOF 120M DIAMOND
701478
701478SP
BOOM 45x145x724 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701498
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701553
701553-705SP
RAIL 80M SLIDE GREY
701557
003880SP
FLOOR 120M
701581
FLOOR 80M/120M
701581
FLOOR 80M/120M
701582
701582SP
ADAPTER 120M TO 80M GREY
701591
706746-607SP
WALL WOOD 80M 45x640x701 RED
701594
005061SP
FIREMAN BAR +1470, 120M
701606
DEEP FOUNDATION FOOT
701606
DEEP FOUNDATION FOOT
701624
701624SP
SAFETY PLATFORM ( 2016 ) 120M GREY
701672
701448-604SP
SLIDE ELEMENT +2070 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702750
907701-216SP
HAND GRIP 40x545x114 GRAY
702899
907701-216SP
HAND GRIP 40x545x114 GRAY
702946
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901600
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901782
901782SP
COVER BAR Ø33x810x324 GREY
901785
901785SP
BAR ELEMENT 120M GREY
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
Downloads
ACTIVITY TOWER (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

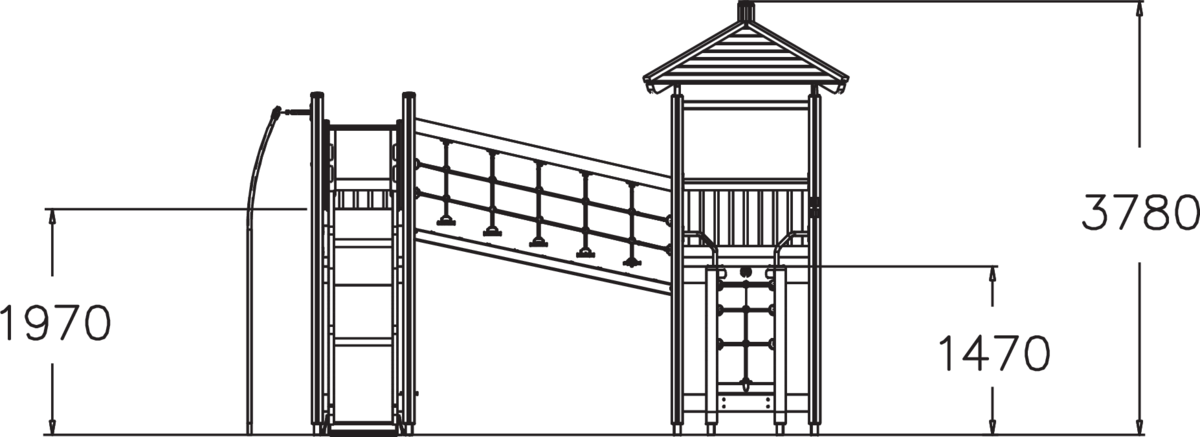

SIDE VIEW 120130M (.dwg)

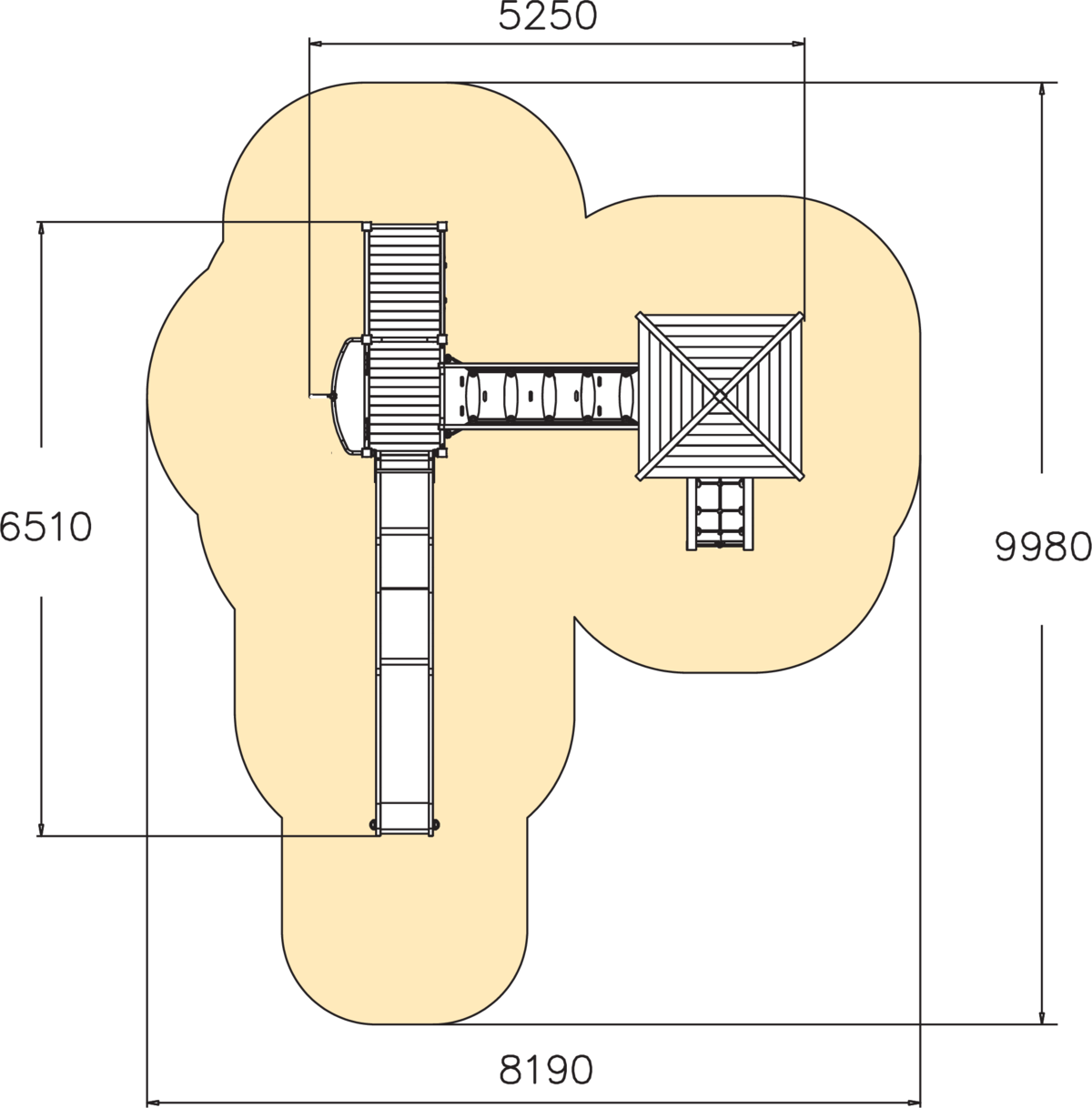

TOP VIEW 120130M (.dwg)
Technical information
User age
4
Max. free fall height, mm
1970
Impact area, m²
51.4
Product height, mm
3740
Product lenght, mm
5250
Product width, mm
6510
Height required, mm
3780
IMPACT AREA LENGTH, MM
8190
IMPACT AREA WIDTH, MM
9980
