Home
/
spareparts
Spare parts

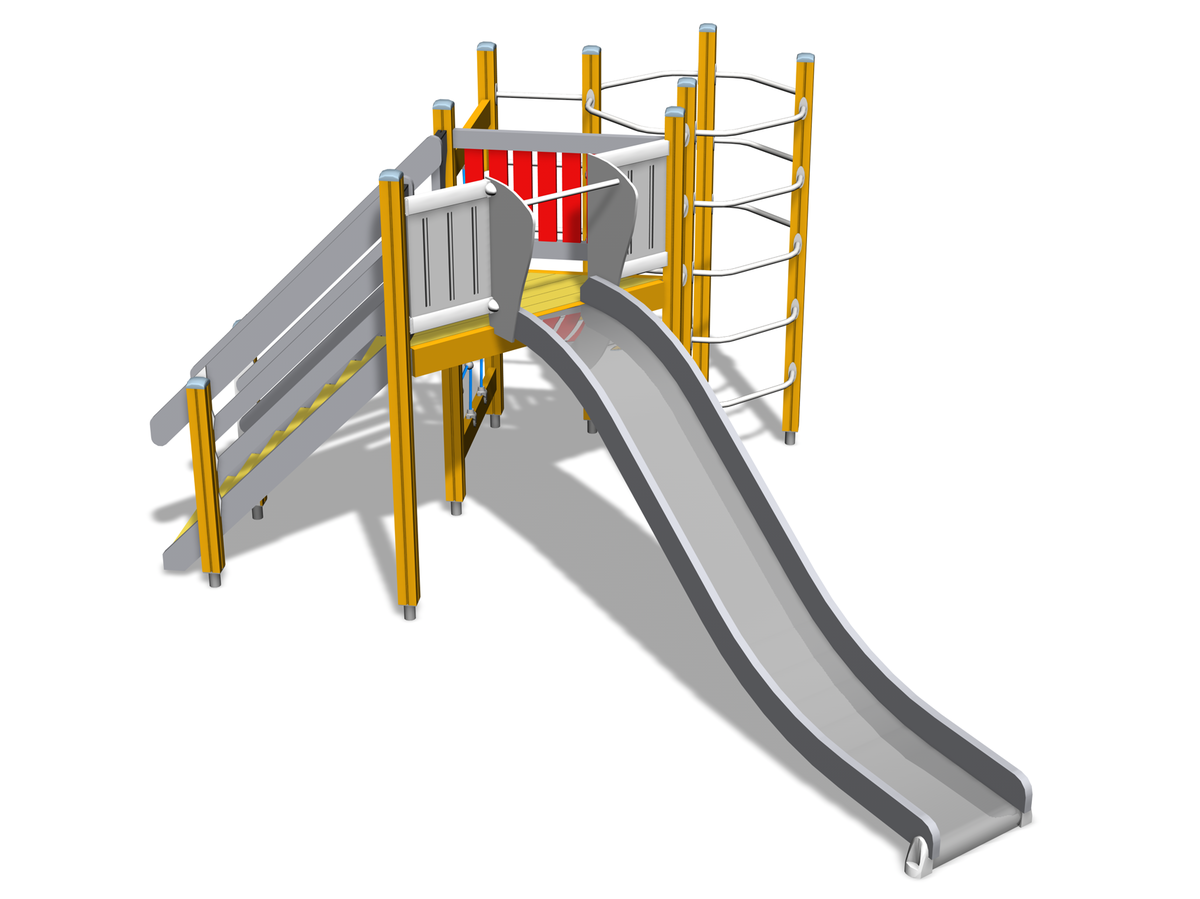

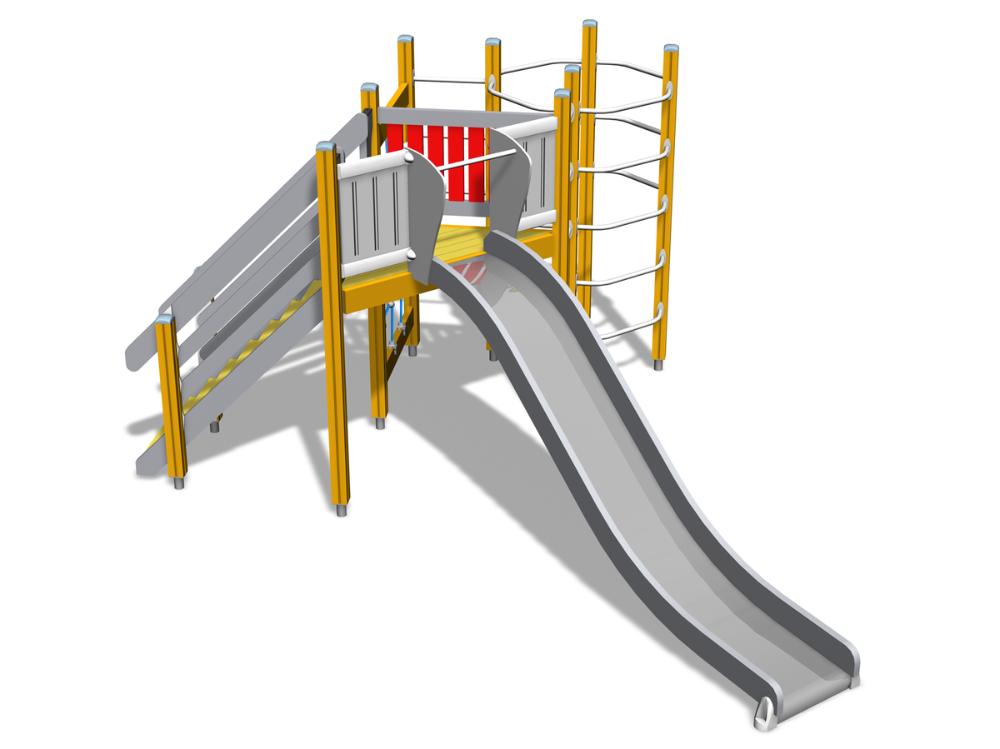

120115M
Downloads
Spare parts
Downloads
Technical information
Spare part sets
001949SP1
STAIRS M120 +1470 DEEP WOOD BROWN, LAMINATE GREY
Original product structure
Spare parts
701428
701428SP
POST 93x93x2250 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701569
003886SP
TRIANGLE FLOOR 120M
701574
BOOM DIAGONAL 120M YELLOW
701574
BOOM DIAGONAL 120M YELLOW
701582
701582SP
ADAPTER 120M TO 80M GREY
701623
701623SP
NET 1105x1510 FRAME BLUE
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
703414
703414SP
RAIL 120MDL SLIDE GREY
707202
STAIRS +1470 OLD GREY
707202
STAIRS +1470 OLD GREY
901790
HORIZONTAL BAR, 50x130x505
901790
HORIZONTAL BAR, 50x130x505
901792
901792SP
BAR ELEMENT, CURVED 550x550 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
707145-604
POST 43x93x717 GREY STAIRS 20
707145-604
POST 43x93x717 GREY STAIRS 20
707192-604
STAIR ELEMENT +1470 GREY
707192-604
STAIR ELEMENT +1470 GREY
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
Downloads
ACTIVITY TOWER (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

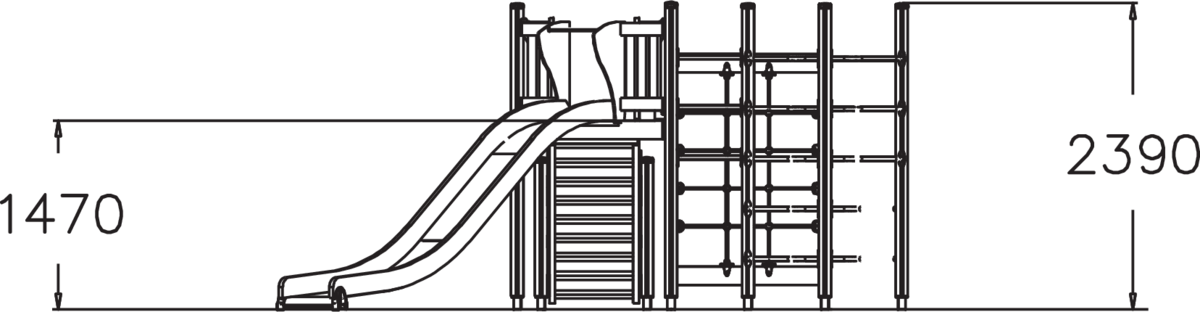

SIDE VIEW 120115M (.dwg)

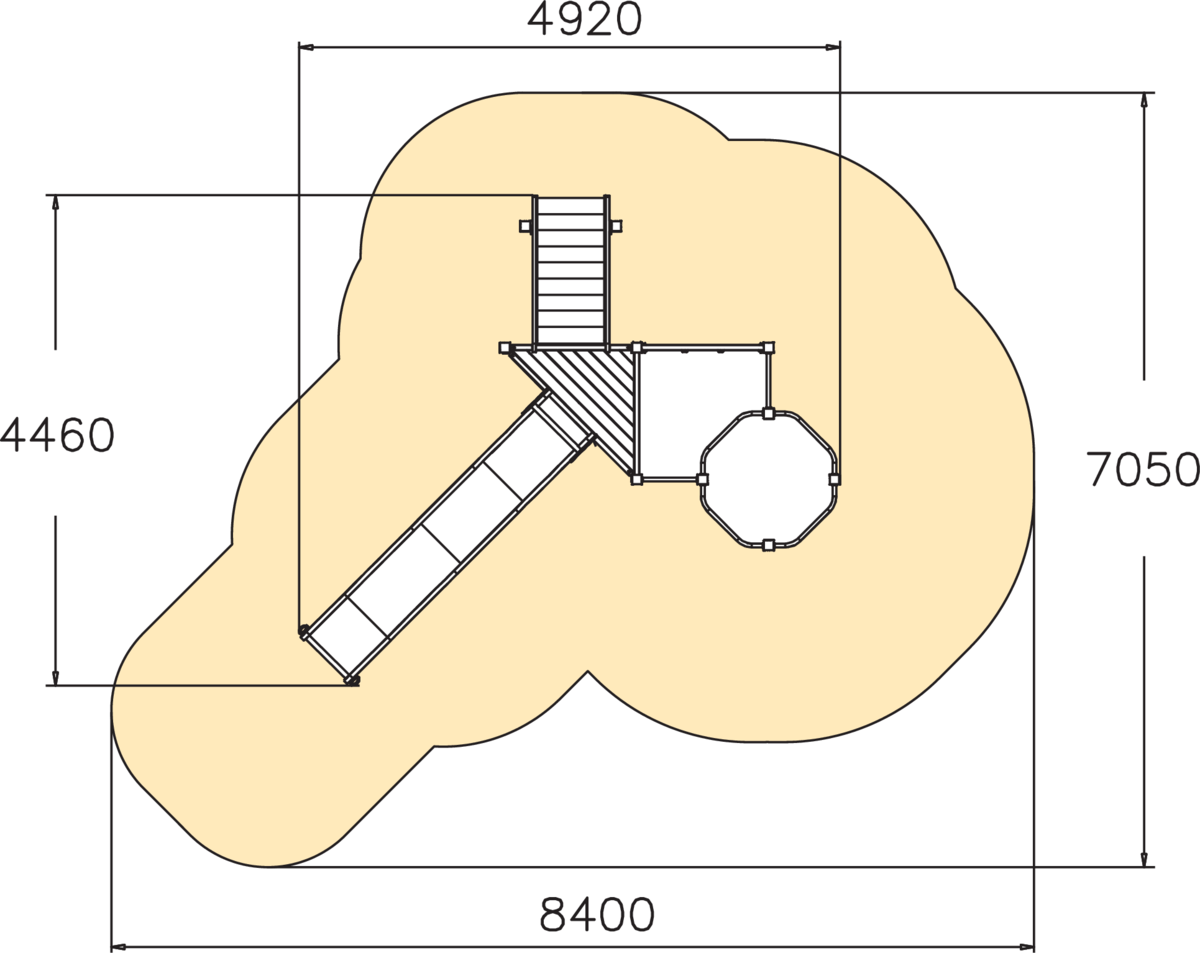

TOP VIEW 120115M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1990
Impact area, m²
37.9
Product height, mm
2390
Product lenght, mm
4920
Product width, mm
4460
Height required, mm
3620
IMPACT AREA LENGTH, MM
8400
IMPACT AREA WIDTH, MM
7050
