Home
/
spareparts
Spare parts
120054M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701052
706453-701SP
STEP 15x145x600 BLUE
701340
706462-301SP
CLIMBING ELEMENT +1470 80M/120M BLUE
701428
701428SP
POST 93x93x2250 YELLOW
701437
701437SP
POST 95x95x3450 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701581
FLOOR 80M/120M
701581
FLOOR 80M/120M
701591
706746-607SP
WALL WOOD 80M 45x640x701 RED
701594
005061SP
FIREMAN BAR +1470, 120M
701606
DEEP FOUNDATION FOOT
701606
DEEP FOUNDATION FOOT
701627
CLIMBING ELEMENT 1387X1020X325 ARCHED HANDLE
Open substructure
706475-604SP
CLIMBING ELEMENT 1387x1020x325 GREY
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702572
702572SP
HANDRAIL 120M SLIDE GREY
901596
SLIDE BAR 90x90x2090
901596
SLIDE BAR 90x90x2090
901782
901782SP
COVER BAR Ø33x810x324 GREY
901785
901785SP
BAR ELEMENT 120M GREY
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003894
003894SP
VANE FASTENER SYSTEM
007121
ROOSTER
007121
ROOSTER
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
MONITOIMIKESKUS (.dwg)

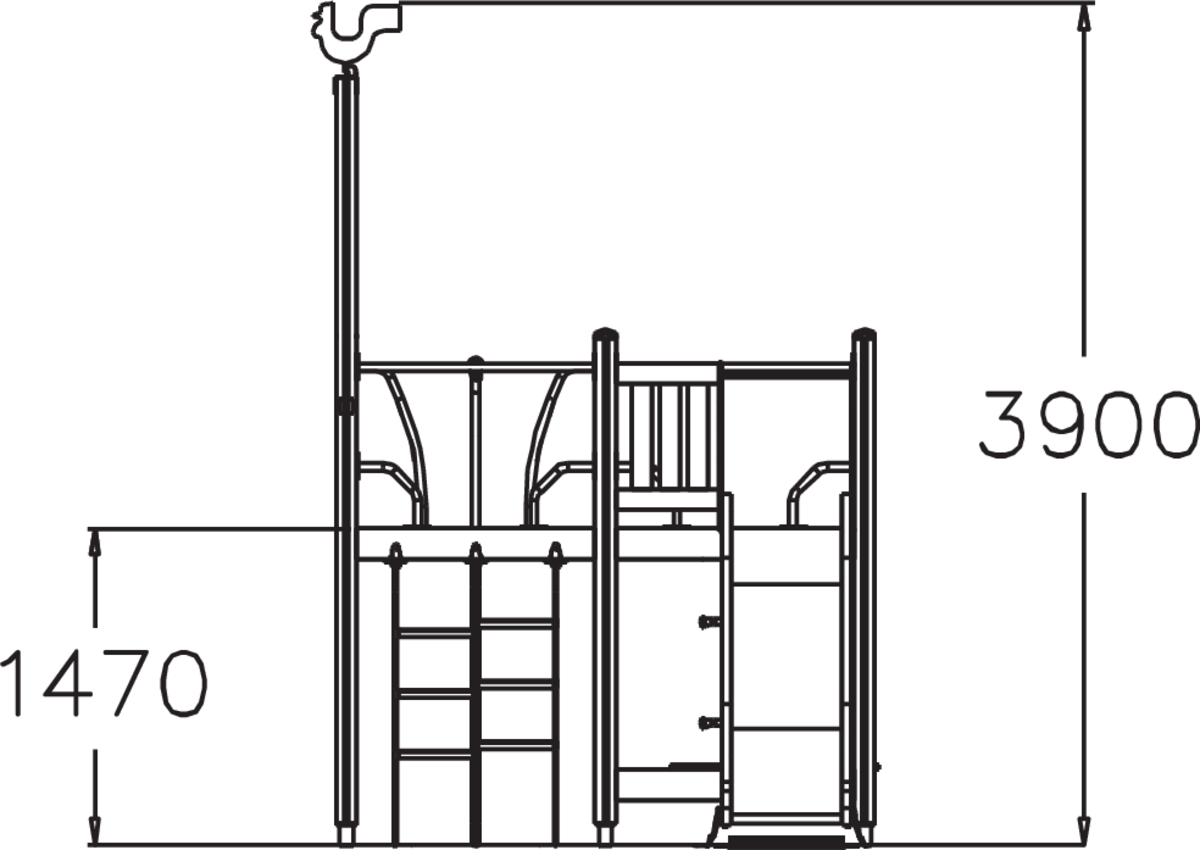

SIDE VIEW 120054M (.dwg)

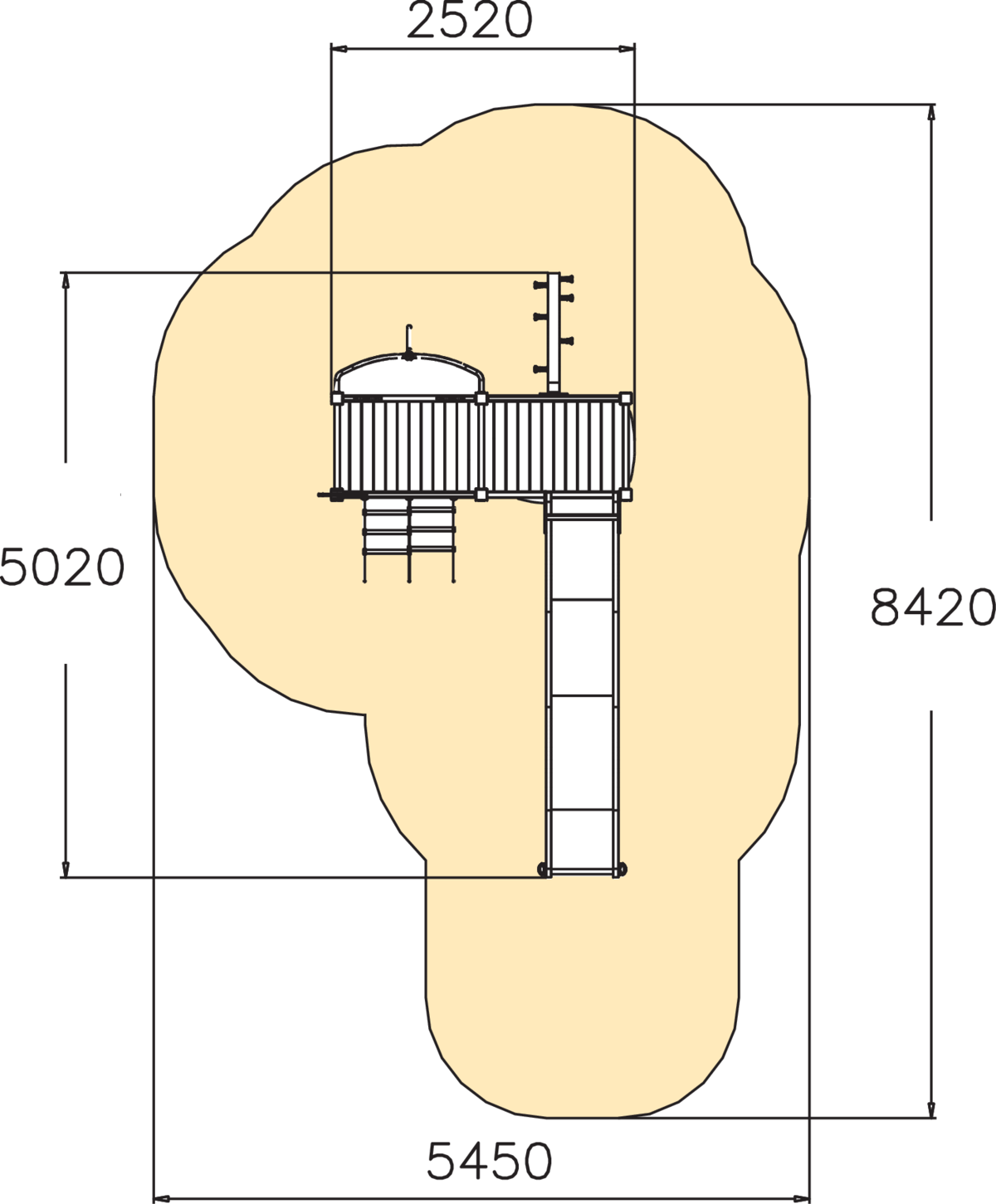

TOP VIEW 120054M (.dwg)
Technical information
User age
3
Max. free fall height, mm
1470
Impact area, m²
32.6
Product height, mm
3900
Product lenght, mm
2520
Product width, mm
5020
Height required, mm
3900
IMPACT AREA LENGTH, MM
5450
IMPACT AREA WIDTH, MM
8420
