Spare parts
120008M
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
700490
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701060
BRIDGE 2400 DUCKBOARD
Open substructure
701052
701053
701055
701060SP
BRIDGE 2400 DUCKBOARD 80M (rail grey, net blue)
706453-701SP
STEP 15x145x600 BLUE
707255-606SP
RAIL 45x120x2480 LIGHT GREY
701055SP
HANDRAIL NET 2375x700 120M BLUE
701095
CLIMBING ELEMENT + 1470 CURVED
Open substructure
701088
MAT, 45x645x1698
701293
701088-604SP1
CLIMBING ELEMENT CURVED +1480, with 120M bar element LIQUORICE GREY
701088
MAT, 45x645x1698
701293SP
CLIMBING ROPE L 2085 for wooden beam
701105
NET RAMP
Open substructure
701100
701105SP
CLIMBING CURVED NET +1470 OLD FINNO
701100SP
NET 1455x505 CURVED BLUE
701161
701161SP
BRIDGE 2400 PLANK 80 MODUL
701416
701401SP
POST 95X95X1250 YELLOW
701422
703327SP
POST 93x93x1650 YELLOW
701428
701428SP
POST 93x93x2250 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701437
701437SP
POST 95x95x3450 YELLOW
701450
701450SP
ROOF 120M DIAMOND
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701557
003880SP
FLOOR 120M
701569
003886SP
TRIANGLE FLOOR 120M
701574
BOOM DIAGONAL 120M YELLOW
701574
BOOM DIAGONAL 120M YELLOW
701582
701582SP
ADAPTER 120M TO 80M GREY
701594
005061SP
FIREMAN BAR +1470, 120M
701606
DEEP FOUNDATION FOOT
701606
DEEP FOUNDATION FOOT
701618
P11478-604SP
WALL 120M WINDOW 45x1065x1101 GREY
701623
701623SP
NET 1105x1510 FRAME BLUE
701624
701624SP
SAFETY PLATFORM ( 2016 ) 120M GREY
701666
701666SP
STEP 15x265x275 DARK GREY
701667
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701794
P10780-604SP
WALL 120M 45x1065x1101 LIGHT GREY
701796
P10475-604SP
WALL 45x1065x1101 DOOR GREY
701919
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702700
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702746
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702750
907701-216SP
HAND GRIP 40x545x114 GRAY
702972
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702973
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702976
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702977
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702978
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702979
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
703183
703183SP
HANDRAIL NET 2305x650
703414
703414SP
RAIL 120MDL SLIDE GREY
707201
STAIR +870 OLD GREY
Open substructure
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
901596
SLIDE BAR 90x90x2090
901596
SLIDE BAR 90x90x2090
901782
901782SP
COVER BAR Ø33x810x324 GREY
901785
901785SP
BAR ELEMENT 120M GREY
901792
901792SP
BAR ELEMENT, CURVED 550x550 GREY
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905812
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905822
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905829
905829SP
BASE MOD.STRAIGHT (SEE-THROUGH)
905850
BREAK PLATFORM
905850
BREAK PLATFORM
909491
EXTENSION FOOT 90x90x150
909491
EXTENSION FOOT 90x90x150
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
002779
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
002927
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
003550
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
003780
P10500-604SP
WALL 120MD 45x680x1550 GREY
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
003798
P10502-604SP
WALL 45x680x1101 WINDOW GREY
005273
706727-701SP
KIOSK PLAY PANEL 640x702 BLUE
005274
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
005275
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
005277
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
005278
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
005281
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
005285
005285SP
PLATFORM DESK
006854
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
LEIKKIKESKUS (.dwg)

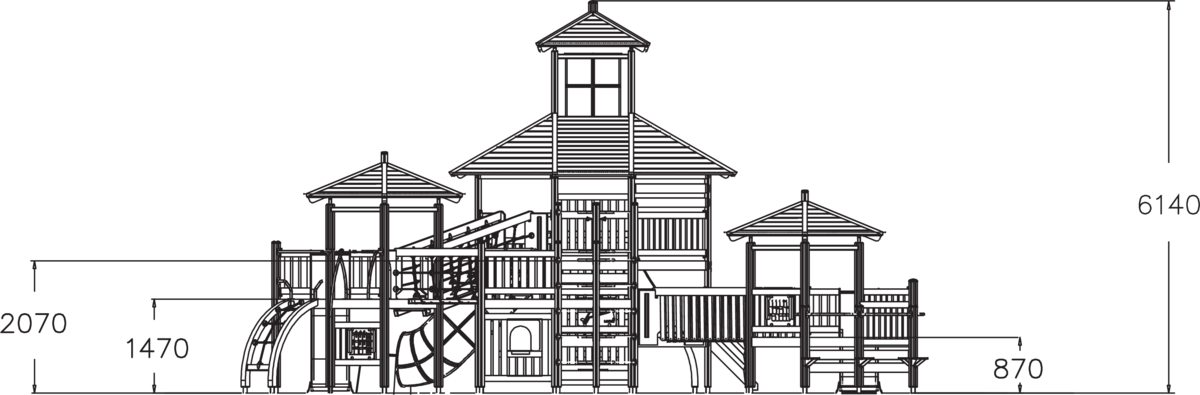

SIDE VIEW 120008M (.dwg)

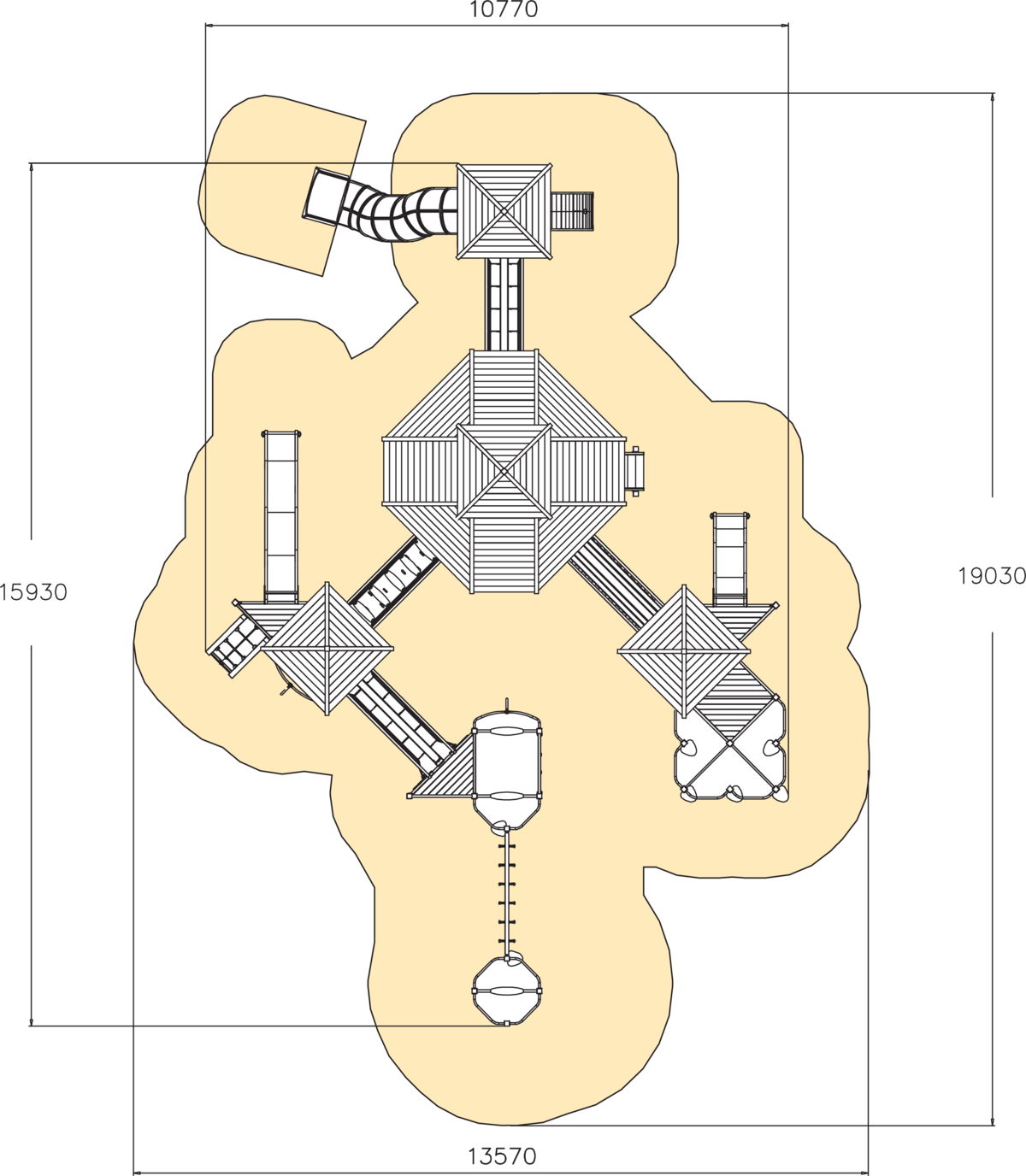

TOP VIEW 120008M (.dwg)
Technical information
User age
3
Max. free fall height, mm
2800
Impact area, m²
163.1
Product height, mm
6180
Product lenght, mm
10770
Product width, mm
15930
Height required, mm
6180
IMPACT AREA LENGTH, MM
13570
IMPACT AREA WIDTH, MM
19030
